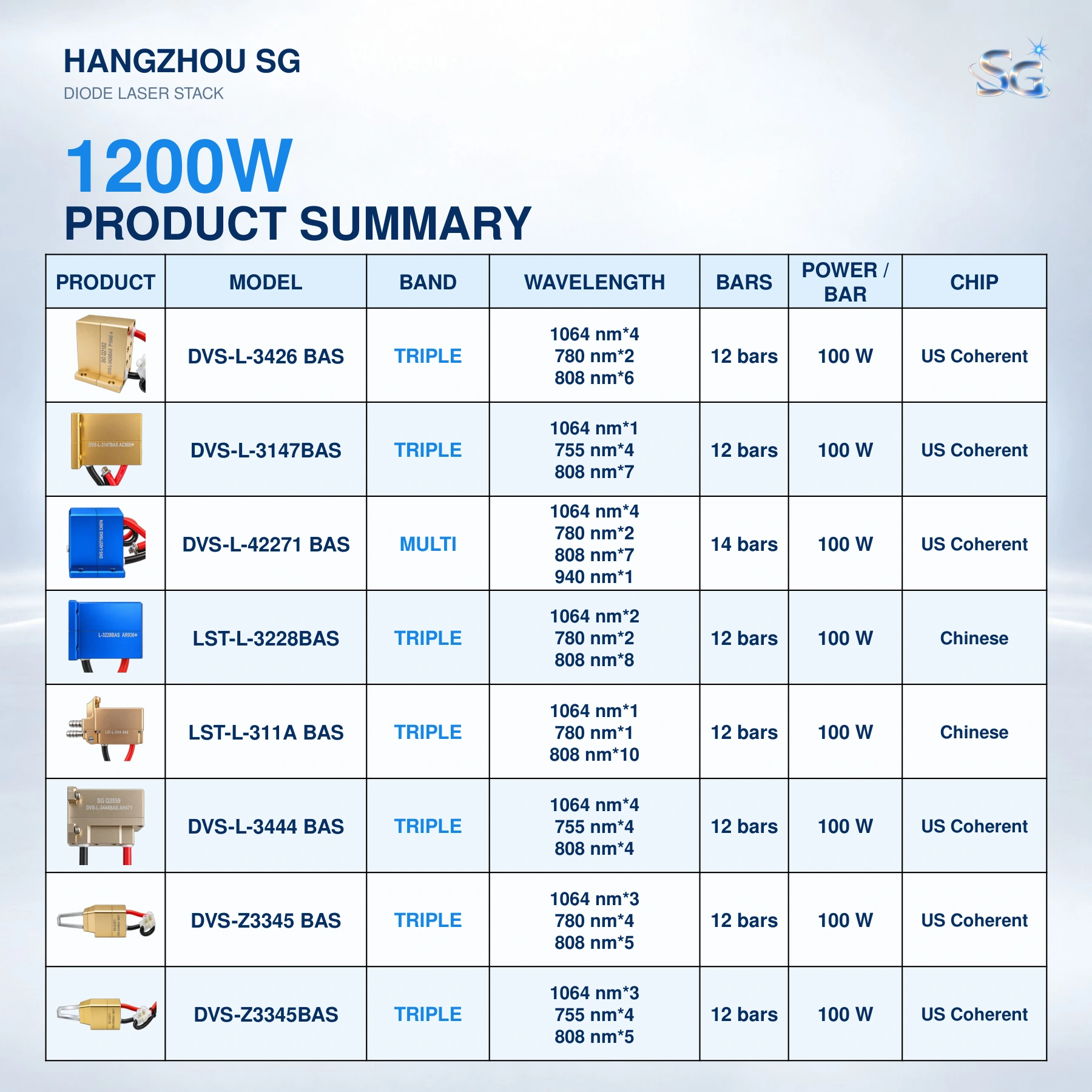

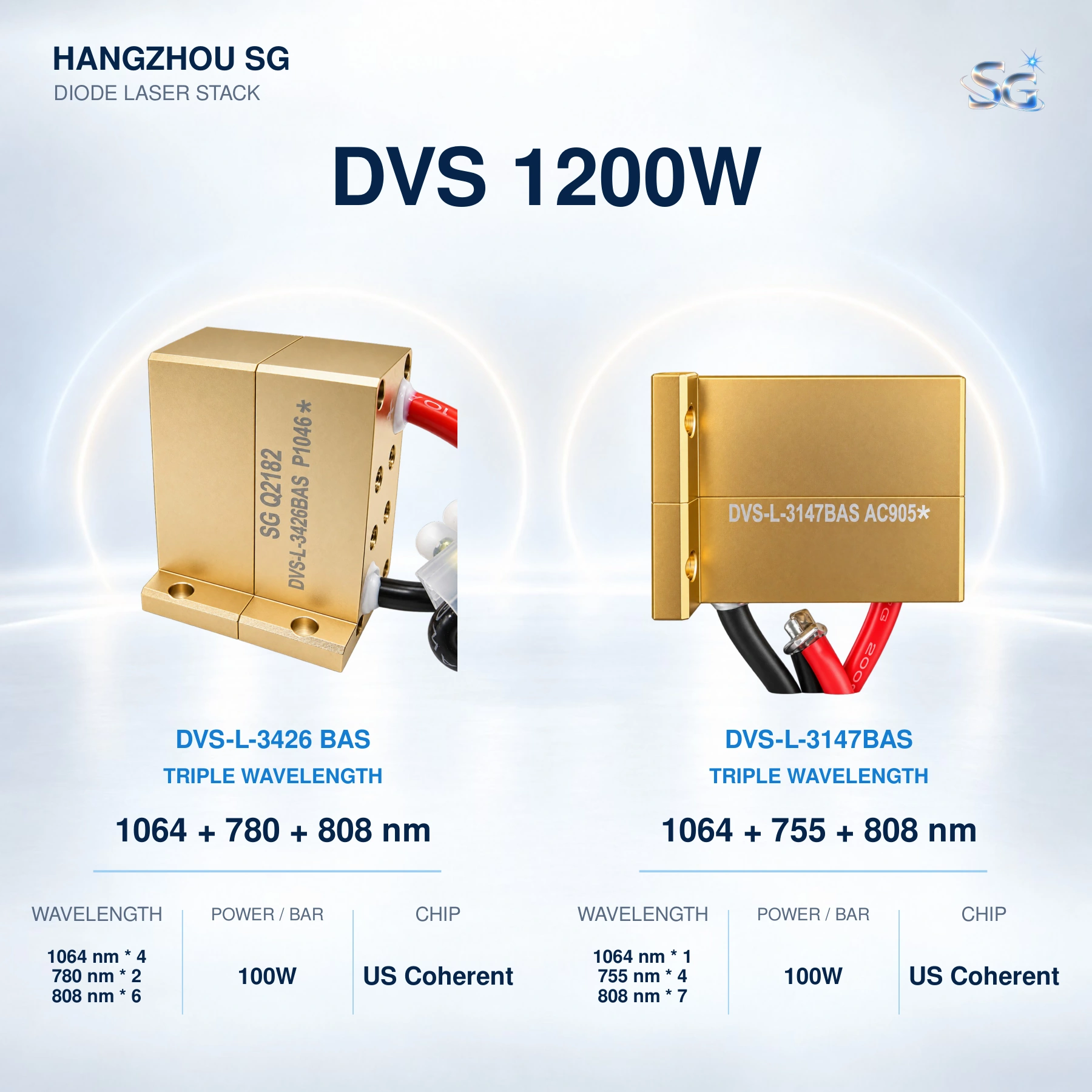

DVS-L-3426 BAS
Catalog page 4
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 4 780 nm * 2 808 nm * 6
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent
1200W Diode Laser Stacks
New 1200W configuration
Q2785
Unhoused 1200W diode laser stack. The photographed unit carries both the SG item marking Q2785 and the marking LT-00MH001200N.
- Optical power
- 1200W
- Wavelength
- 808 nm
- Bar count
- 12 bars
- Housing
- Bare module / no outer enclosure
- Marking in photo
- LT-00MH001200N
- Reference price
- USD 945 / unit
The reference price is based on a recent single-unit quotation dated 2026-10-13. Final pricing depends on quantity and delivery terms; no international freight is represented as included. The sales-SKU-to-manufacturer-model mapping is not independently confirmed beyond the markings visible on the photographed unit. Compatibility, drive current, cooling, FAC, dimensions, connector layout, taxes, freight and lead time must be confirmed before ordering. This page does not claim compatibility with any specific handpiece, driver or power supply.
Full catalog
Product names and specifications are also available as text below. The original catalog layout above is unchanged.
Product information and specifications (text)
DVS-L-3147BAS
Catalog page 4
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 1 755 nm * 4 808 nm * 7
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

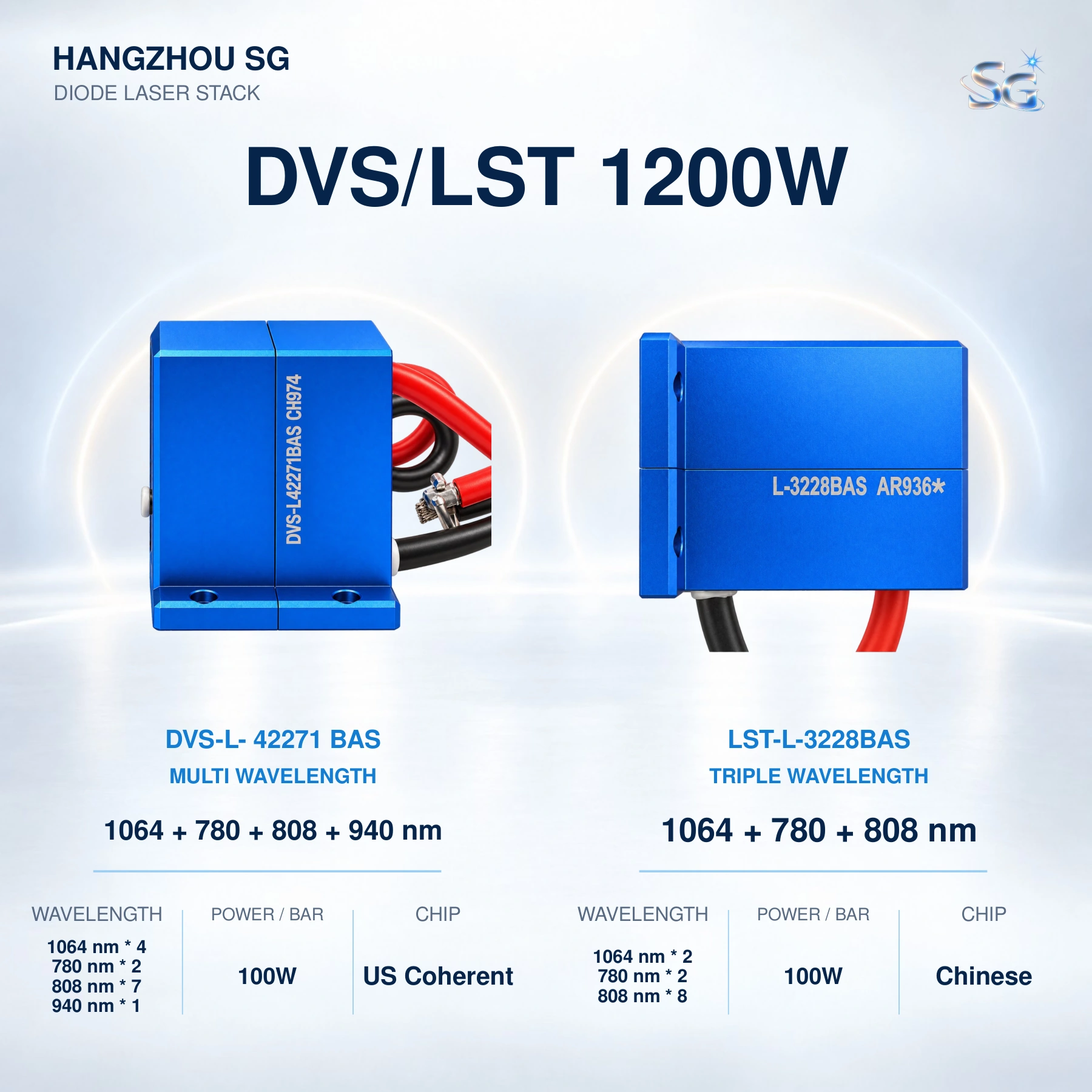

DVS-L- 42271 BAS
Catalog page 5
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 4 780 nm * 2 808 nm * 7 940 nm * 1
- Bars
- 14 bars
- Power / bar
- 100W
- Chip
- US Coherent
LST-L-3228BAS
Catalog page 5
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 2 780 nm * 2 808 nm * 8
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese

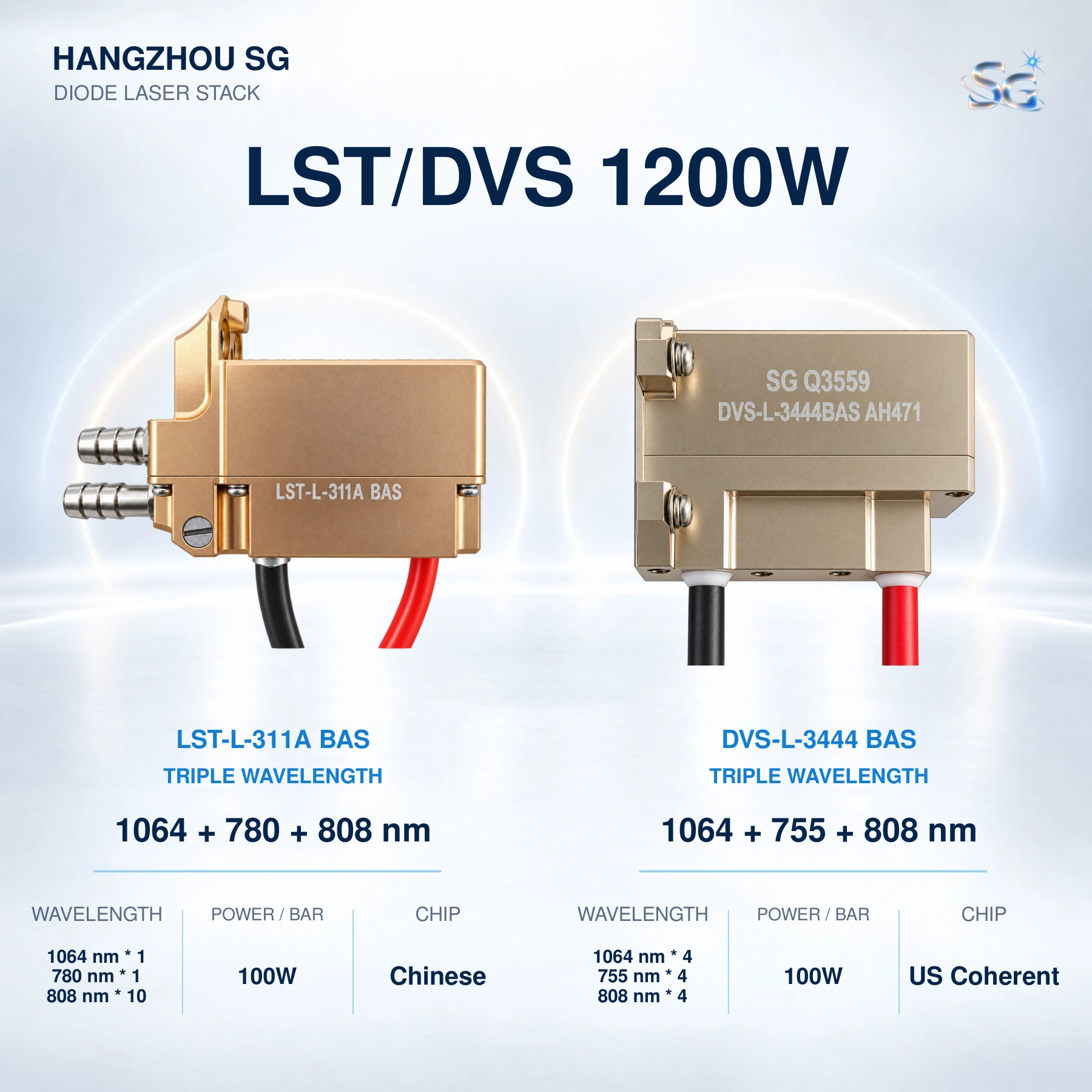

LST-L-311A BAS
Catalog page 6
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 1 780 nm * 1 808 nm * 10
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese
DVS-L-3444 BAS
Catalog page 6
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 4 755 nm * 4 808 nm * 4
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

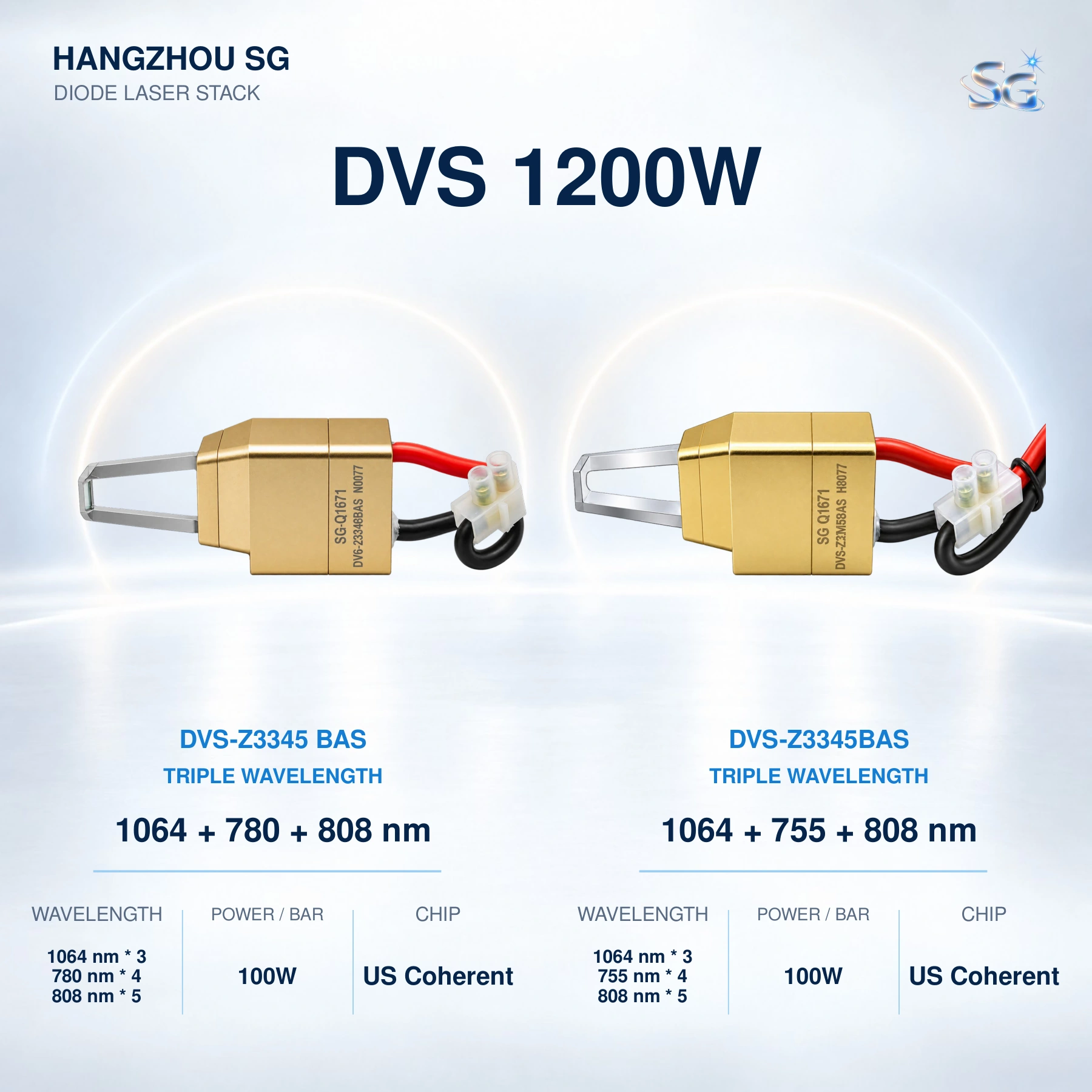

DVS-Z3345 BAS
Catalog page 7
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 3 780 nm * 4 808 nm * 5
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent
DVS-Z3345BAS
Catalog page 7
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 3 755 nm * 4 808 nm * 5
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

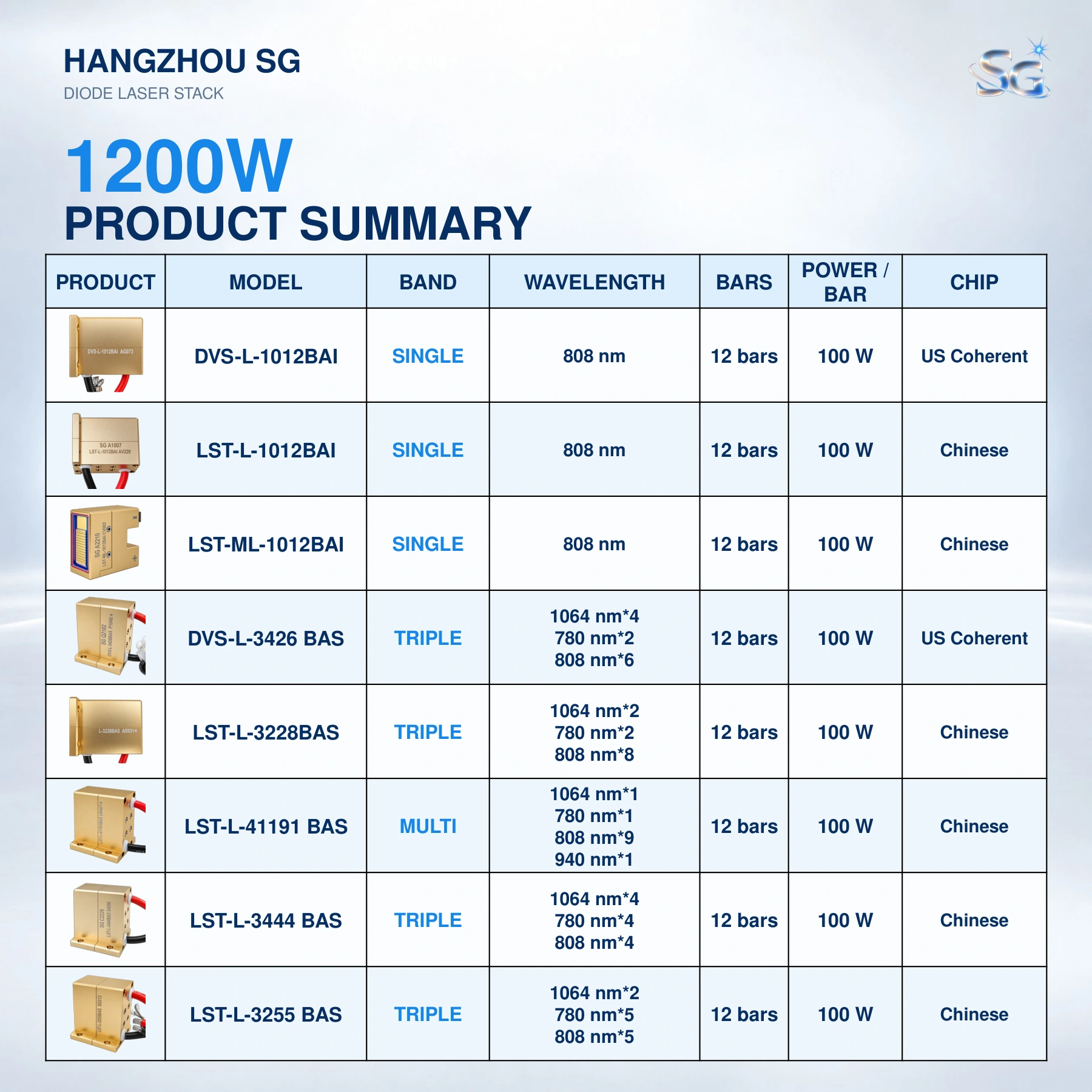

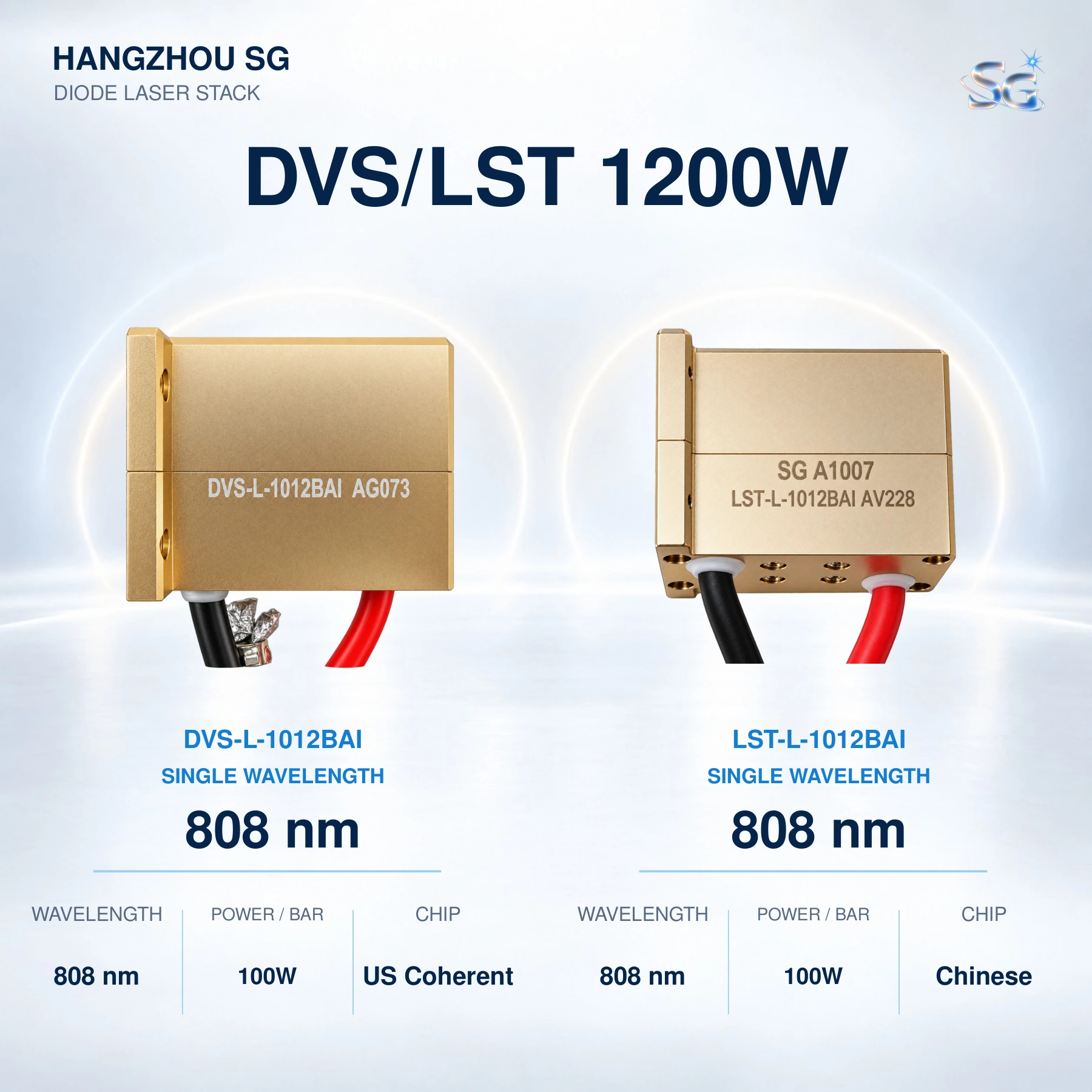

DVS-L-1012BAI
Catalog page 9
- Series
- 1200W
- Wavelength / bars
- 808 nm
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent
LST-L-1012BAI
Catalog page 9
- Series
- 1200W
- Wavelength / bars
- 808 nm
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese

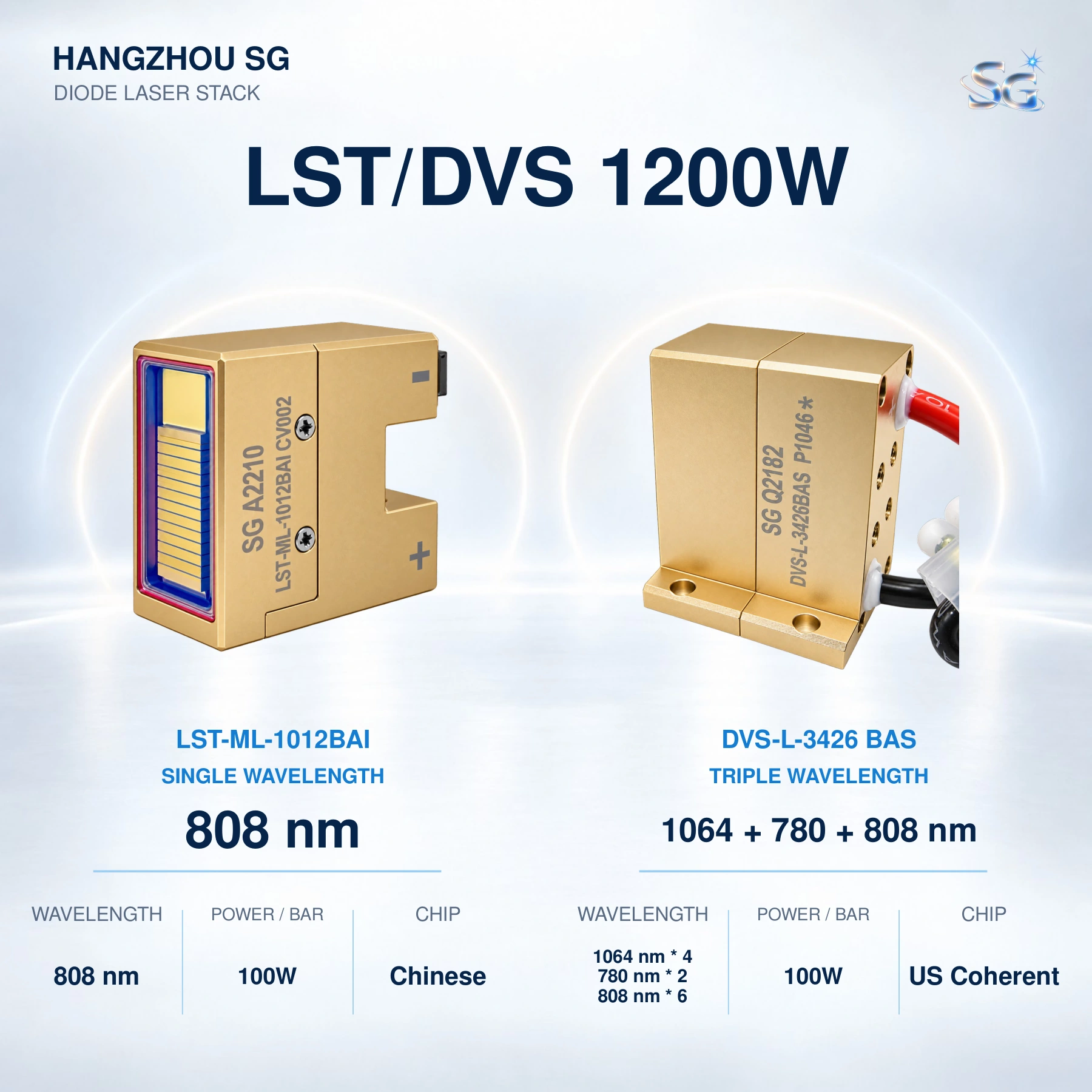

LST-ML-1012BAI
Catalog page 10
- Series
- 1200W
- Wavelength / bars
- 808 nm
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese
DVS-L-3426 BAS
Catalog page 10
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 4 780 nm * 2 808 nm * 6
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

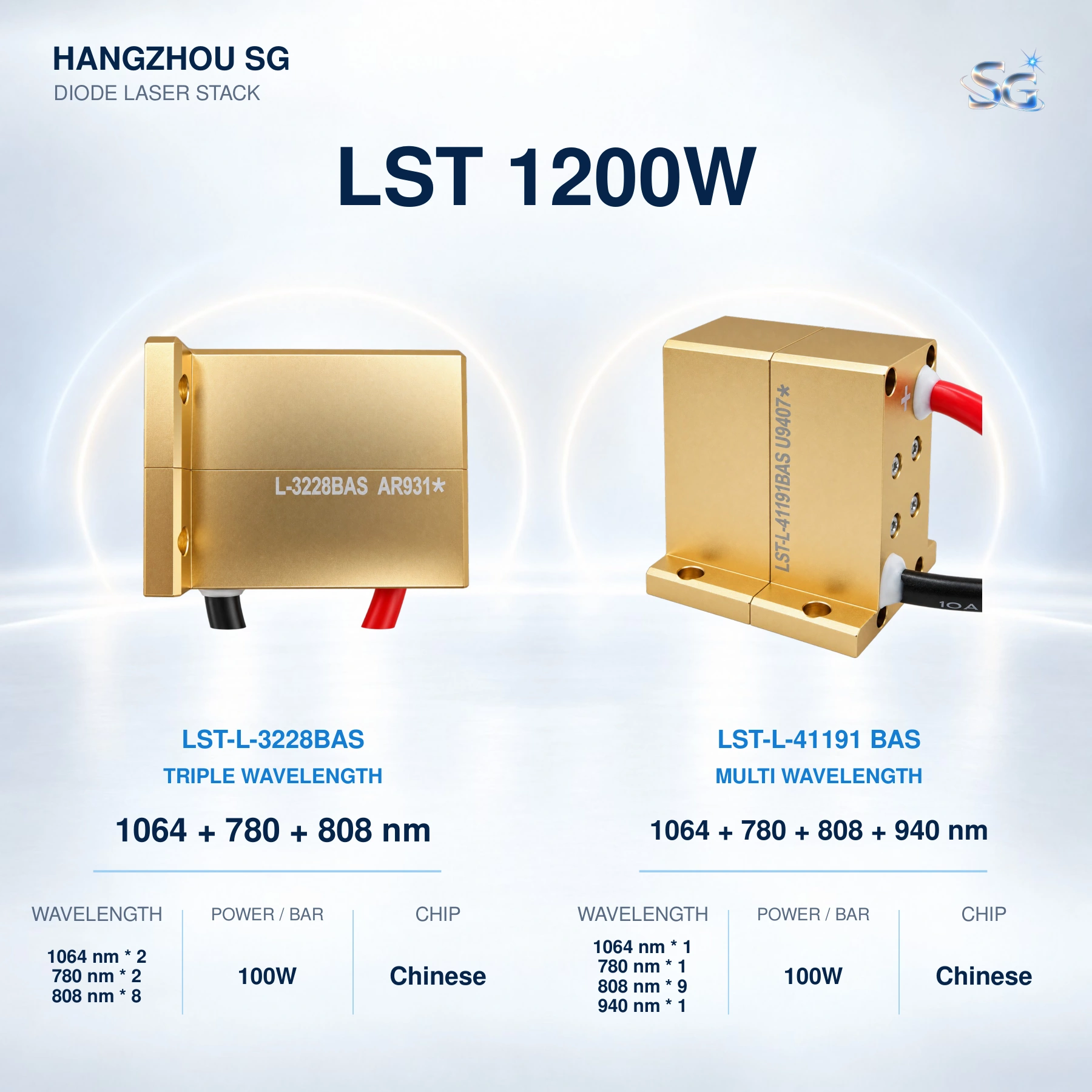

LST-L-3228BAS
Catalog page 11
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 2 780 nm * 2 808 nm * 8
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese
LST-L-41191 BAS
Catalog page 11
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 1 780 nm * 1 808 nm * 9 940 nm * 1
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese

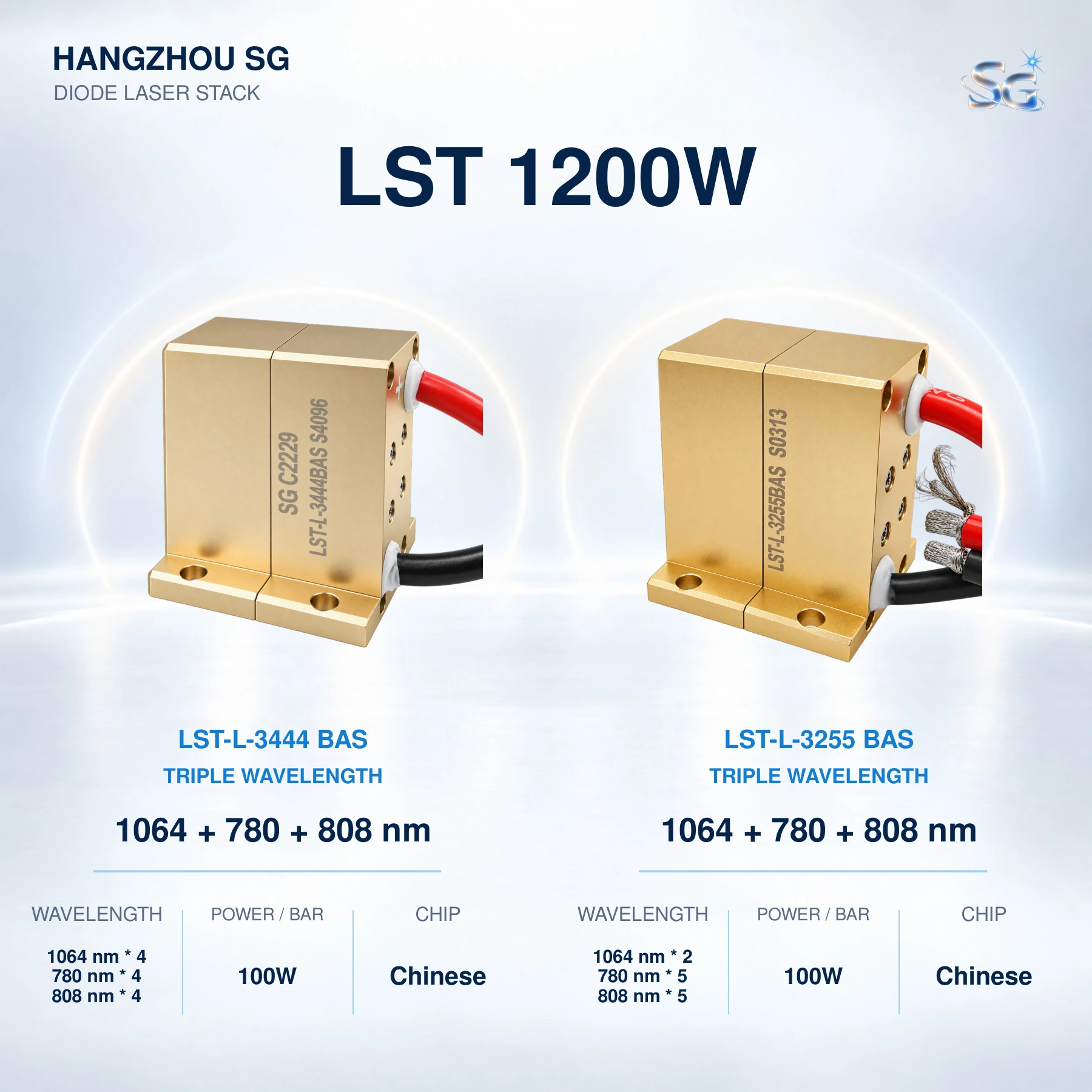

LST-L-3444 BAS
Catalog page 12
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 4 780 nm * 4 808 nm * 4
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese
LST-L-3255 BAS
Catalog page 12
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 2 780 nm * 5 808 nm * 5
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese

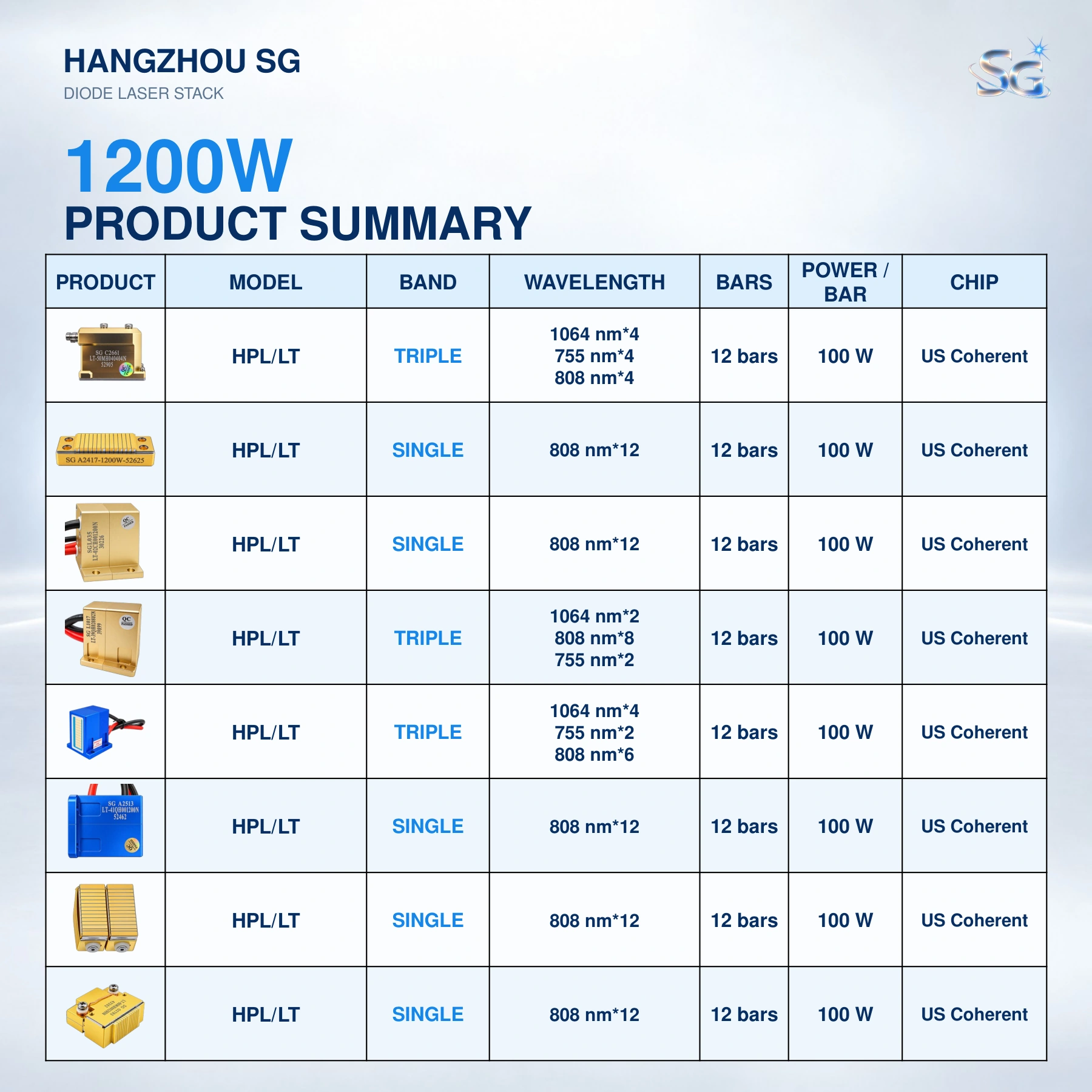

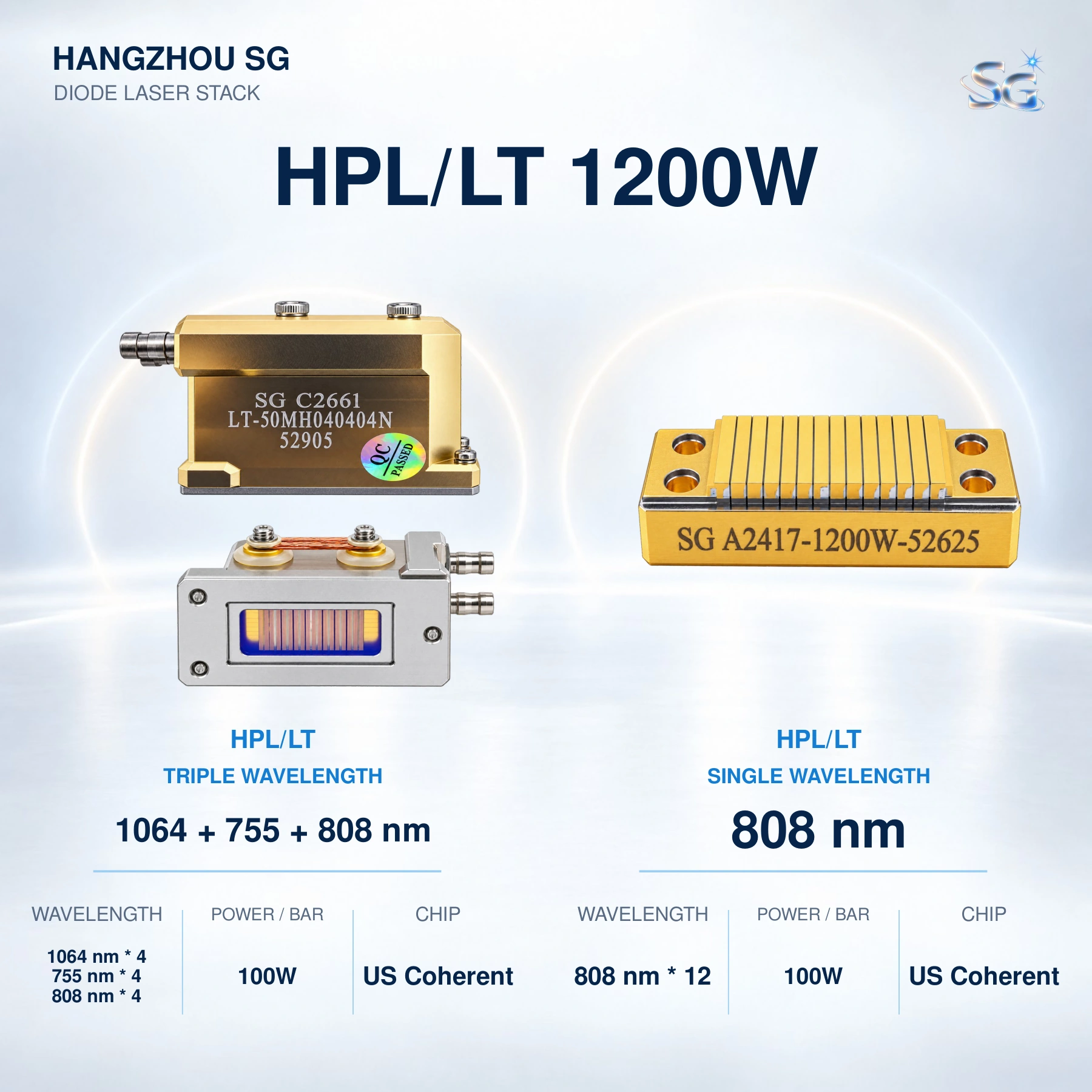

HPL/LT
Catalog page 14
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 4 755 nm * 4 808 nm * 4
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent
HPL/LT
Catalog page 14
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

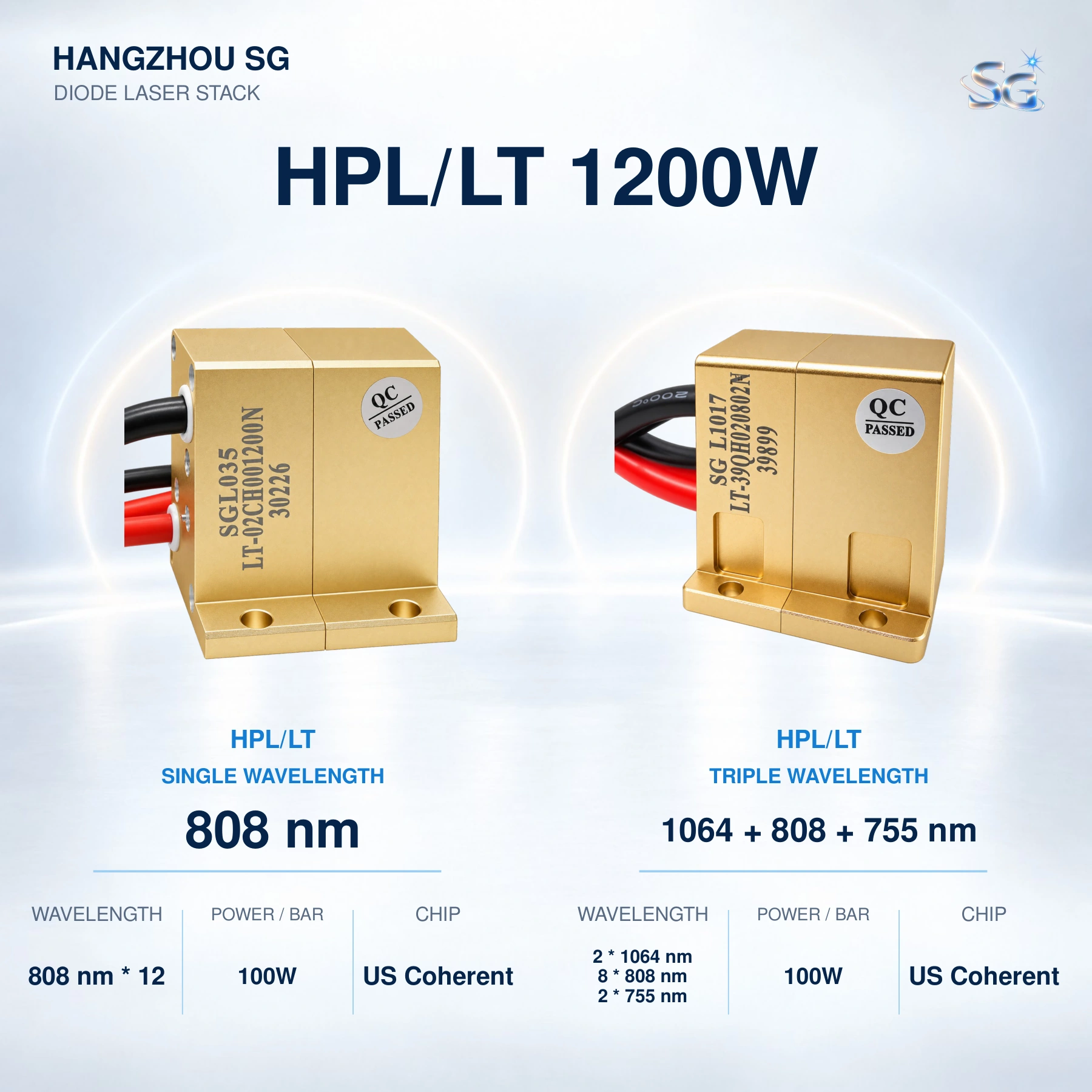

HPL/LT
Catalog page 15
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent
HPL/LT
Catalog page 15
- Series
- 1200W
- Wavelength / bars
- 2 * 1064 nm 8 * 808 nm 2 * 755 nm
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

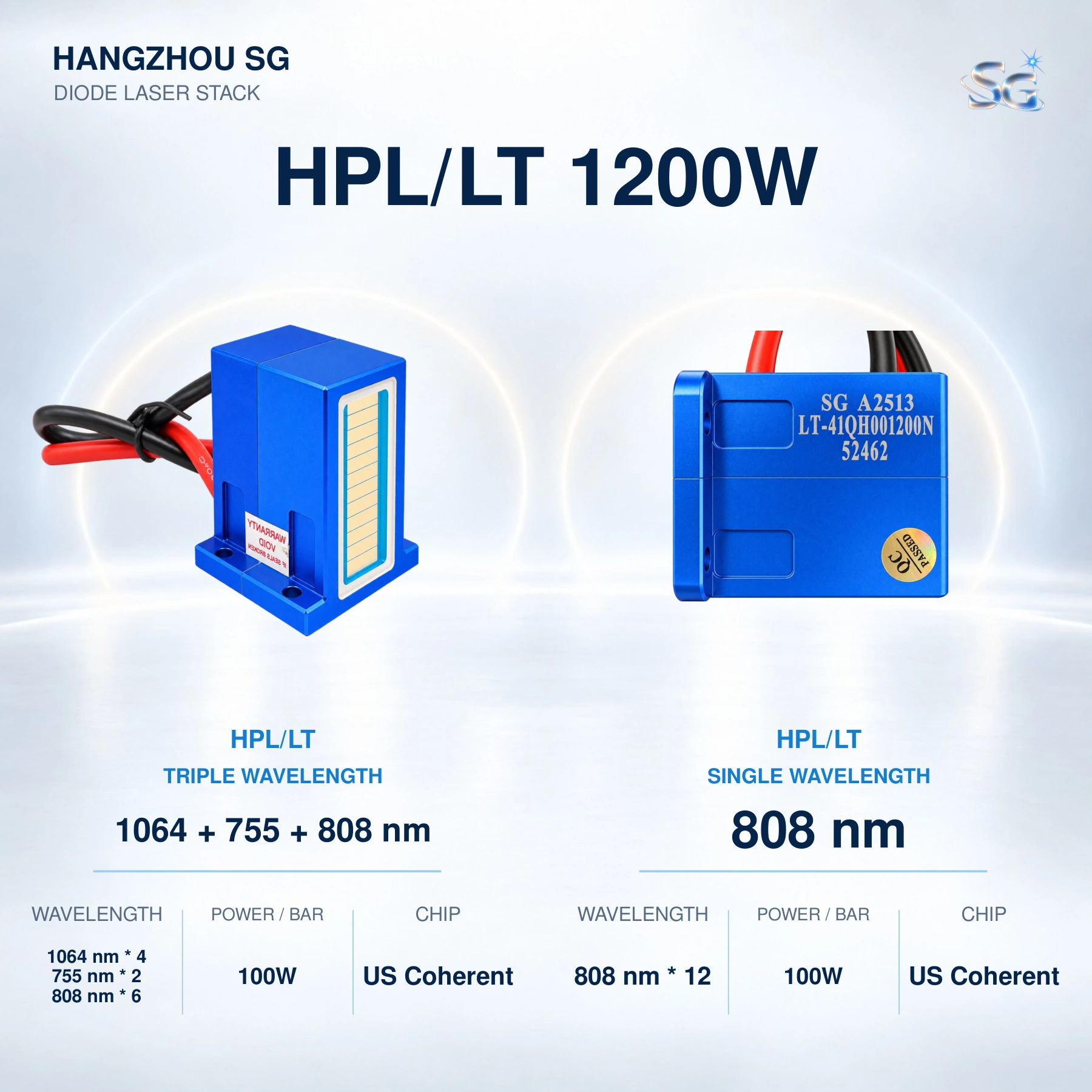

HPL/LT
Catalog page 16
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 4 755 nm * 2 808 nm * 6
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent
HPL/LT
Catalog page 16
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

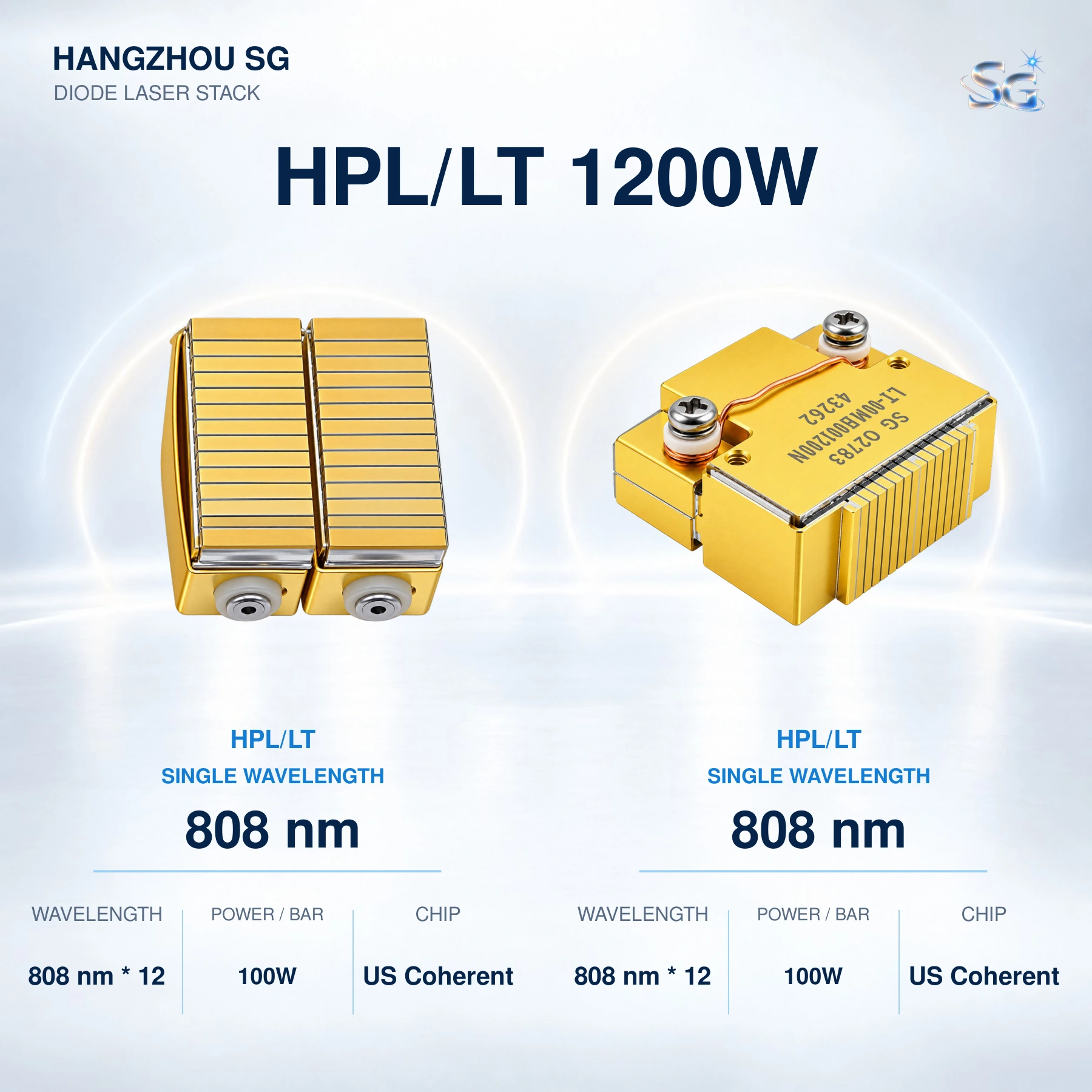

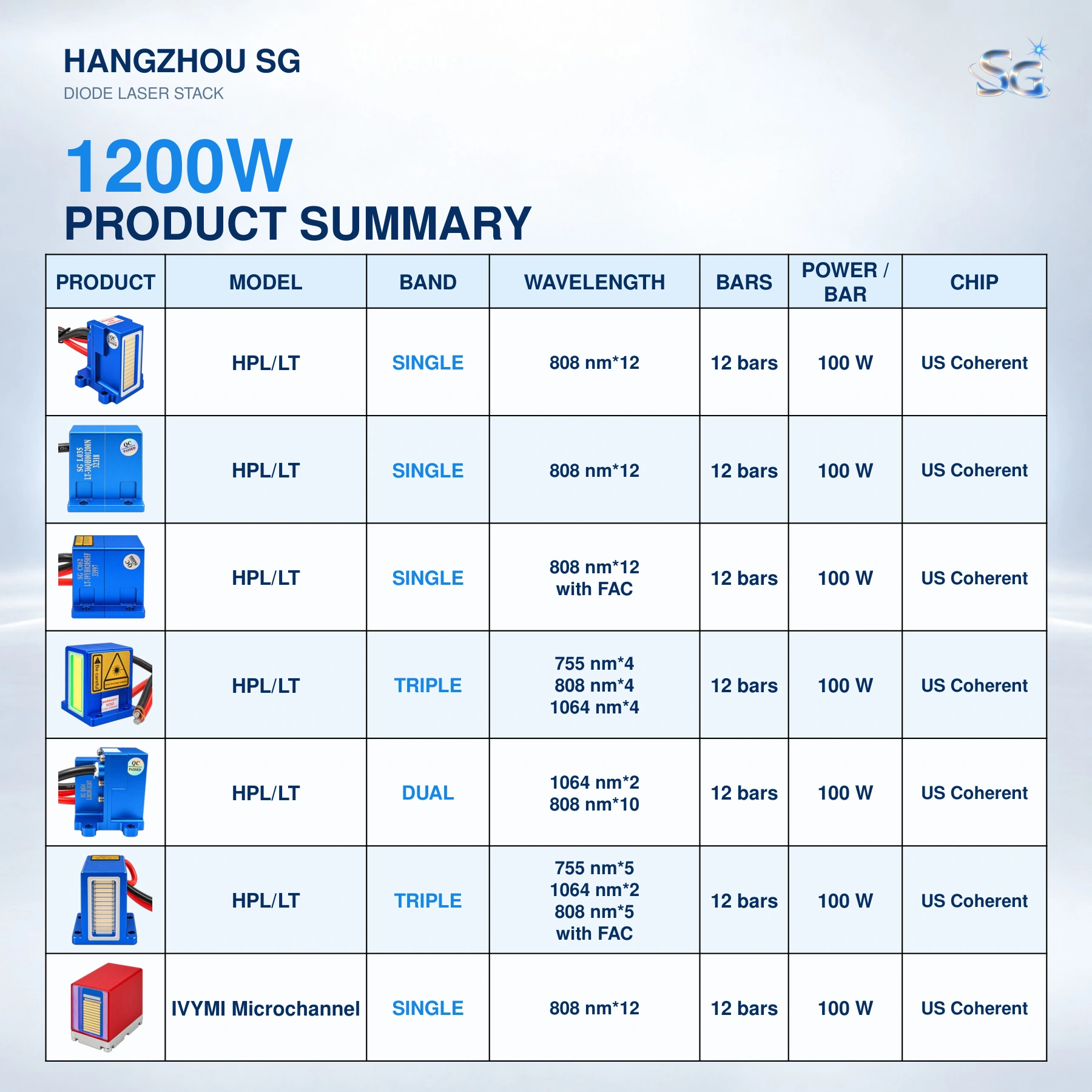

HPL/LT
Catalog page 17
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent
HPL/LT
Catalog page 17
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

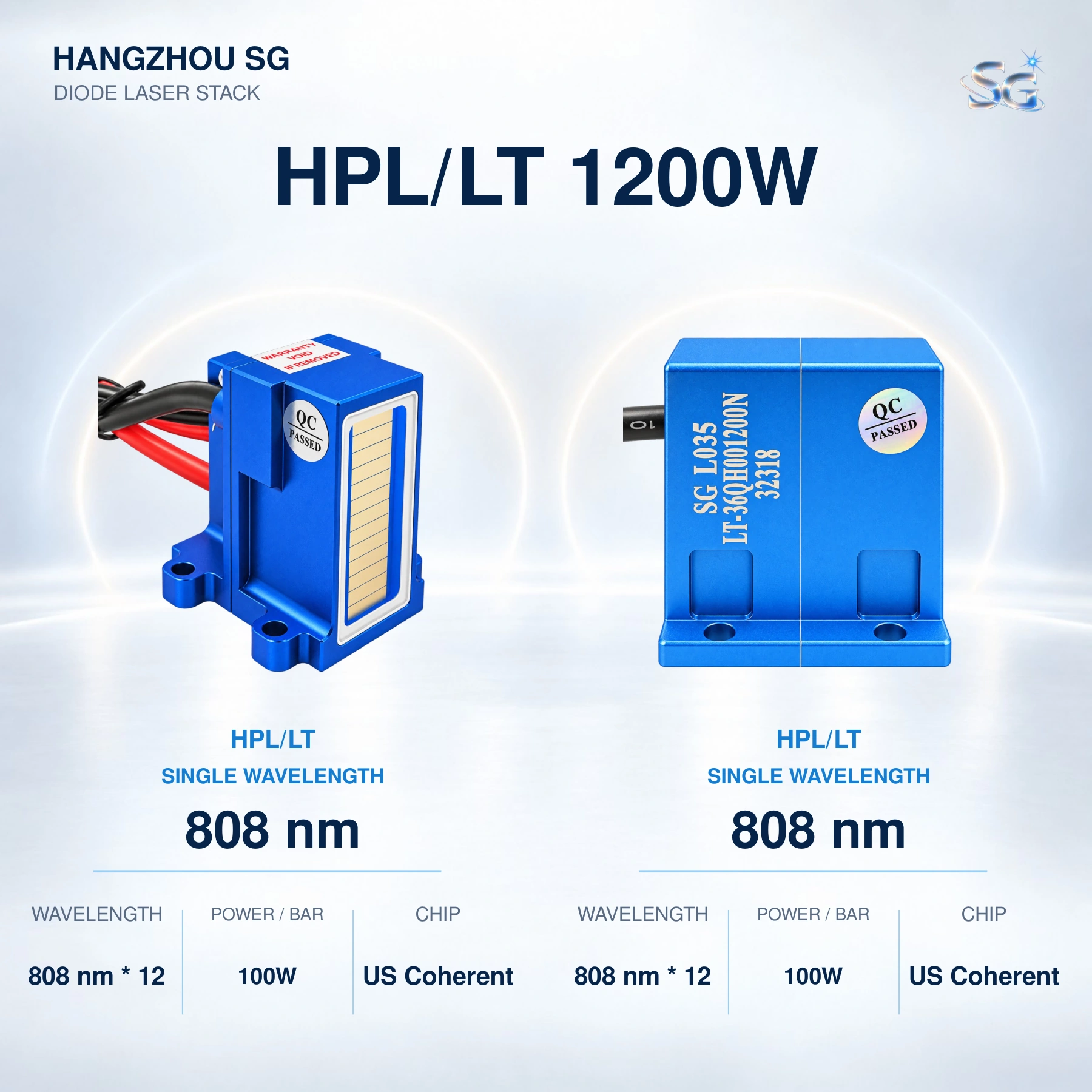

HPL/LT
Catalog page 19
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent
HPL/LT
Catalog page 19
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

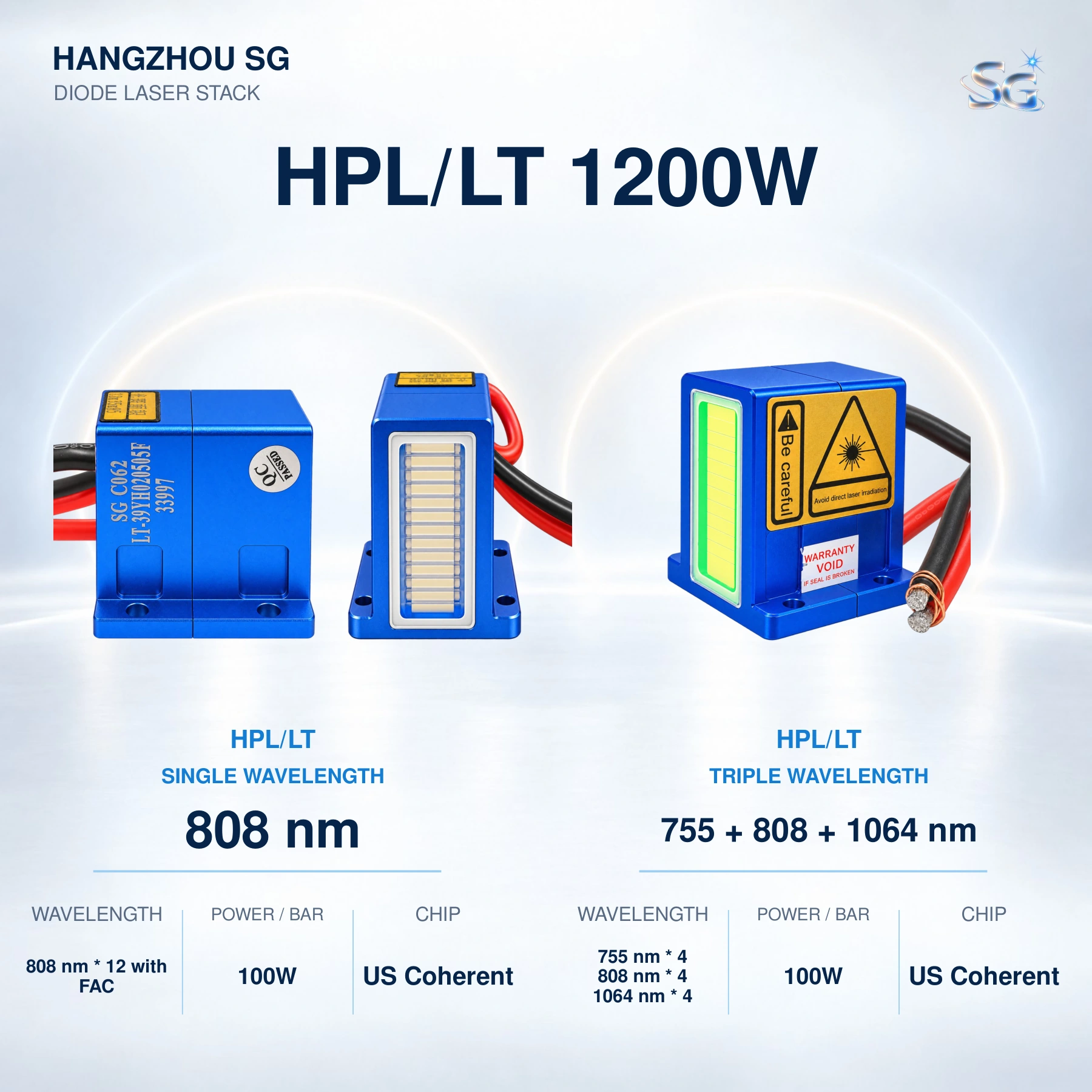

HPL/LT
Catalog page 20
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12 with FAC
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent
HPL/LT
Catalog page 20
- Series
- 1200W
- Wavelength / bars
- 755 nm * 4 808 nm * 4 1064 nm * 4
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

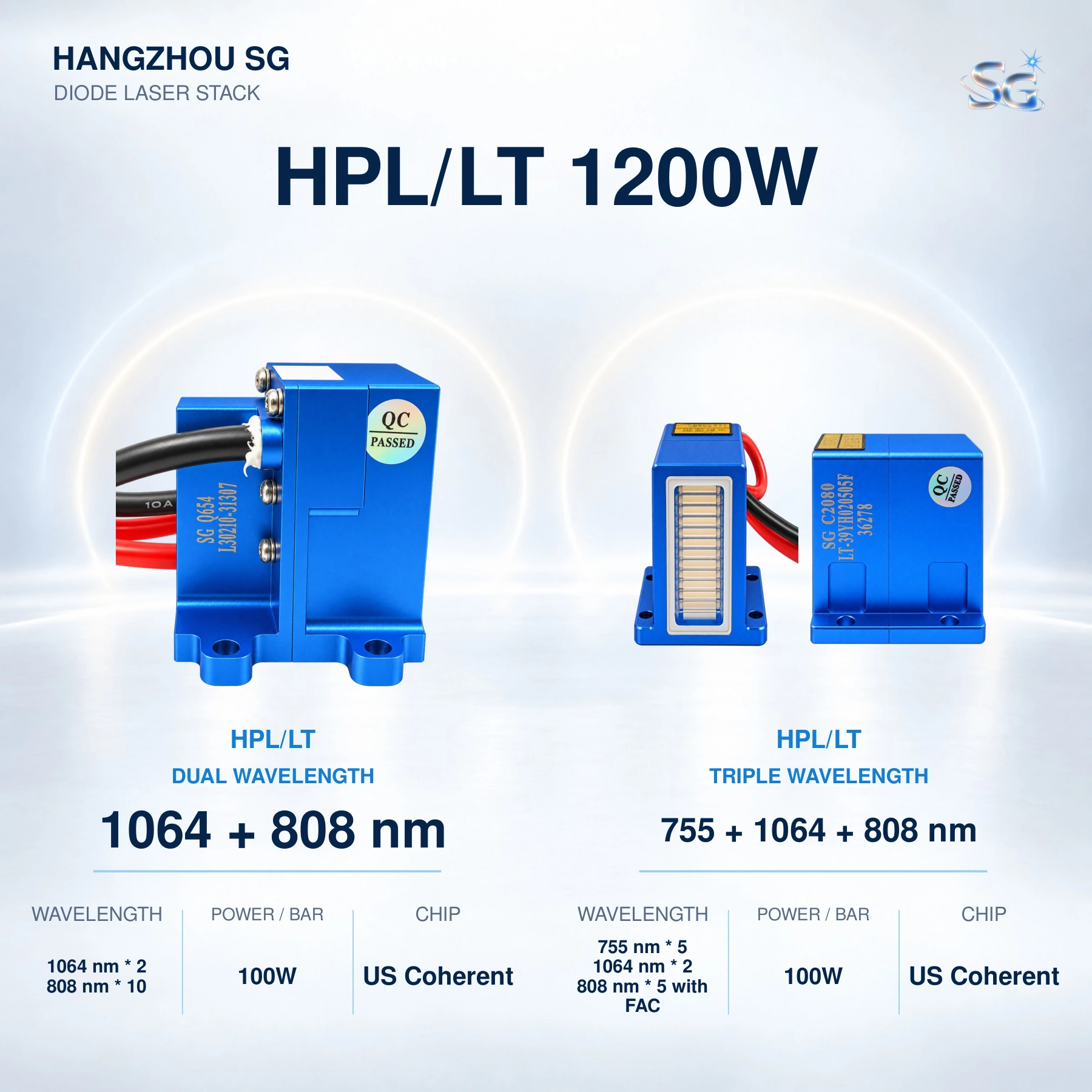

HPL/LT
Catalog page 21
- Series
- 1200W
- Wavelength / bars
- 1064 nm * 2 808 nm * 10
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent
HPL/LT
Catalog page 21
- Series
- 1200W
- Wavelength / bars
- 755 nm * 5 1064 nm * 2 808 nm * 5 with FAC
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

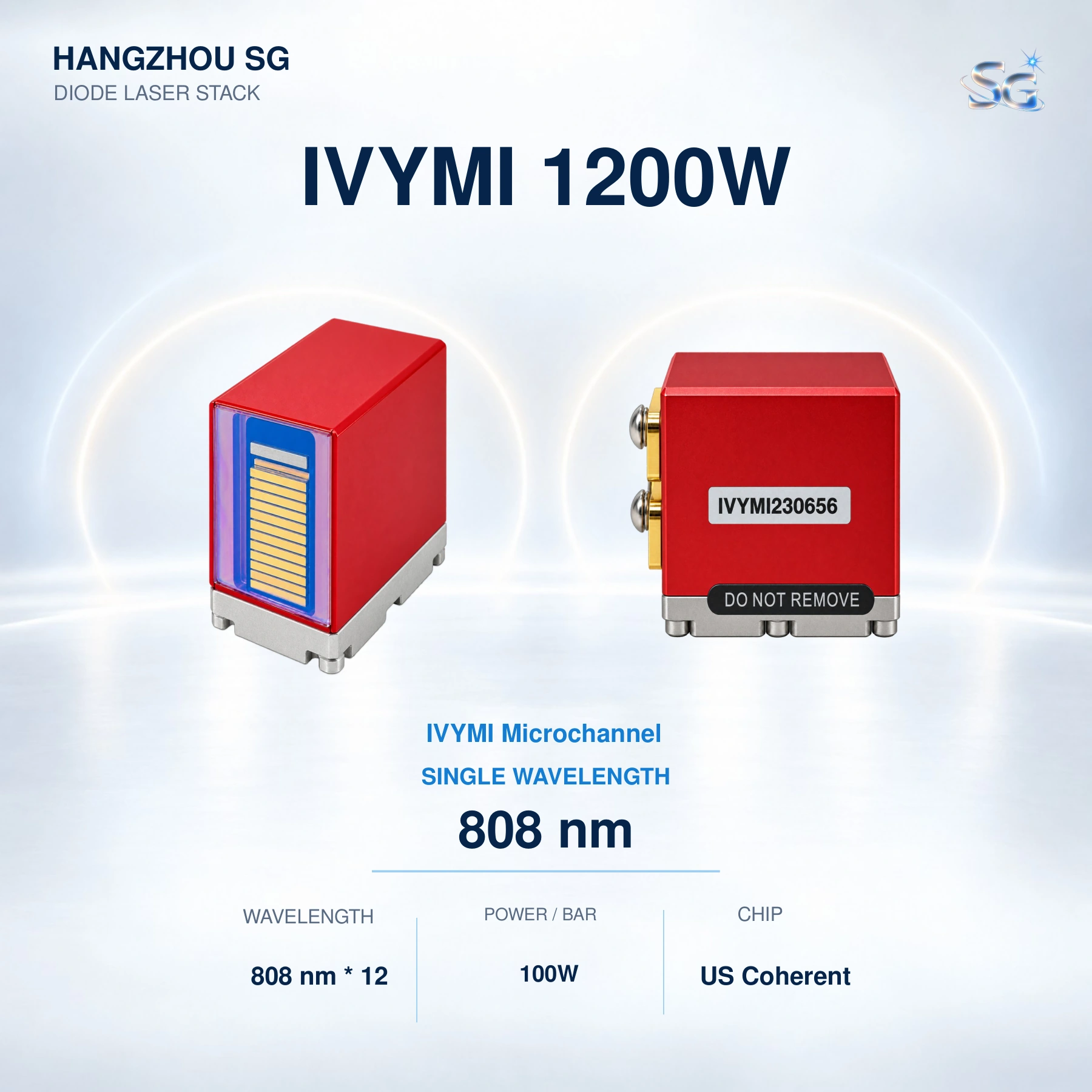

IVYMI Microchannel
Catalog page 22
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- US Coherent

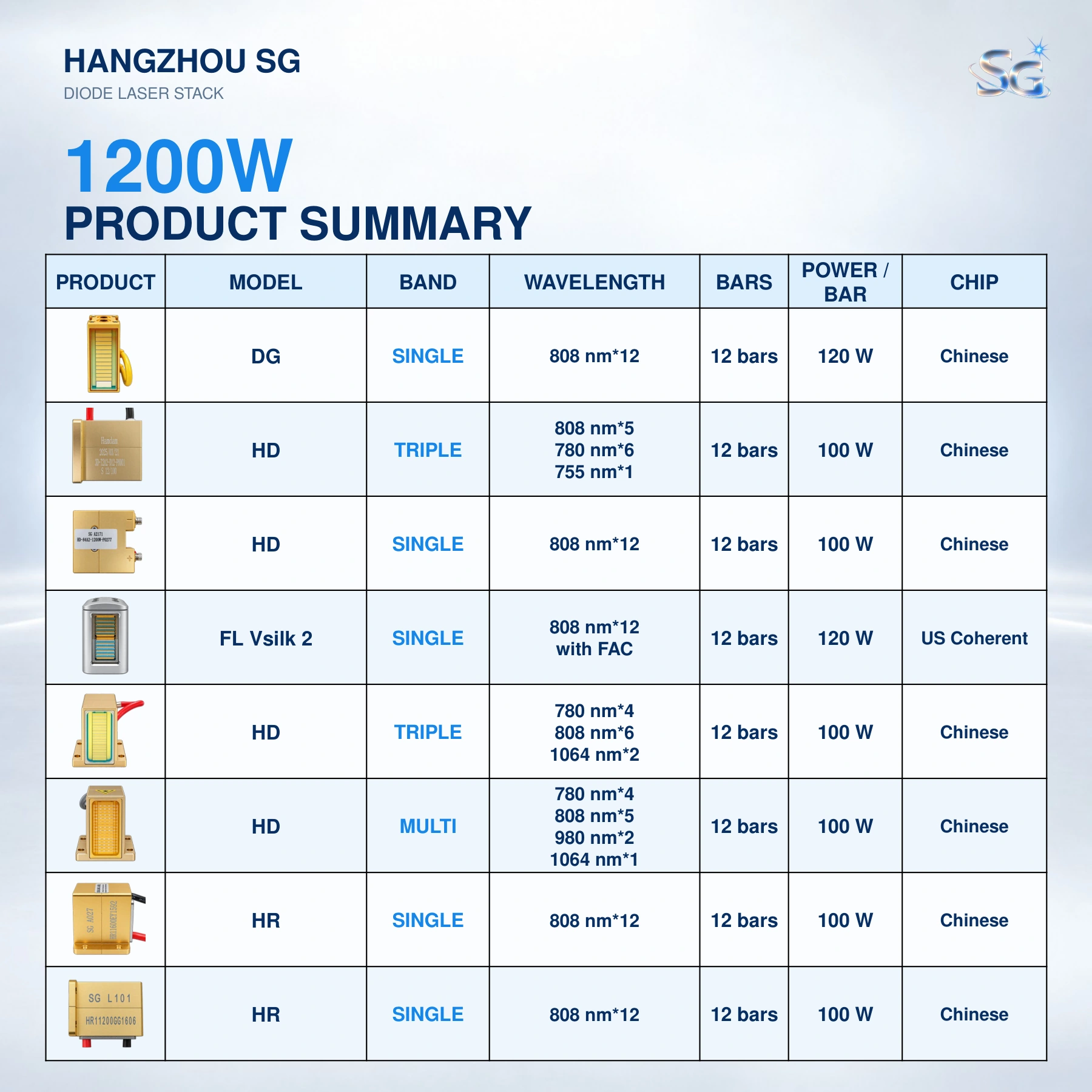

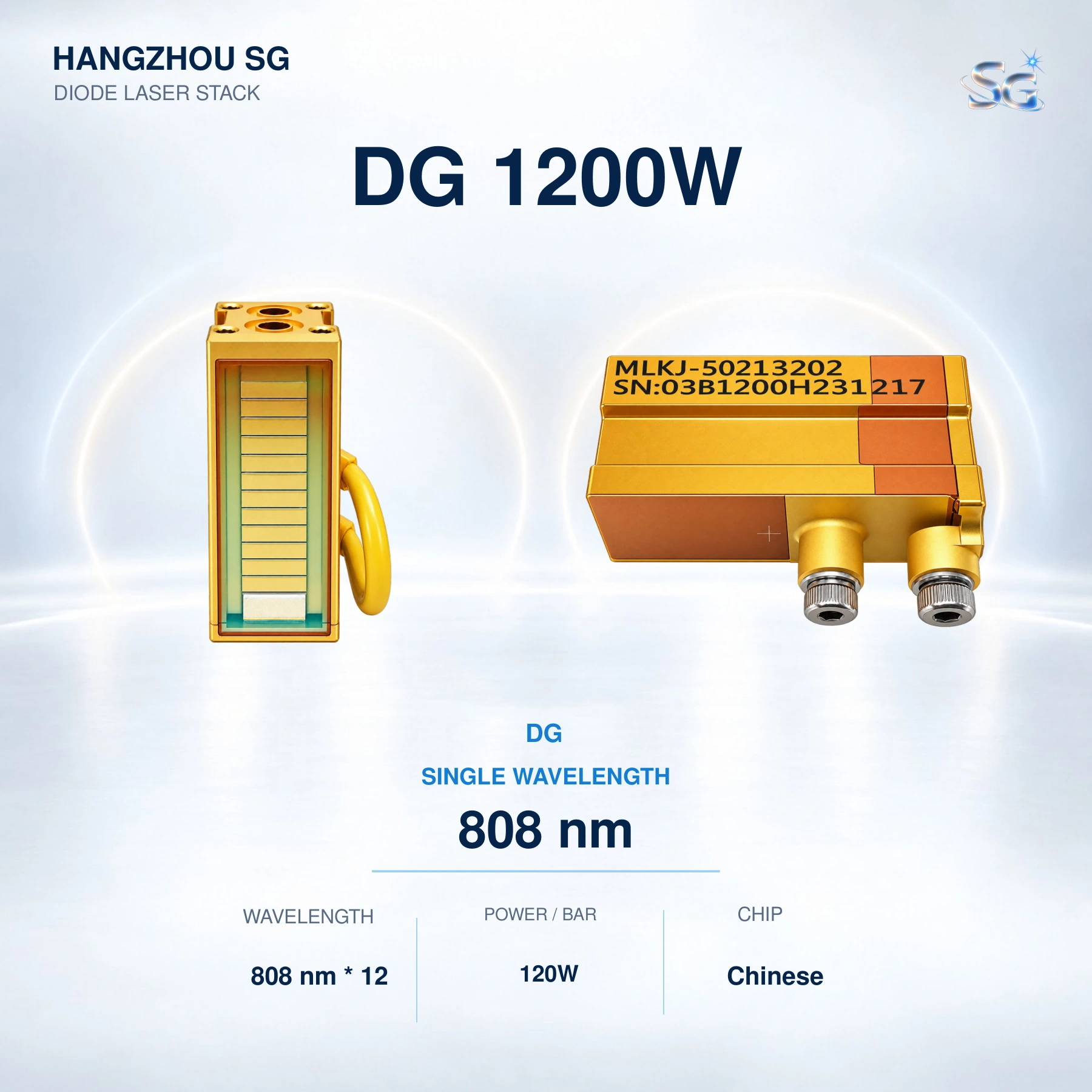

DG
Catalog page 24
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 120W
- Chip
- Chinese

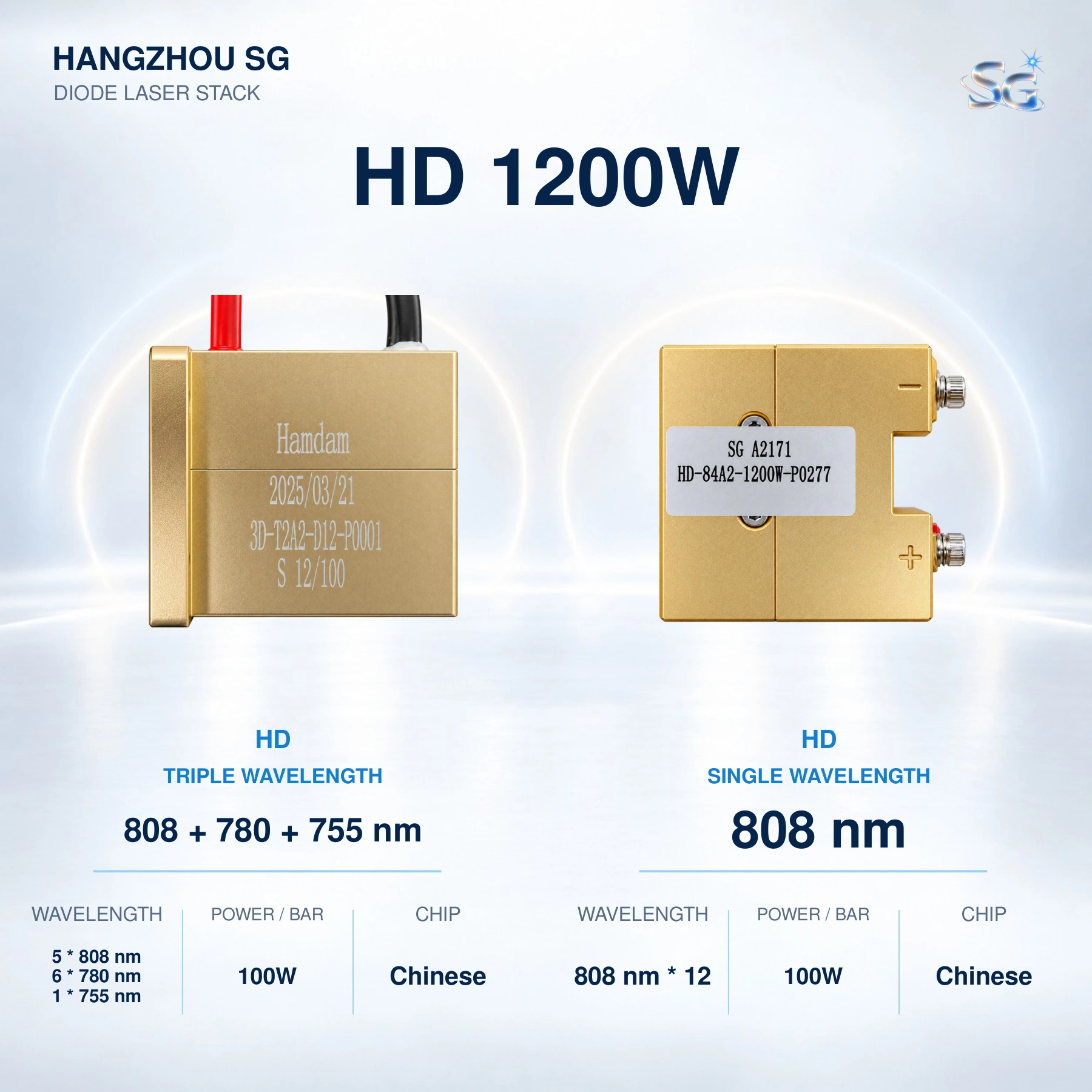

HD
Catalog page 25
- Series
- 1200W
- Wavelength / bars
- 5 * 808 nm 6 * 780 nm 1 * 755 nm
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese
HD
Catalog page 25
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese

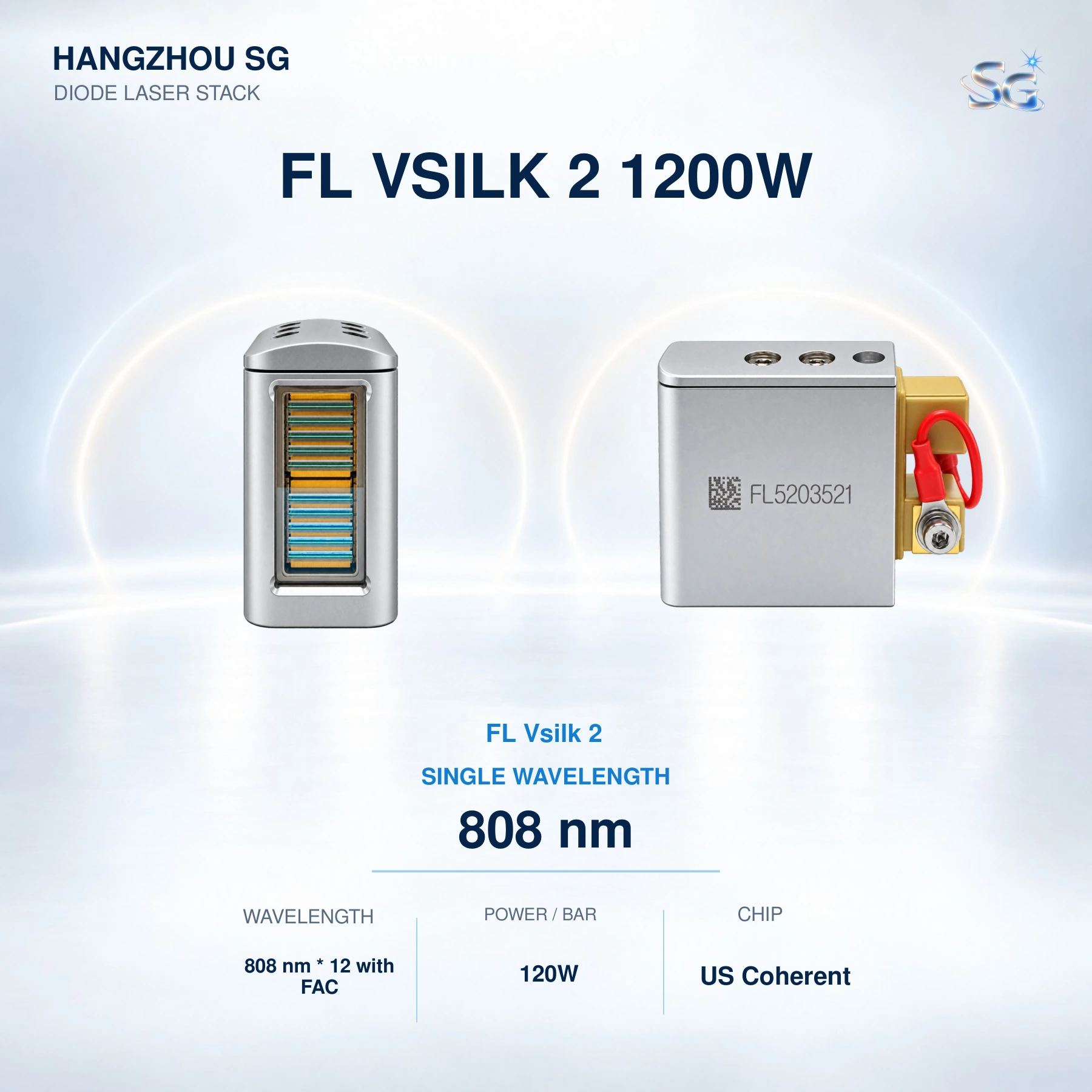

FL Vsilk 2
Catalog page 26
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12 with FAC
- Bars
- 12 bars
- Power / bar
- 120W
- Chip
- US Coherent

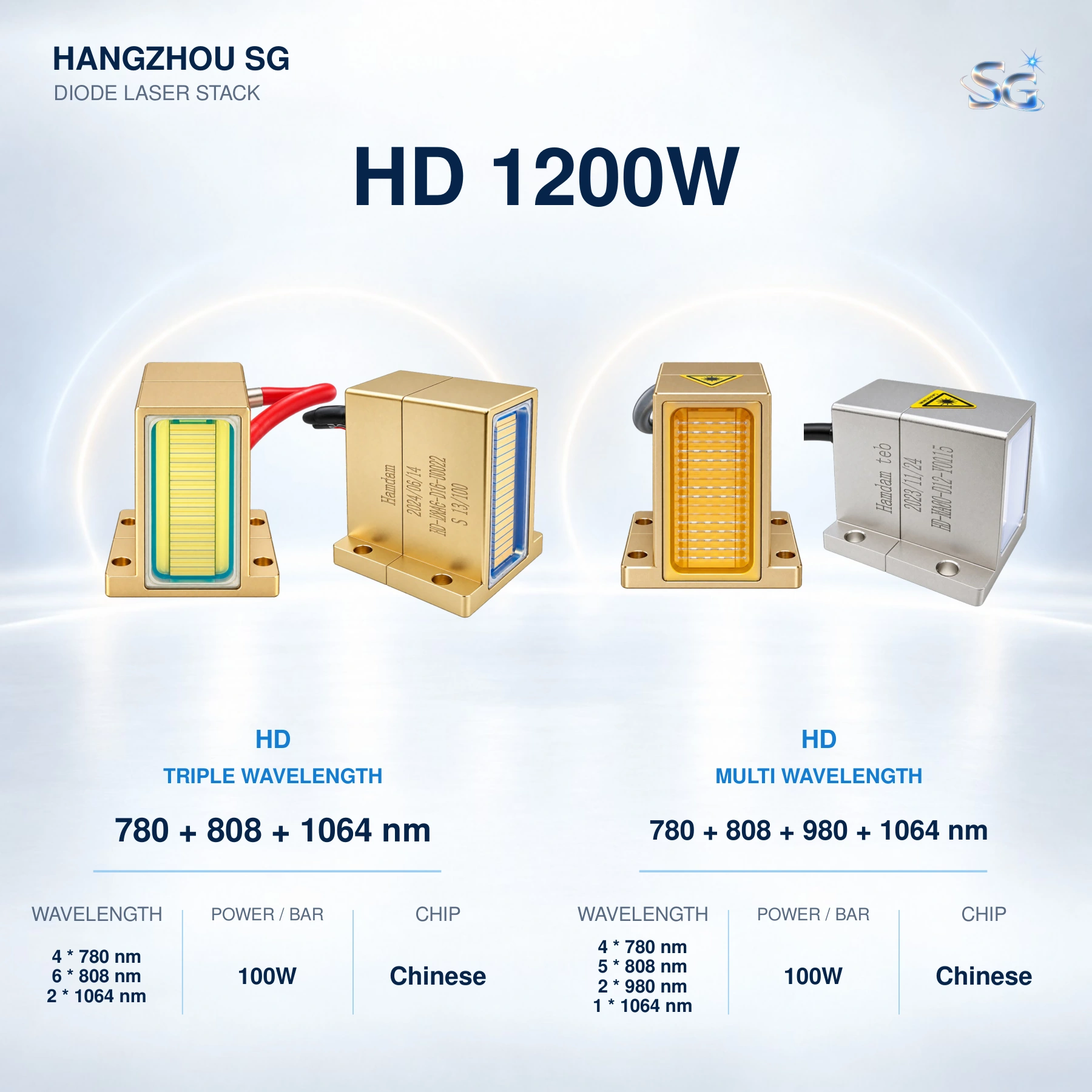

HD
Catalog page 27
- Series
- 1200W
- Wavelength / bars
- 4 * 780 nm 6 * 808 nm 2 * 1064 nm
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese
HD
Catalog page 27
- Series
- 1200W
- Wavelength / bars
- 4 * 780 nm 5 * 808 nm 2 * 980 nm 1 * 1064 nm
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese

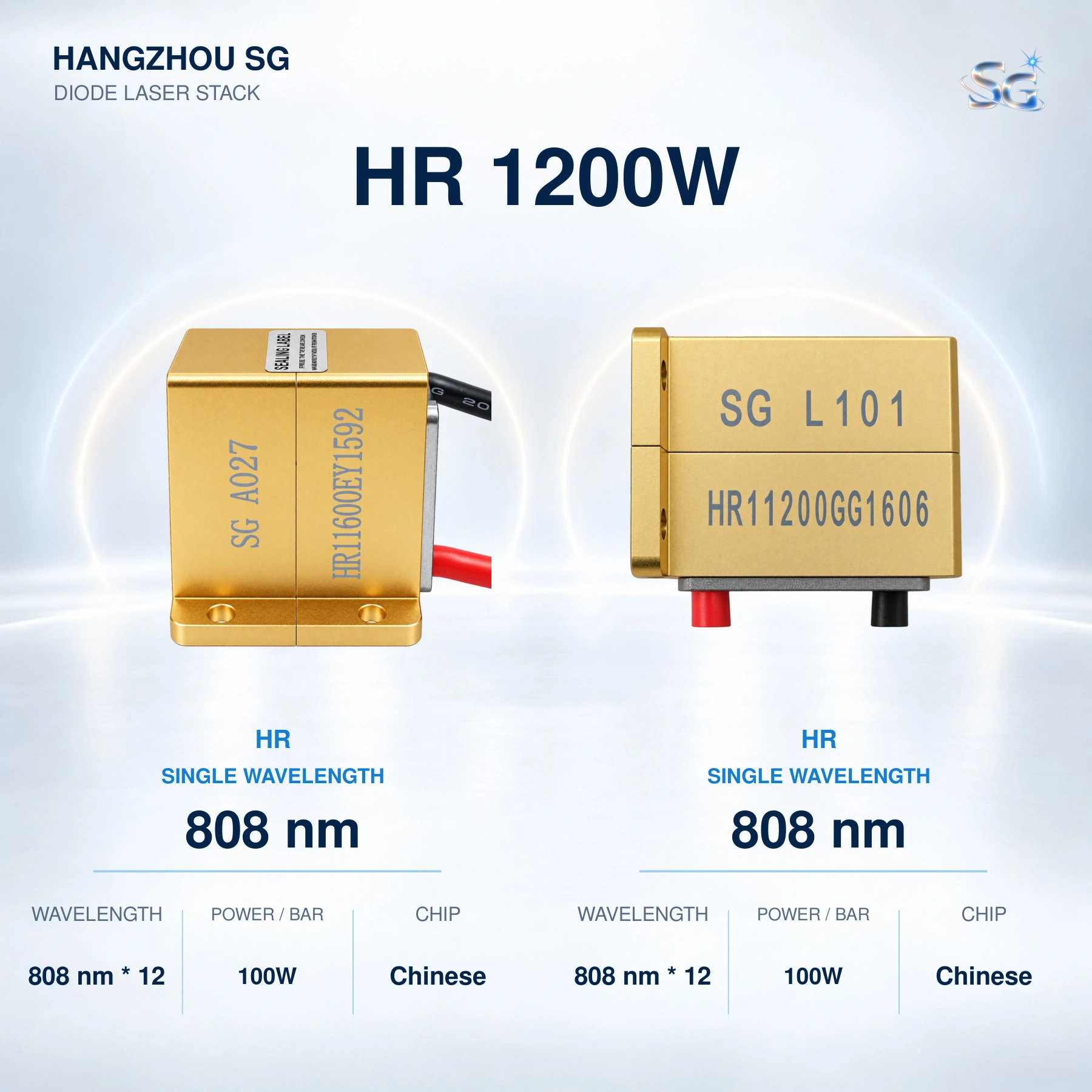

HR
Catalog page 28
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese
HR
Catalog page 28
- Series
- 1200W
- Wavelength / bars
- 808 nm * 12
- Bars
- 12 bars
- Power / bar
- 100W
- Chip
- Chinese
Specifications reproduce the catalog values. Confirm the exact configuration before ordering. Any listed prices are catalog reference quotations; current validity, taxes and shipping require confirmation.
