Product names and specifications are also available as text below. The original catalog layout above is unchanged.
Product information and specifications (text)

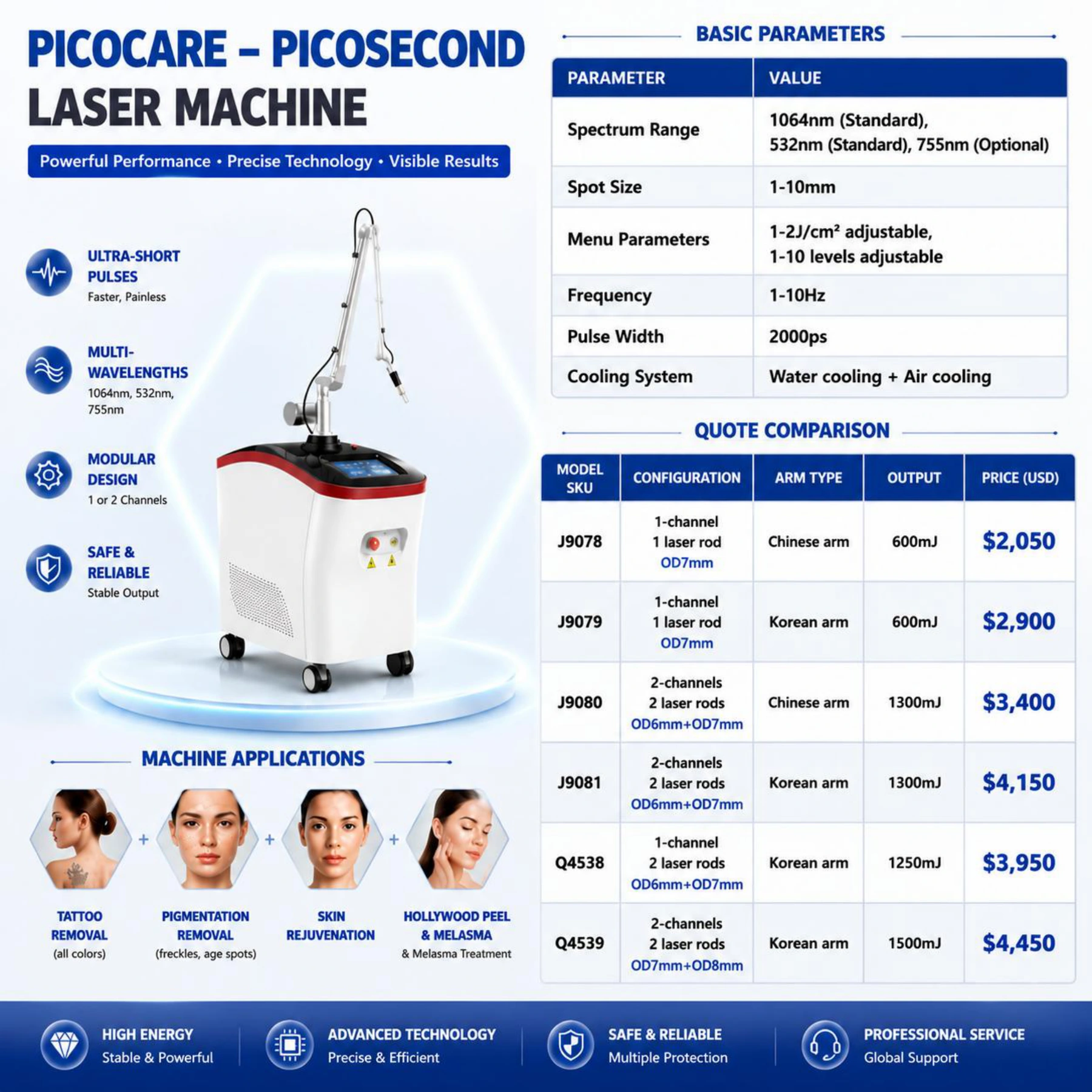

Picosecond Laser Machine
Catalog page 1
- Spectrum Range
- 1064nm (Standard), 532nm (Standard), 755nm (Optional)
- Spot Size
- 1–10mm
- Menu Parameters
- 1–2J/cm² adjustable, 1–10 levels adjustable
- Frequency
- 1–10Hz
- Pulse Width
- 2000ps
- Cooling System
- Water cooling + Air cooling
- applications
- Tattoo removal (all colors); pigmentation removal (freckles, age spots); skin rejuvenation; Hollywood peel & melasma treatment. These are source claims, not verified outcomes.
- marketing description
- Powerful Performance • Precise Technology • Visible Results. Ultra-short pulses: faster, painless. Multi-wavelengths. Modular design: 1 or 2 channels. Safe & reliable: stable output. High energy: stable & powerful. Advanced technology: precise & efficient. Multiple protection. Professional service: global support.
J9078
Catalog page 1
- Configuration
- 1-channel; 1 laser rod; OD7mm
- Arm type
- Chinese arm
- Output
- 600mJ
- Price (USD)
- 2,050
J9079
Catalog page 1
- Configuration
- 1-channel; 1 laser rod; OD7mm
- Arm type
- Korean arm
- Output
- 600mJ
- Price (USD)
- 2,900
J9080
Catalog page 1
- Configuration
- 2-channels; 2 laser rods; OD6mm + OD7mm
- Arm type
- Chinese arm
- Output
- 1300mJ
- Price (USD)
- 3,400
J9081
Catalog page 1
- Configuration
- 2-channels; 2 laser rods; OD6mm + OD7mm
- Arm type
- Korean arm
- Output
- 1300mJ
- Price (USD)
- 4,150
Q4538
Catalog page 1
- Configuration
- 1-channel; 2 laser rods; OD6mm + OD7mm
- Arm type
- Korean arm
- Output
- 1250mJ
- Price (USD)
- 3,950
Q4539
Catalog page 1
- Configuration
- 2-channels; 2 laser rods; OD7mm + OD8mm
- Arm type
- Korean arm
- Output
- 1500mJ
- Price (USD)
- 4,450

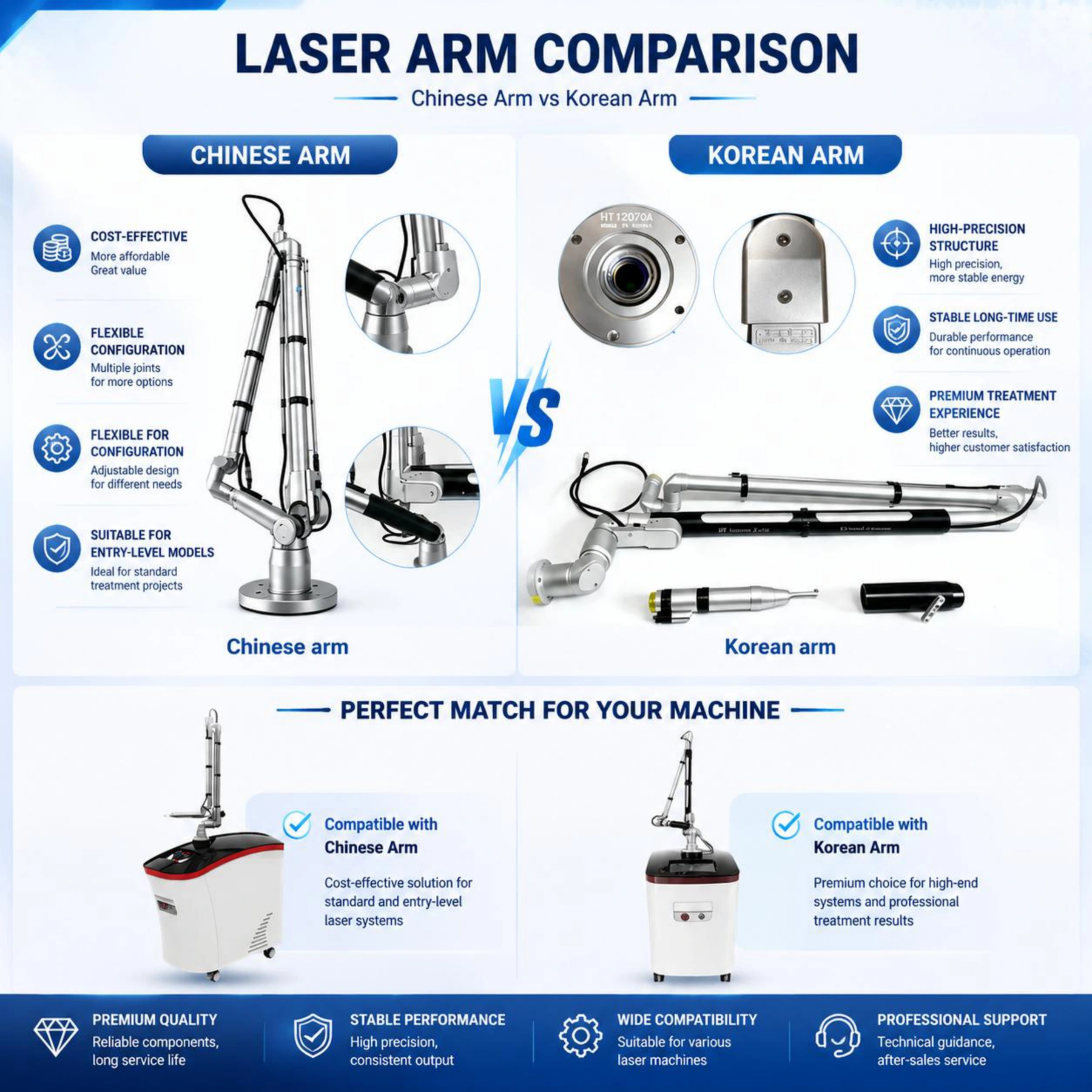

Chinese Arm
Catalog page 2
- description
- Cost-effective: more affordable, great value. Flexible configuration: multiple joints for more options; adjustable design for different needs. Suitable for entry-level models, ideal for standard treatment projects.
- Source-listed pairing
- Compatible with Chinese Arm; cost-effective solution for standard and entry-level laser systems. Actual installation compatibility is not independently verified.
Korean Arm
Catalog page 2
- description
- High-precision structure: high precision, more stable energy. Stable long-time use: durable performance for continuous operation. Premium treatment experience: better results, higher customer satisfaction (source claims).
- Source-listed pairing
- Compatible with Korean Arm; premium choice for high-end systems and professional treatment results. Actual installation compatibility is not independently verified.
Laser arm support
Catalog page 2
- footer
- Premium quality: reliable components, long service life. Stable performance: high precision, consistent output. Wide compatibility: suitable for various laser machines. Professional support: technical guidance, after-sales service.

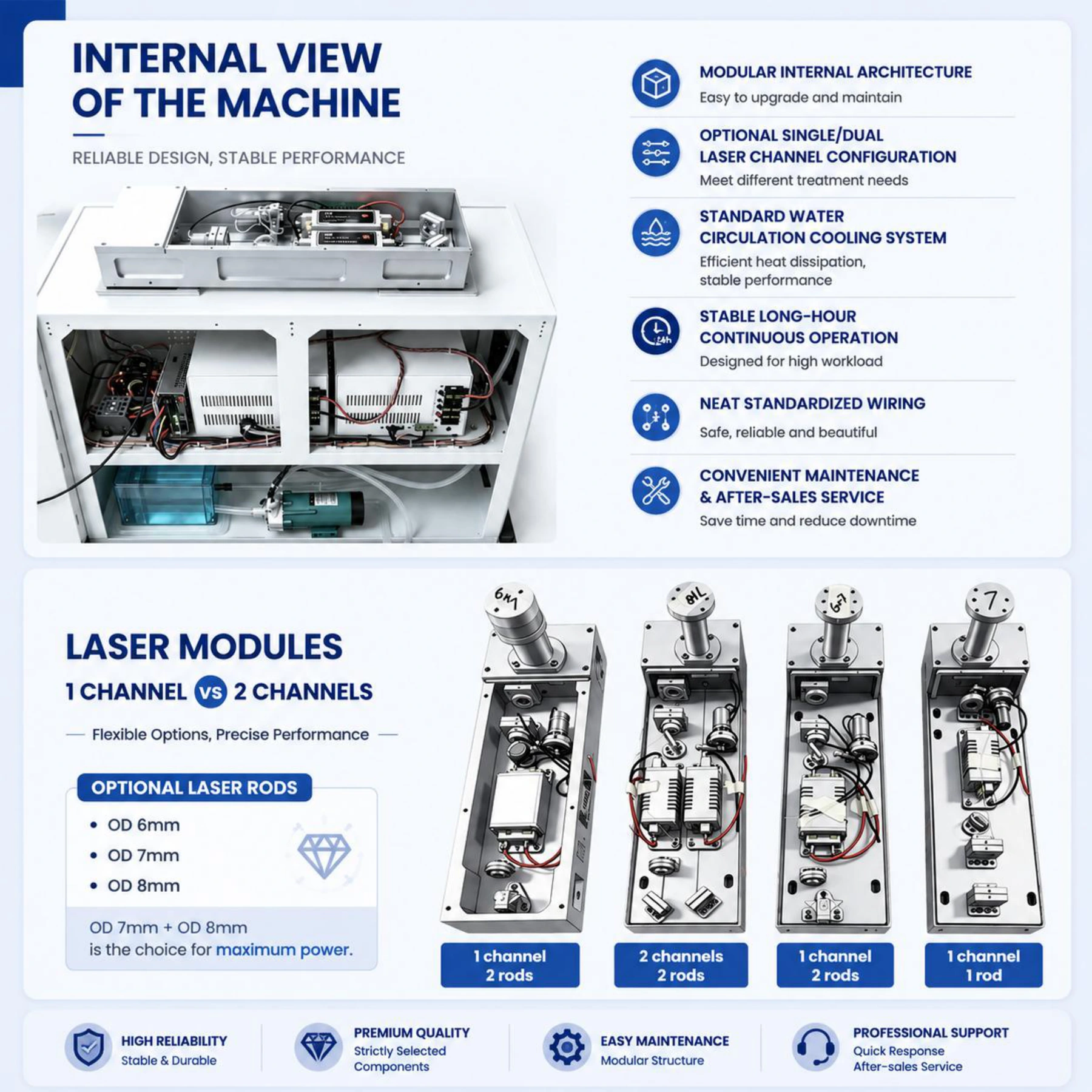

Internal view of the machine
Catalog page 3
- features
- Modular internal architecture: easy to upgrade and maintain. Optional single/dual laser channel configuration: meet different treatment needs. Standard water circulation cooling system: efficient heat dissipation, stable performance. Stable long-hour continuous operation: designed for high workload. Neat standardized wiring: safe, reliable and beautiful. Convenient maintenance & after-sales service: save time and reduce downtime.
1 channel / 2 rods
Catalog page 3
- caption
- 1 channel / 2 rods
- Optional laser rods (section-wide)
- OD 6mm; OD 7mm; OD 8mm
- section statement
- OD 7mm + OD 8mm is the choice for maximum power; not a confirmed diameter assignment for every pictured module.
2 channels / 2 rods
Catalog page 3
- caption
- 2 channels / 2 rods
- Optional laser rods (section-wide)
- OD 6mm; OD 7mm; OD 8mm
- section statement
- OD 7mm + OD 8mm is the choice for maximum power; not a confirmed diameter assignment for every pictured module.
1 channel / 2 rods
Catalog page 3
- caption
- 1 channel / 2 rods
- Optional laser rods (section-wide)
- OD 6mm; OD 7mm; OD 8mm
- section statement
- OD 7mm + OD 8mm is the choice for maximum power; not a confirmed diameter assignment for every pictured module.
1 channel / 1 rod
Catalog page 3
- caption
- 1 channel / 1 rod
- Optional laser rods (section-wide)
- OD 6mm; OD 7mm; OD 8mm
- section statement
- OD 7mm + OD 8mm is the choice for maximum power; not a confirmed diameter assignment for every pictured module.
Module support
Catalog page 3
- footer
- High reliability: stable & durable. Premium quality: strictly selected components. Easy maintenance: modular structure. Professional support: quick-response after-sales service.
Specifications reproduce the catalog values. Confirm the exact configuration before ordering. Any listed prices are catalog reference quotations; current validity, taxes and shipping require confirmation.
