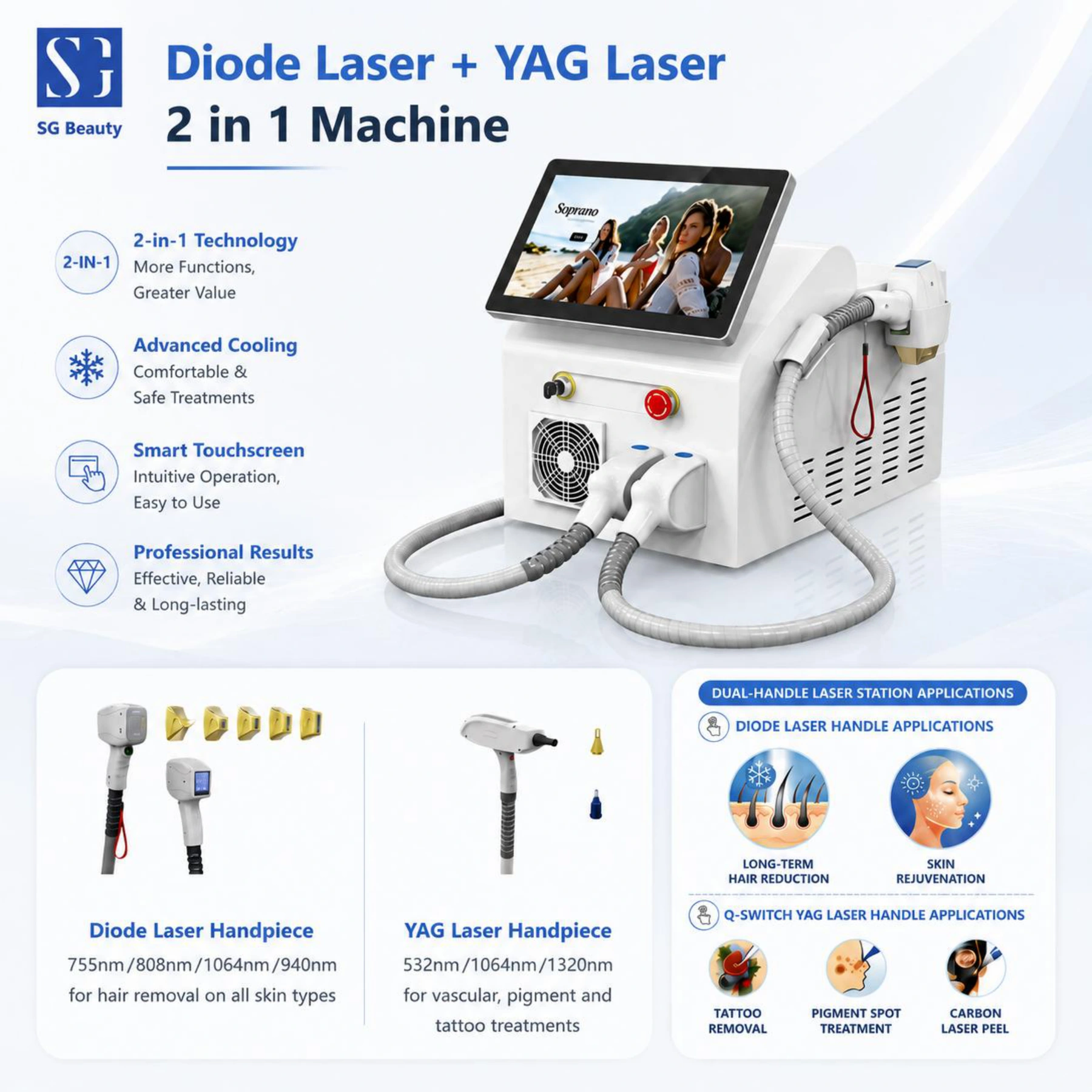

2 in 1 Machine
Catalog page 1
- overview
- 2-in-1 Technology: More Functions, Greater Value. Advanced Cooling: Comfortable & Safe Treatments. Smart Touchscreen: Intuitive Operation, Easy to Use. Professional Results: Effective, Reliable & Long-lasting. Source-listed applications: Diode handpiece, 755nm / 808nm / 1064nm / 940nm, hair removal on all skin types, long-term hair reduction and skin rejuvenation. YAG handpiece, 532nm / 1064nm / 1320nm, vascular, pigment and tattoo treatments, tattoo removal, pigment spot treatment and carbon laser peel. Application and outcome statements are catalog claims, not independently verified.

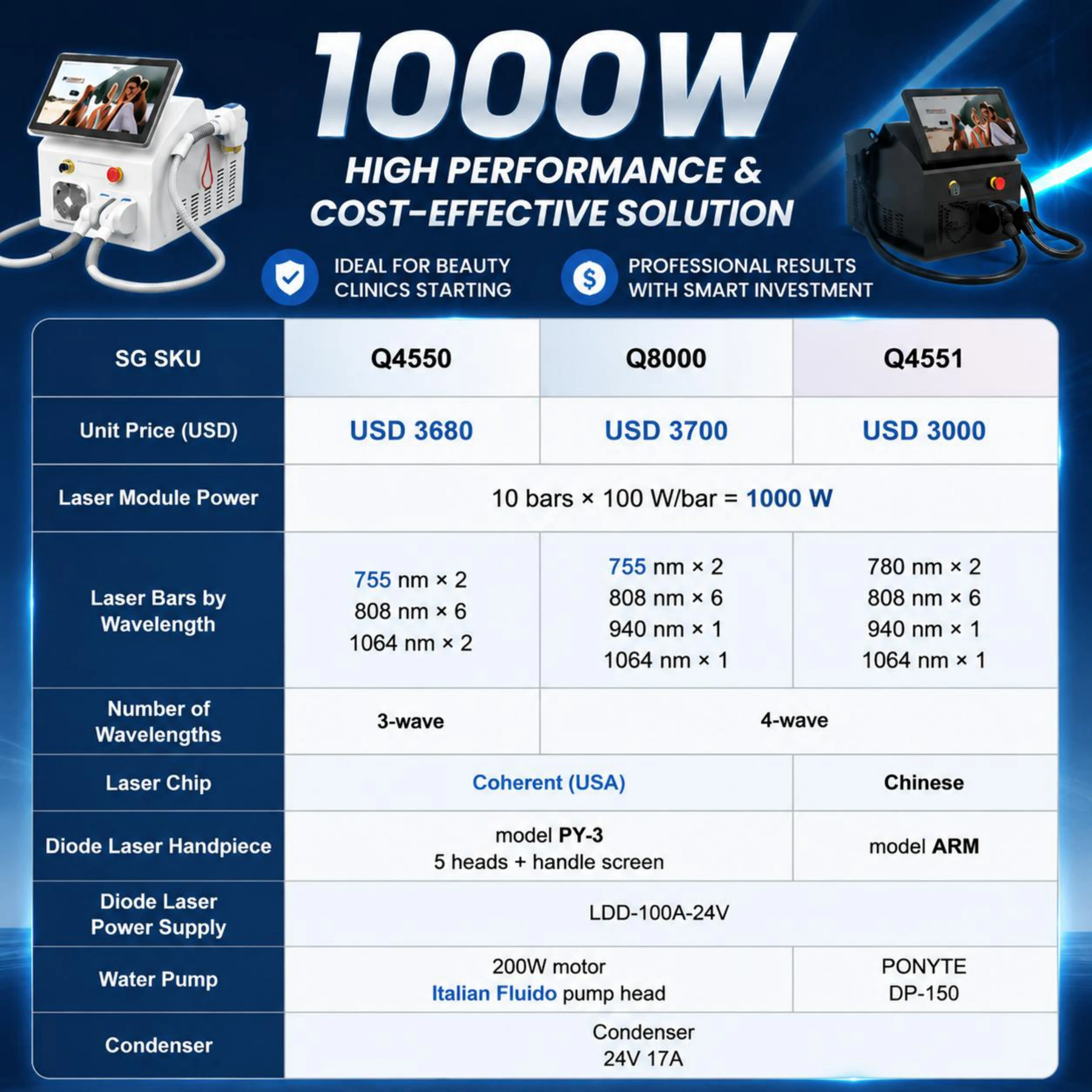

Q4550
Catalog page 2
- Unit Price (USD)
- 3680
- Laser Module Power
- 10 bars × 100 W/bar = 1000 W
- Laser Bars by Wavelength
- 755 nm × 2
808 nm × 6
1064 nm × 2
- Number of Wavelengths
- 3-wave
- Laser Chip
- Coherent (USA)
- Diode Laser Handpiece
- model PY-3; 5 heads + handle screen
- Diode Laser Power Supply
- LDD-100A-24V
- Water Pump
- 200W motor; Italian Fluido pump head
- Condenser
- Condenser 24V 17A
Q8000
Catalog page 2
- Unit Price (USD)
- 3700
- Laser Module Power
- 10 bars × 100 W/bar = 1000 W
- Laser Bars by Wavelength
- 755 nm × 2
808 nm × 6
940 nm × 1
1064 nm × 1
- Number of Wavelengths
- 4-wave
- Laser Chip
- Coherent (USA)
- Diode Laser Handpiece
- model PY-3; 5 heads + handle screen
- Diode Laser Power Supply
- LDD-100A-24V
- Water Pump
- 200W motor; Italian Fluido pump head
- Condenser
- Condenser 24V 17A
Q4551
Catalog page 2
- Unit Price (USD)
- 3000
- Laser Module Power
- 10 bars × 100 W/bar = 1000 W
- Laser Bars by Wavelength
- 780 nm × 2
808 nm × 6
940 nm × 1
1064 nm × 1
- Number of Wavelengths
- 4-wave
- Laser Chip
- Chinese
- Diode Laser Handpiece
- model ARM
- Diode Laser Power Supply
- LDD-100A-24V
- Water Pump
- PONYTE DP-150
- Condenser
- Condenser 24V 17A

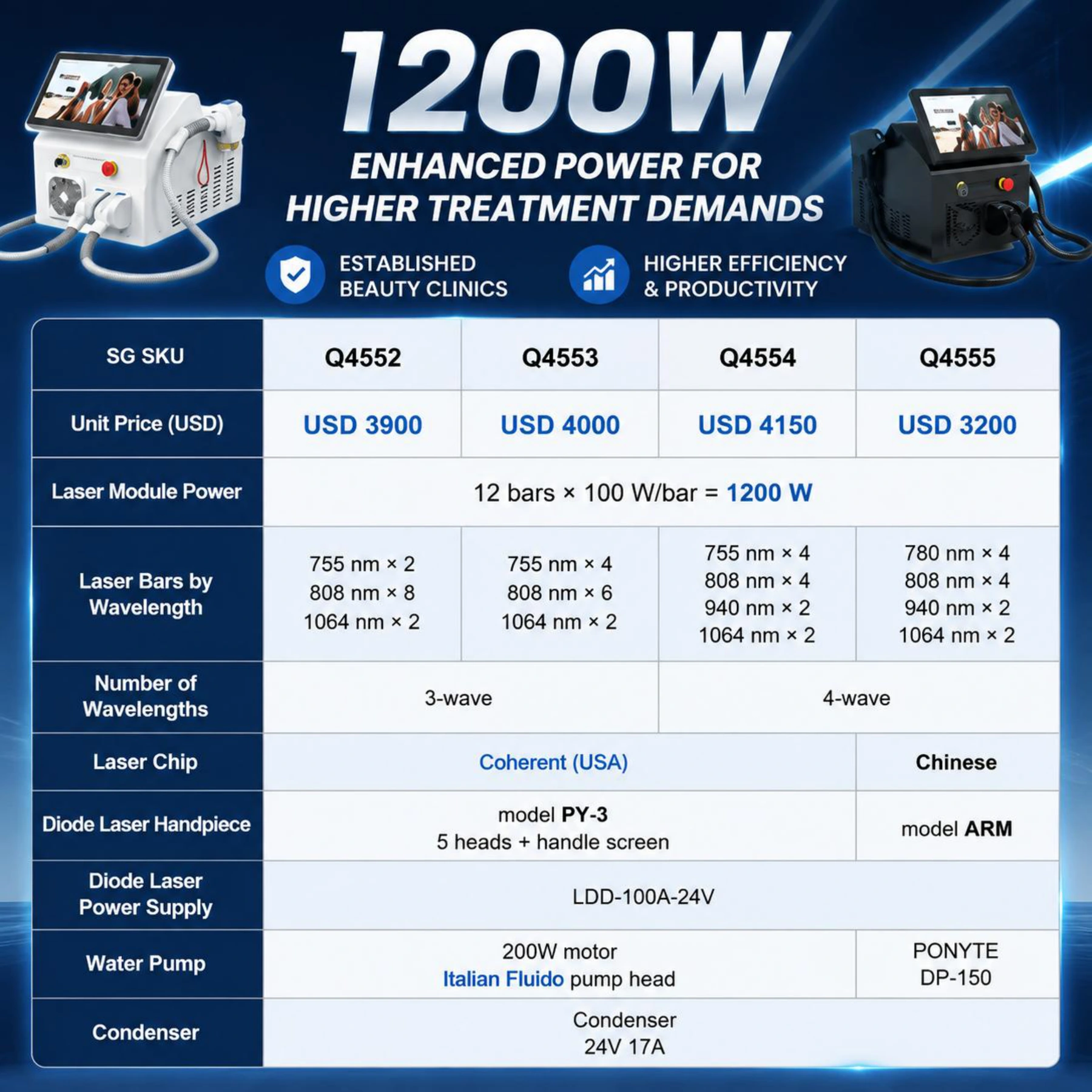

Q4552
Catalog page 3
- Unit Price (USD)
- 3900
- Laser Module Power
- 12 bars × 100 W/bar = 1200 W
- Laser Bars by Wavelength
- 755 nm × 2
808 nm × 8
1064 nm × 2
- Number of Wavelengths
- 3-wave
- Laser Chip
- Coherent (USA)
- Diode Laser Handpiece
- model PY-3; 5 heads + handle screen
- Diode Laser Power Supply
- LDD-100A-24V
- Water Pump
- 200W motor; Italian Fluido pump head
- Condenser
- Condenser 24V 17A
Q4553
Catalog page 3
- Unit Price (USD)
- 4000
- Laser Module Power
- 12 bars × 100 W/bar = 1200 W
- Laser Bars by Wavelength
- 755 nm × 4
808 nm × 6
1064 nm × 2
- Number of Wavelengths
- 3-wave
- Laser Chip
- Coherent (USA)
- Diode Laser Handpiece
- model PY-3; 5 heads + handle screen
- Diode Laser Power Supply
- LDD-100A-24V
- Water Pump
- 200W motor; Italian Fluido pump head
- Condenser
- Condenser 24V 17A
Q4554
Catalog page 3
- Unit Price (USD)
- 4150
- Laser Module Power
- 12 bars × 100 W/bar = 1200 W
- Laser Bars by Wavelength
- 755 nm × 4
808 nm × 4
940 nm × 2
1064 nm × 2
- Number of Wavelengths
- 4-wave
- Laser Chip
- Coherent (USA)
- Diode Laser Handpiece
- model PY-3; 5 heads + handle screen
- Diode Laser Power Supply
- LDD-100A-24V
- Water Pump
- 200W motor; Italian Fluido pump head
- Condenser
- Condenser 24V 17A
Q4555
Catalog page 3
- Unit Price (USD)
- 3200
- Laser Module Power
- 12 bars × 100 W/bar = 1200 W
- Laser Bars by Wavelength
- 780 nm × 4
808 nm × 4
940 nm × 2
1064 nm × 2
- Number of Wavelengths
- 4-wave
- Laser Chip
- Chinese
- Diode Laser Handpiece
- model ARM
- Diode Laser Power Supply
- LDD-100A-24V
- Water Pump
- PONYTE DP-150
- Condenser
- Condenser 24V 17A

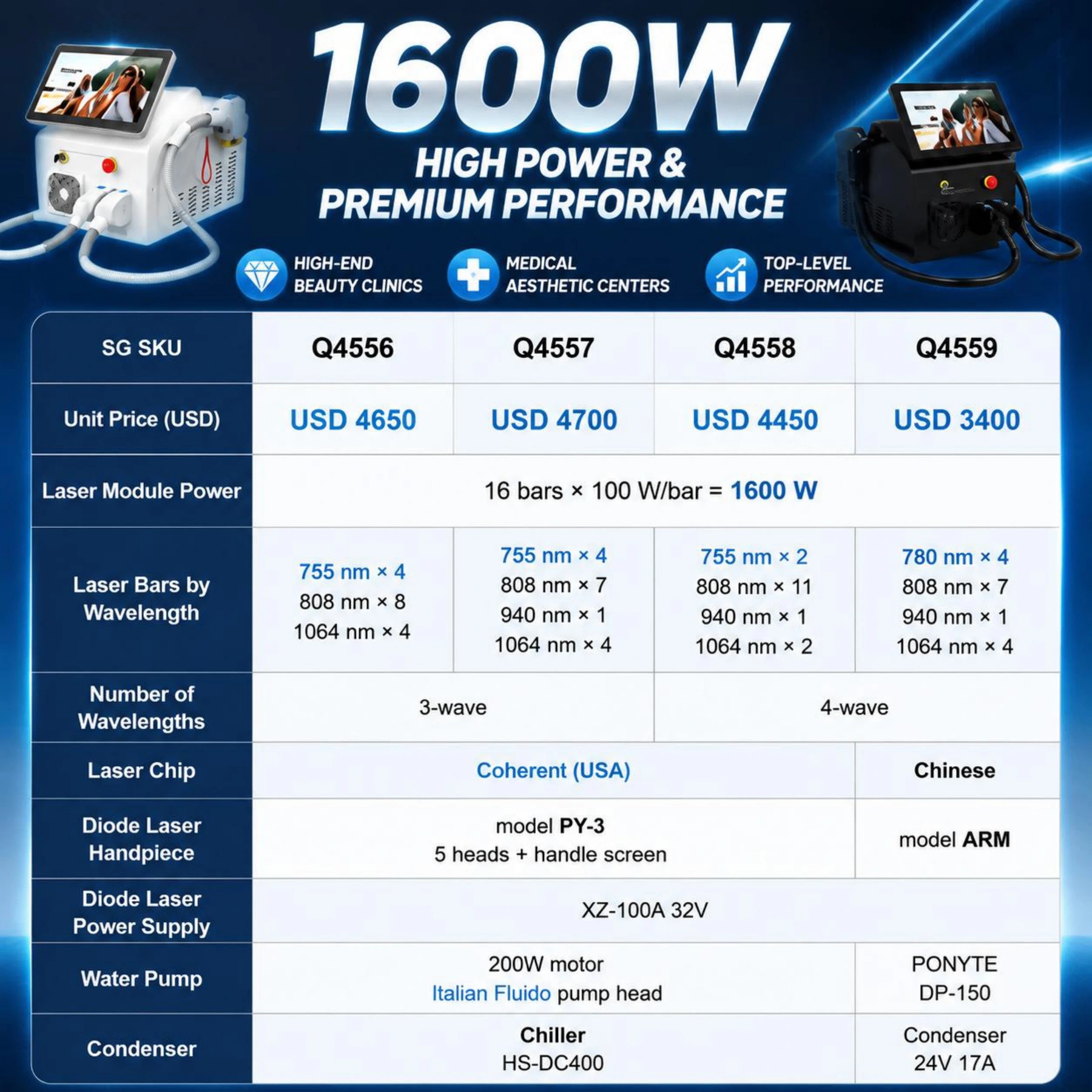

Q4556
Catalog page 4
- Unit Price (USD)
- 4650
- Laser Module Power
- 16 bars × 100 W/bar = 1600 W
- Laser Bars by Wavelength
- 755 nm × 4
808 nm × 8
1064 nm × 4
- Number of Wavelengths
- 3-wave
- Laser Chip
- Coherent (USA)
- Diode Laser Handpiece
- model PY-3; 5 heads + handle screen
- Diode Laser Power Supply
- XZ-100A 32V
- Water Pump
- 200W motor; Italian Fluido pump head
- Condenser
- Chiller HS-DC400
Q4557
Catalog page 4
- Unit Price (USD)
- 4700
- Laser Module Power
- 16 bars × 100 W/bar = 1600 W
- Laser Bars by Wavelength
- 755 nm × 4
808 nm × 7
940 nm × 1
1064 nm × 4
- Number of Wavelengths
- 4-wave
- Laser Chip
- Coherent (USA)
- Diode Laser Handpiece
- model PY-3; 5 heads + handle screen
- Diode Laser Power Supply
- XZ-100A 32V
- Water Pump
- 200W motor; Italian Fluido pump head
- Condenser
- Chiller HS-DC400
Q4558
Catalog page 4
- Unit Price (USD)
- 4450
- Laser Module Power
- 16 bars × 100 W/bar = 1600 W
- Laser Bars by Wavelength
- 755 nm × 2
808 nm × 11
940 nm × 1
1064 nm × 2
- Number of Wavelengths
- 4-wave
- Laser Chip
- Coherent (USA)
- Diode Laser Handpiece
- model PY-3; 5 heads + handle screen
- Diode Laser Power Supply
- XZ-100A 32V
- Water Pump
- 200W motor; Italian Fluido pump head
- Condenser
- Chiller HS-DC400
Q4559
Catalog page 4
- Unit Price (USD)
- 3400
- Laser Module Power
- 16 bars × 100 W/bar = 1600 W
- Laser Bars by Wavelength
- 780 nm × 4
808 nm × 7
940 nm × 1
1064 nm × 4
- Number of Wavelengths
- 4-wave
- Laser Chip
- Chinese
- Diode Laser Handpiece
- model ARM
- Diode Laser Power Supply
- XZ-100A 32V
- Water Pump
- PONYTE DP-150
- Condenser
- Condenser 24V 17A

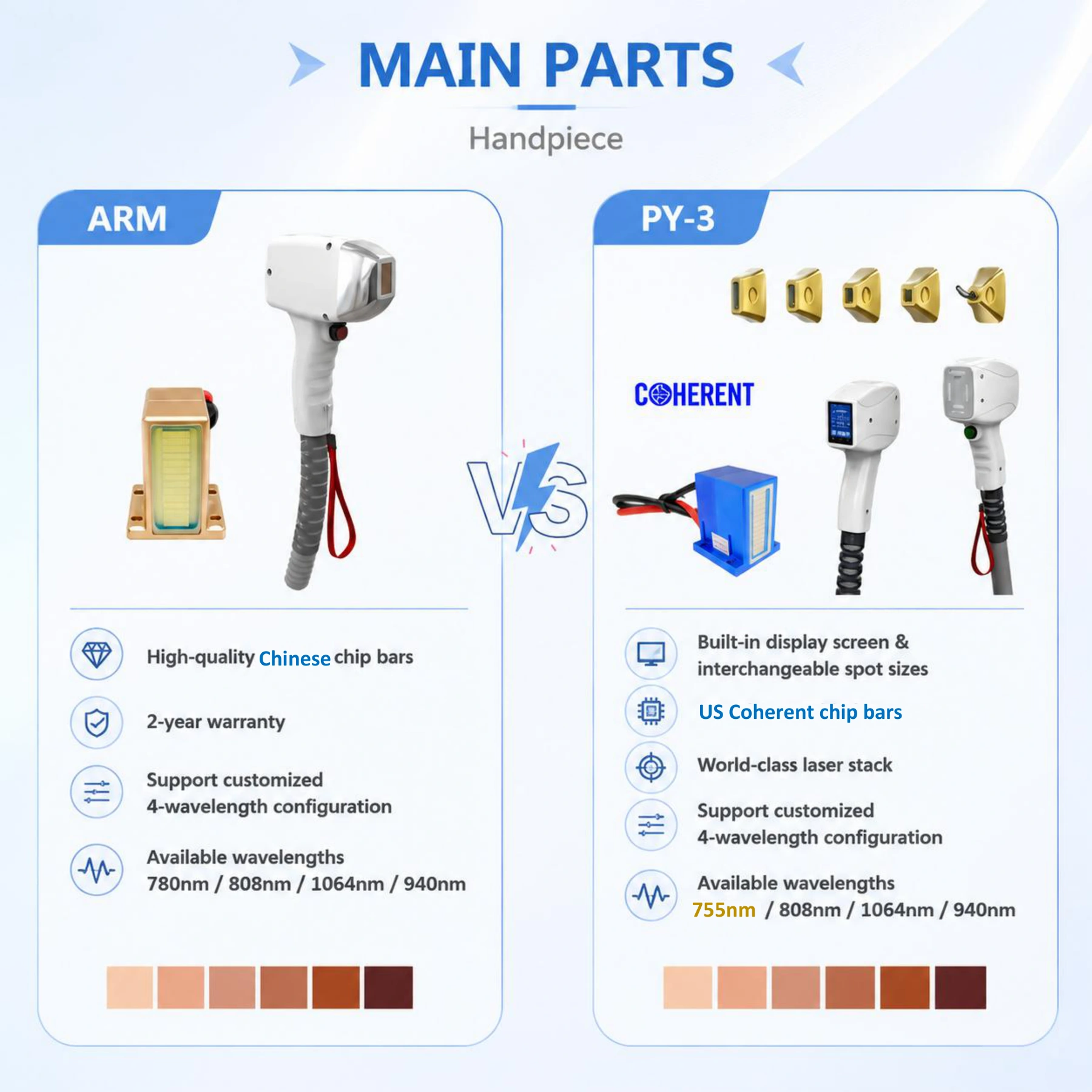

Handpiece
Catalog page 5
- Laser chip bars
- Chinese
- warranty
- 2-year warranty; detailed terms not supplied
- Configuration
- Support customized 4-wavelength configuration
- Available wavelengths
- 780nm / 808nm / 1064nm / 940nm
Handpiece
Catalog page 5
- Display and spots
- Built-in display screen & interchangeable spot sizes
- Laser chip bars
- US Coherent
- description
- World-class laser stack
- Configuration
- Support customized 4-wavelength configuration
- Available wavelengths
- 755nm / 808nm / 1064nm / 940nm

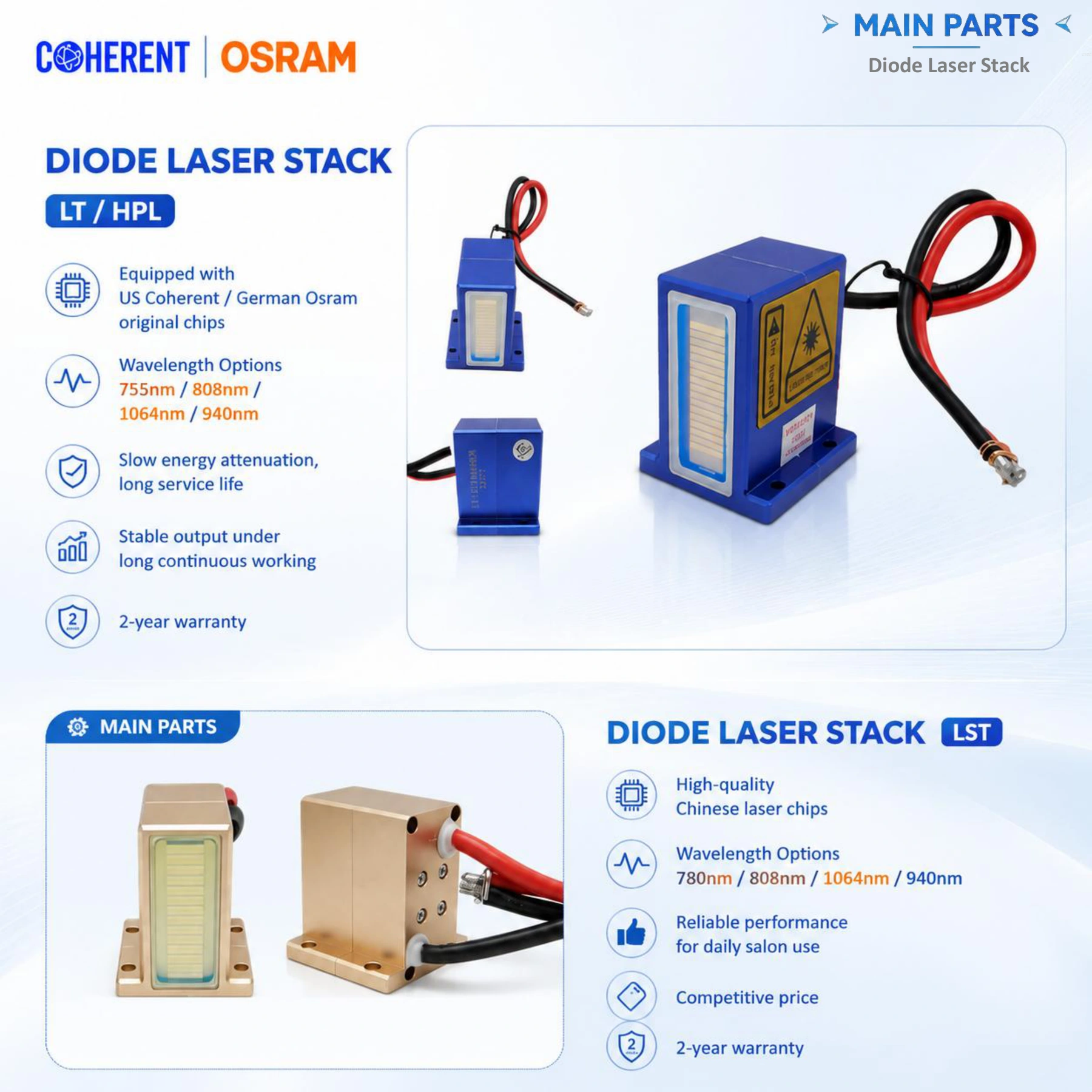

Diode Laser Stack
Catalog page 6
- Chips
- US Coherent / German Osram original chips
- Wavelength Options
- 755nm / 808nm / 1064nm / 940nm
- performance claims
- Slow energy attenuation, long service life; stable output under long continuous working
- warranty
- 2-year warranty; detailed terms not supplied
Diode Laser Stack
Catalog page 6
- Chips
- Chinese laser chips
- Wavelength Options
- 780nm / 808nm / 1064nm / 940nm
- description
- Reliable performance for daily salon use; competitive price
- warranty
- 2-year warranty; detailed terms not supplied

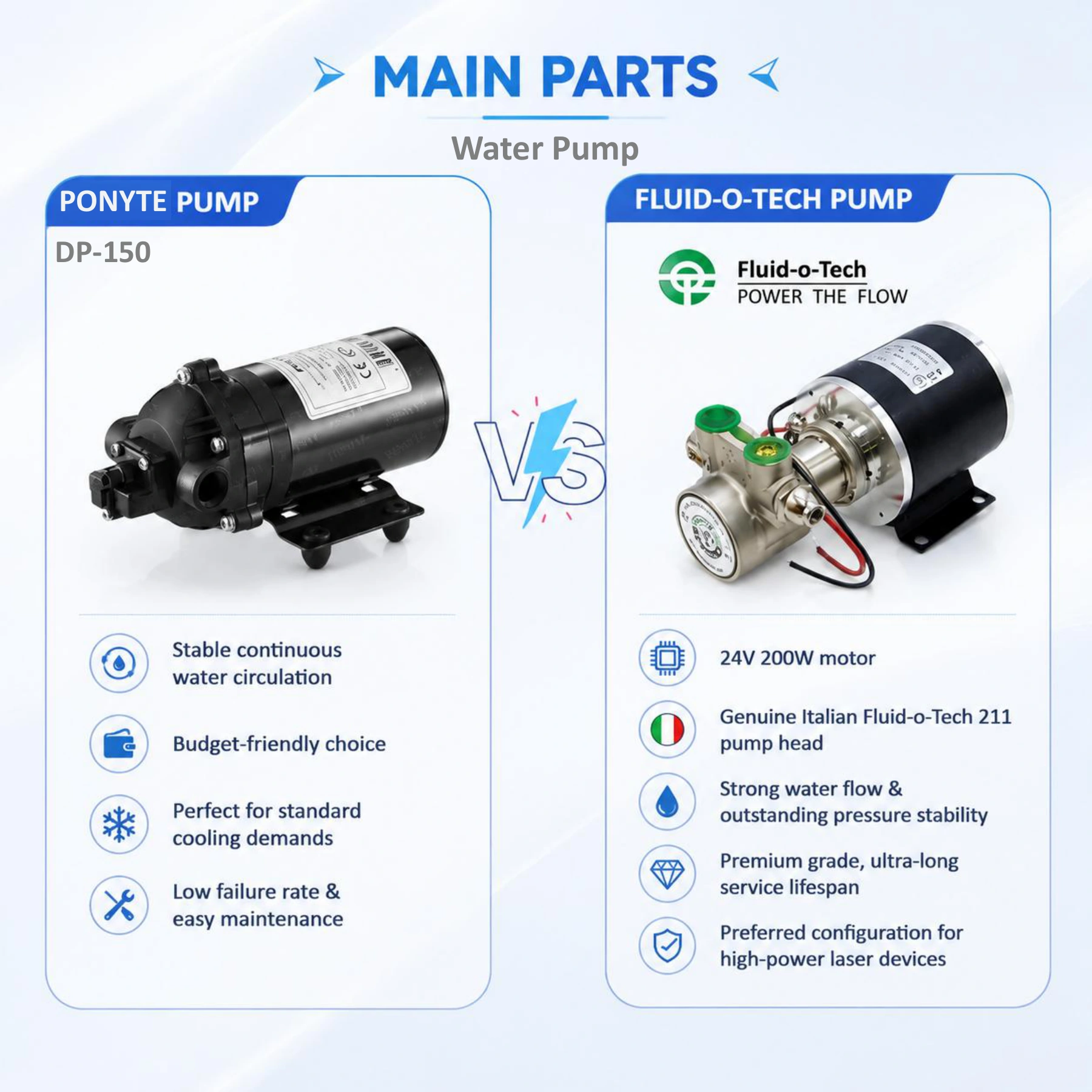

PONYTE Pump
Catalog page 7
- description
- Stable continuous water circulation; budget-friendly choice; perfect for standard cooling demands; low failure rate & easy maintenance
FLUID-O-TECH Pump
Catalog page 7
- Motor
- 24V 200W
- Pump head
- Genuine Italian Fluid-o-Tech 211 pump head (source)
- description
- Strong water flow & outstanding pressure stability; premium grade, ultra-long service lifespan; preferred configuration for high-power laser devices

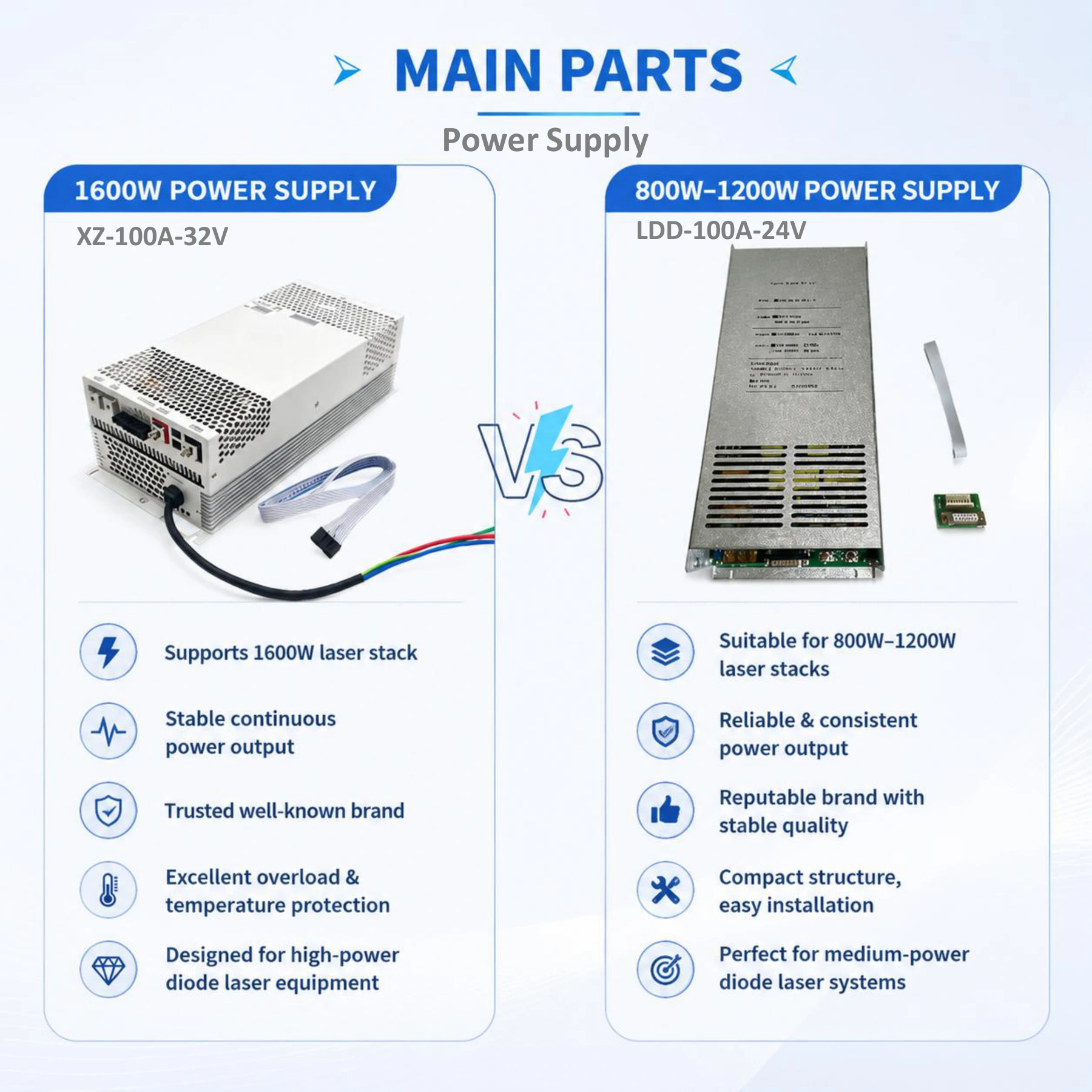

1600W Power Supply
Catalog page 8
- Source-listed stack rating
- 1600W
- description
- Stable continuous power output; trusted well-known brand; excellent overload & temperature protection; designed for high-power diode laser equipment
800W–1200W Power Supply
Catalog page 8
- Source-listed stack rating
- 800W–1200W
- description
- Reliable & consistent power output; reputable brand with stable quality; compact structure, easy installation; perfect for medium-power diode laser systems

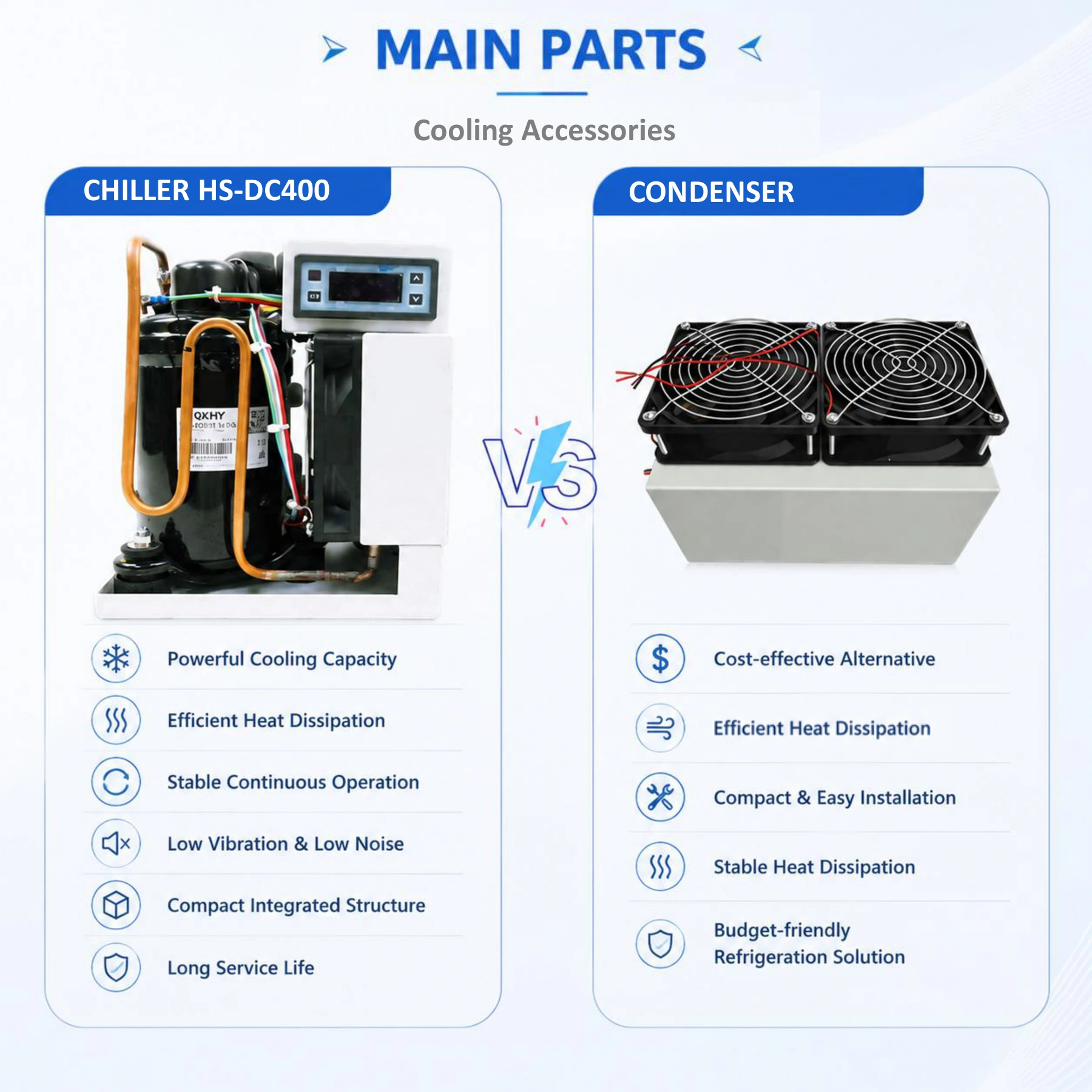

Chiller
Catalog page 9
- description
- Powerful cooling capacity; efficient heat dissipation; stable continuous operation; low vibration & low noise; compact integrated structure; long service life
Condenser
Catalog page 9
- description
- Cost-effective alternative; efficient heat dissipation; compact & easy installation; stable heat dissipation; budget-friendly refrigeration solution

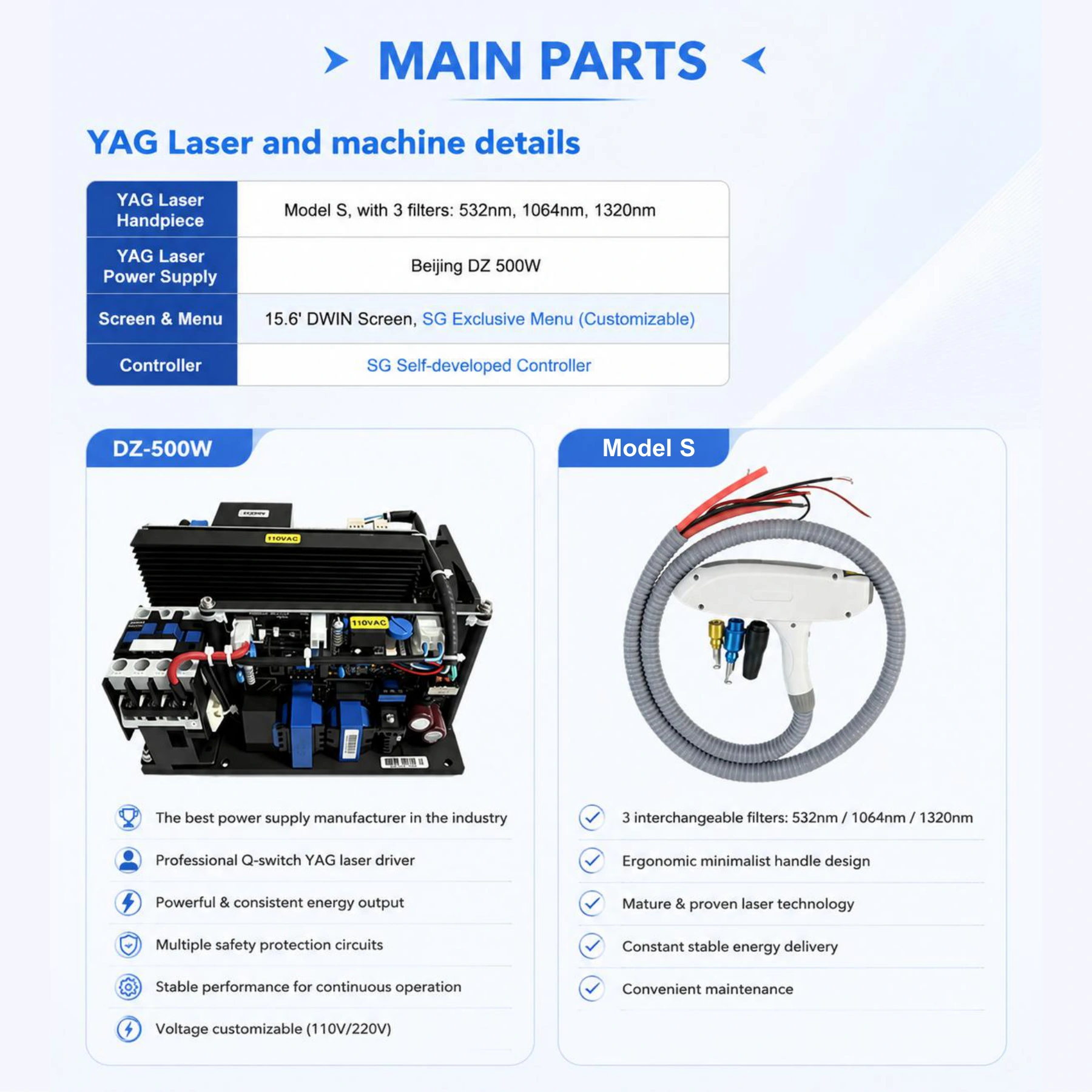

YAG Laser Power Supply
Catalog page 10
- Manufacturer / rating
- Beijing DZ 500W
- Driver
- Professional Q-switch YAG laser driver
- Voltage customizable
- 110V / 220V
- description
- The best power supply manufacturer in the industry; powerful & consistent energy output; multiple safety protection circuits; stable performance for continuous operation
YAG Laser Handpiece
Catalog page 10
- Interchangeable filters
- 532nm / 1064nm / 1320nm
- description
- Ergonomic minimalist handle design; mature & proven laser technology; constant stable energy delivery; convenient maintenance
Screen & Menu / Controller
Catalog page 10
- Screen & Menu
- 15.6-inch DWIN Screen, SG Exclusive Menu (Customizable)
- Controller
- SG Self-developed Controller
SG support
Catalog page 11
- Support and ordering notice
- Your Trusted Partner in Aesthetic Innovation. SG Team: Top University Graduates, High-End Beauty Machine Customization. 10,000+ Parts Available. After-Sales Support Experts. Professional & Reliable Global Partner. We specialize in machines, kits and spare parts of: IPL, SHR, Nd YAG, Diode, CO2, Picosecond Lasers, EMS, HIFU, Cavitation Devices. Please scan the QR code to contact our multilingual sales managers and technical support via WhatsApp, WeChat, Telegram or Email. All buyers must contact us before placing orders and verify our pre-shipment photos to prevent mismatched goods!
Specifications reproduce the catalog values. Confirm the exact configuration before ordering. Any listed prices are catalog reference quotations; current validity, taxes and shipping require confirmation.
