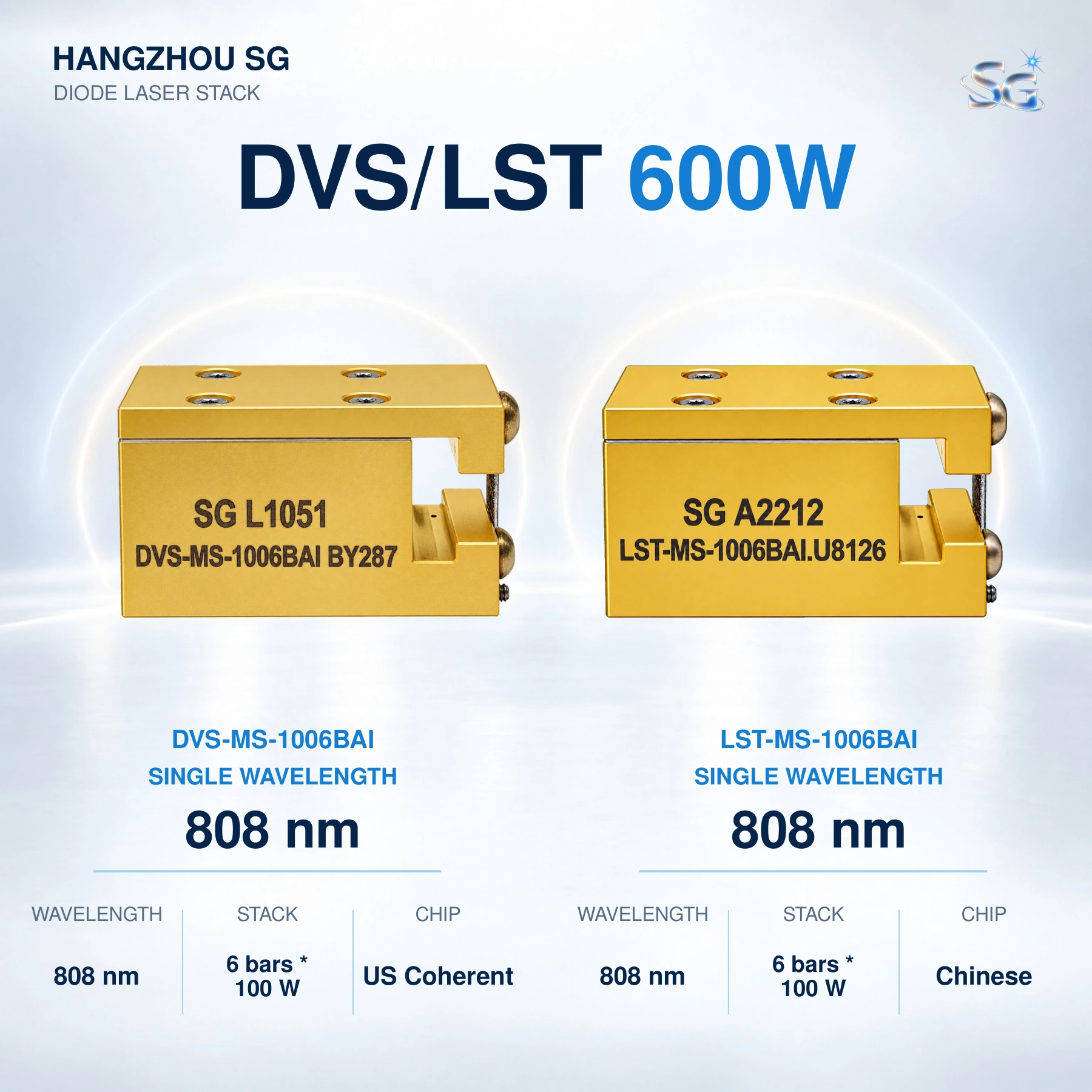

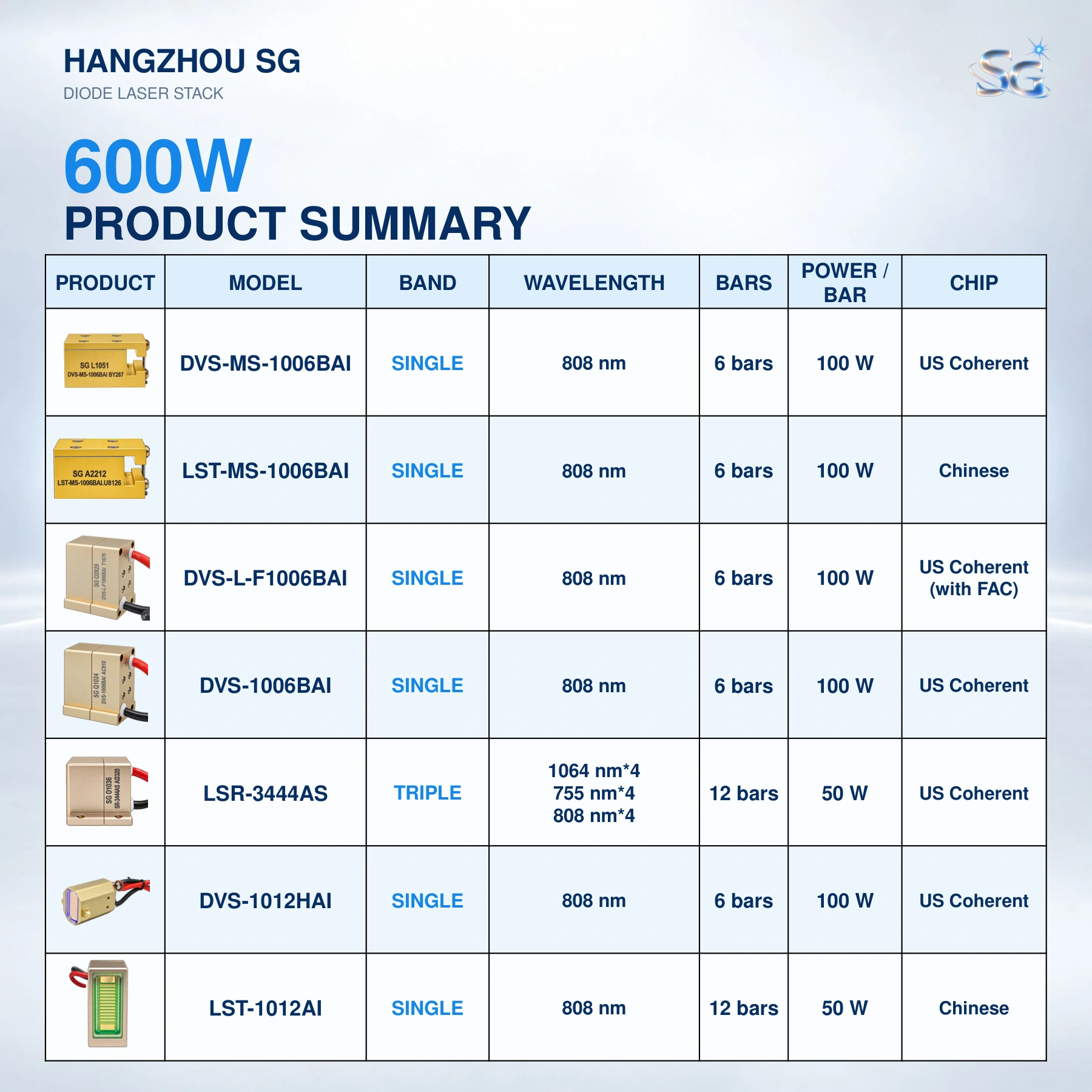

DVS-MS-1006BAI
Catalog page 4
- Wavelength / bars
- 808 nm
- Stack
- 6 bars × 100 W
- Chip
- US Coherent

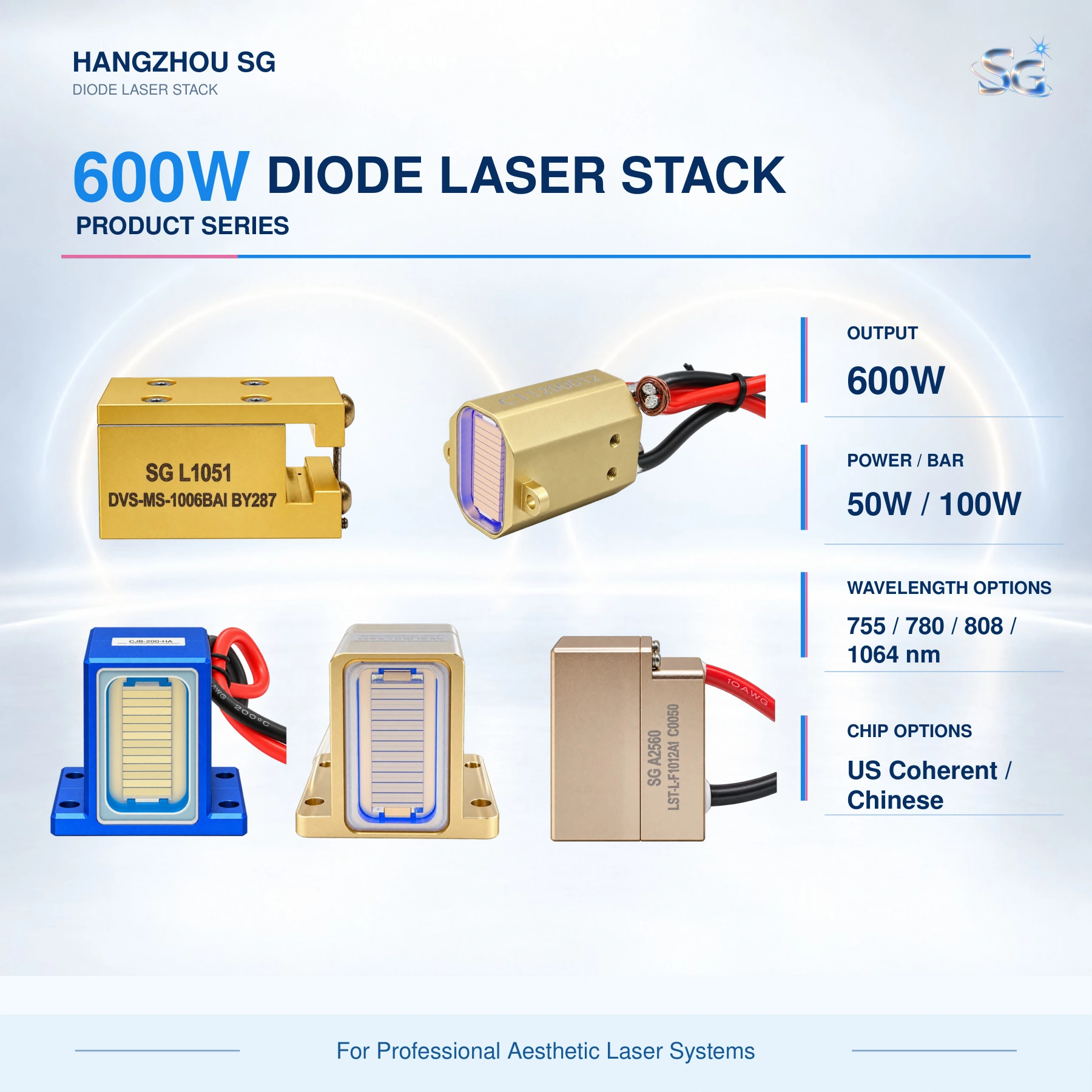

600W Diode Laser Stacks
SERIES CATALOG
600W diode laser stacks
For professional aesthetic laser systems.
Prepare an inquiry for this configuration
Copy these details and send them to your SG contact. This page does not submit an order or send a message.
Description & specifications
The original catalog below lists single- and multi-wavelength 600W diode laser stacks, 50 W and 100 W per bar, and US Coherent or Chinese chip options. Additional configurations above are listed separately; refer to the selected configuration and request confirmation before ordering.
Full catalog
Product names and specifications are also available as text below. The original catalog layout above is unchanged.
Product information and specifications (text)
LST-MS-1006BAI
Catalog page 4
- Wavelength / bars
- 808 nm
- Stack
- 6 bars × 100 W
- Chip
- Chinese

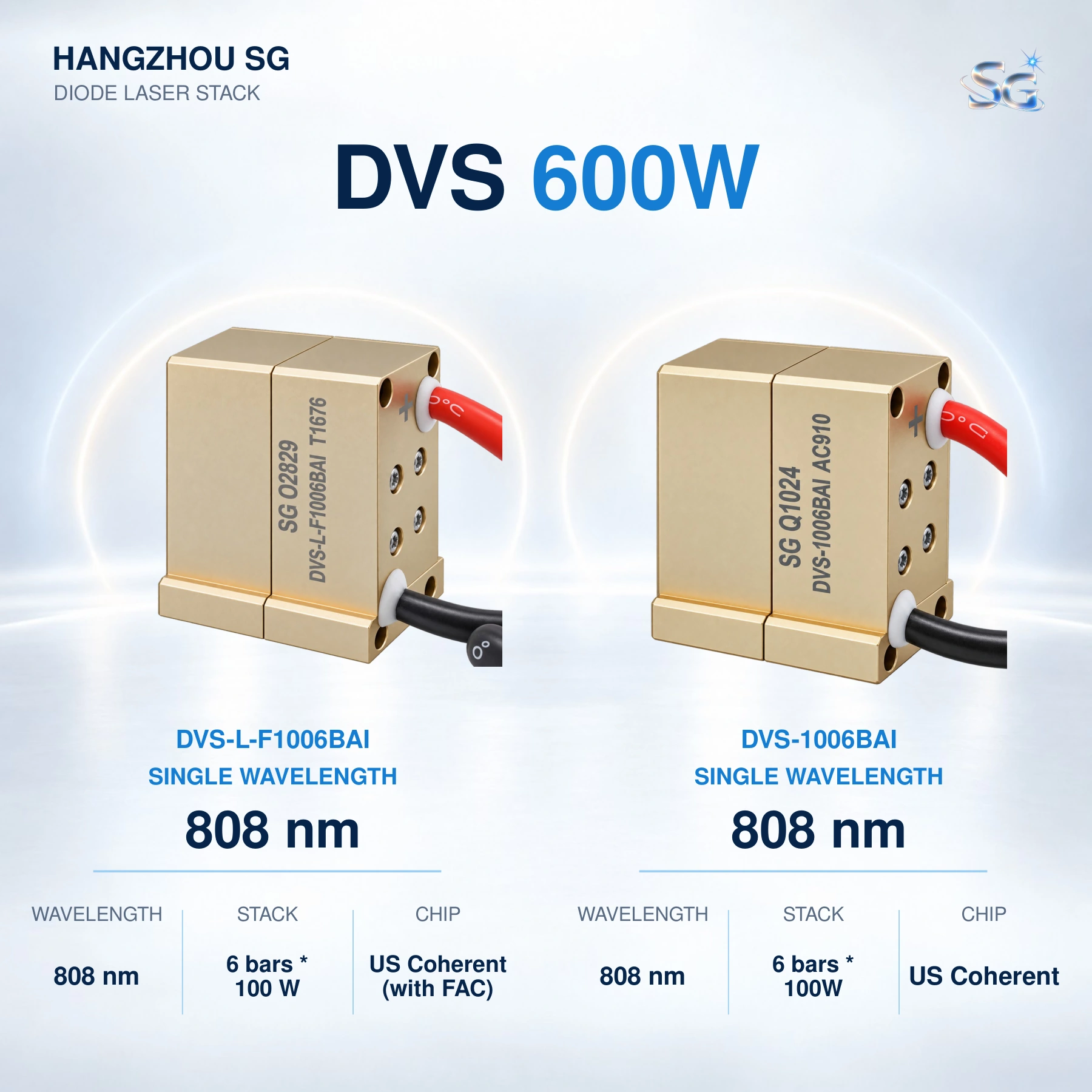

DVS-L-F1006BAI
Catalog page 5
- Wavelength / bars
- 808 nm
- Stack
- 6 bars × 100 W
- Chip
- US Coherent (with FAC)
DVS-1006BAI
Catalog page 5
- Wavelength / bars
- 808 nm
- Stack
- 6 bars × 100 W
- Chip
- US Coherent

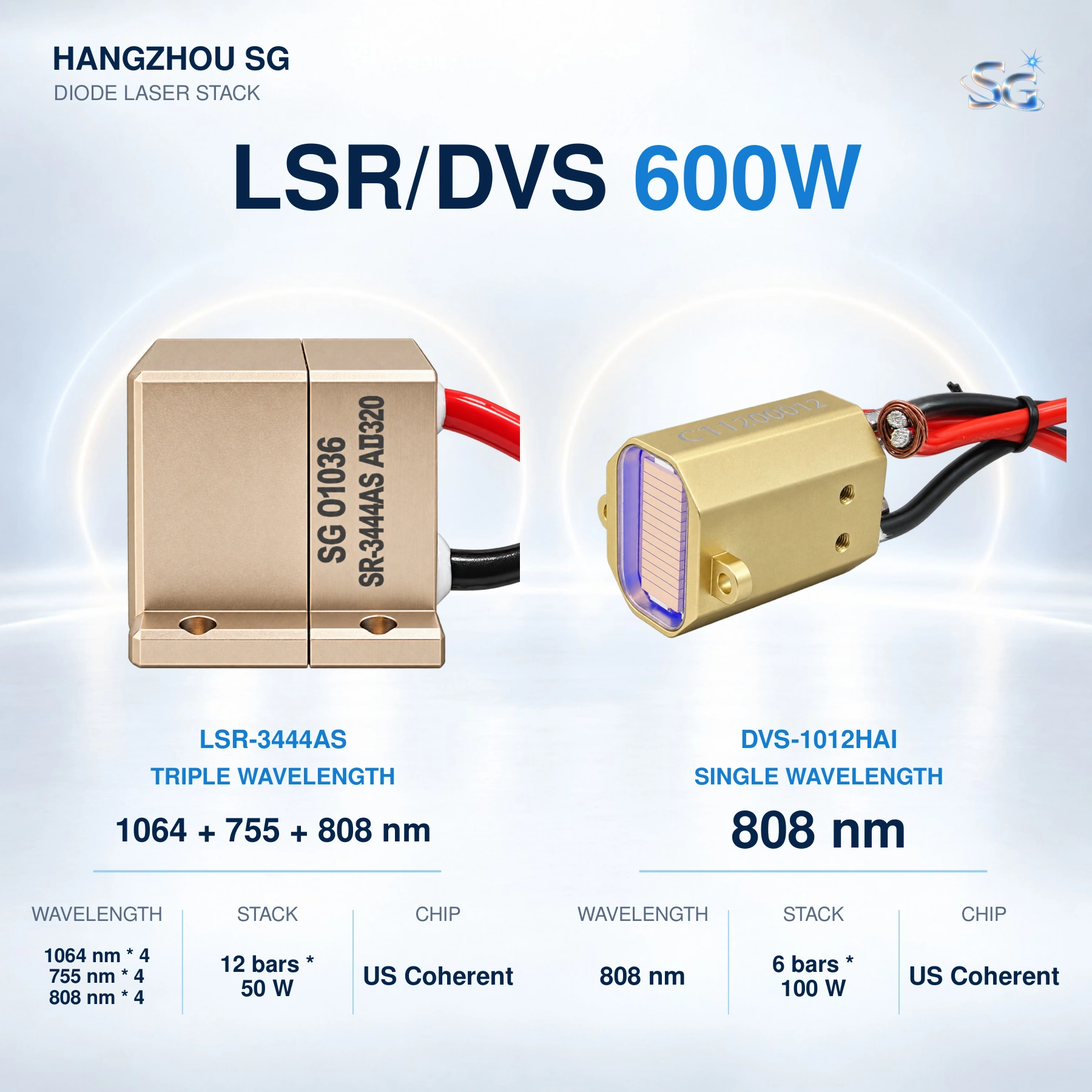

LSR-3444AS
Catalog page 6
- Wavelength / bars
- 1064 nm × 4 755 nm × 4 808 nm × 4
- Stack
- 12 bars × 50 W
- Chip
- US Coherent
DVS-1012HAI
Catalog page 6
- Wavelength / bars
- 808 nm
- Stack
- 6 bars × 100 W
- Chip
- US Coherent

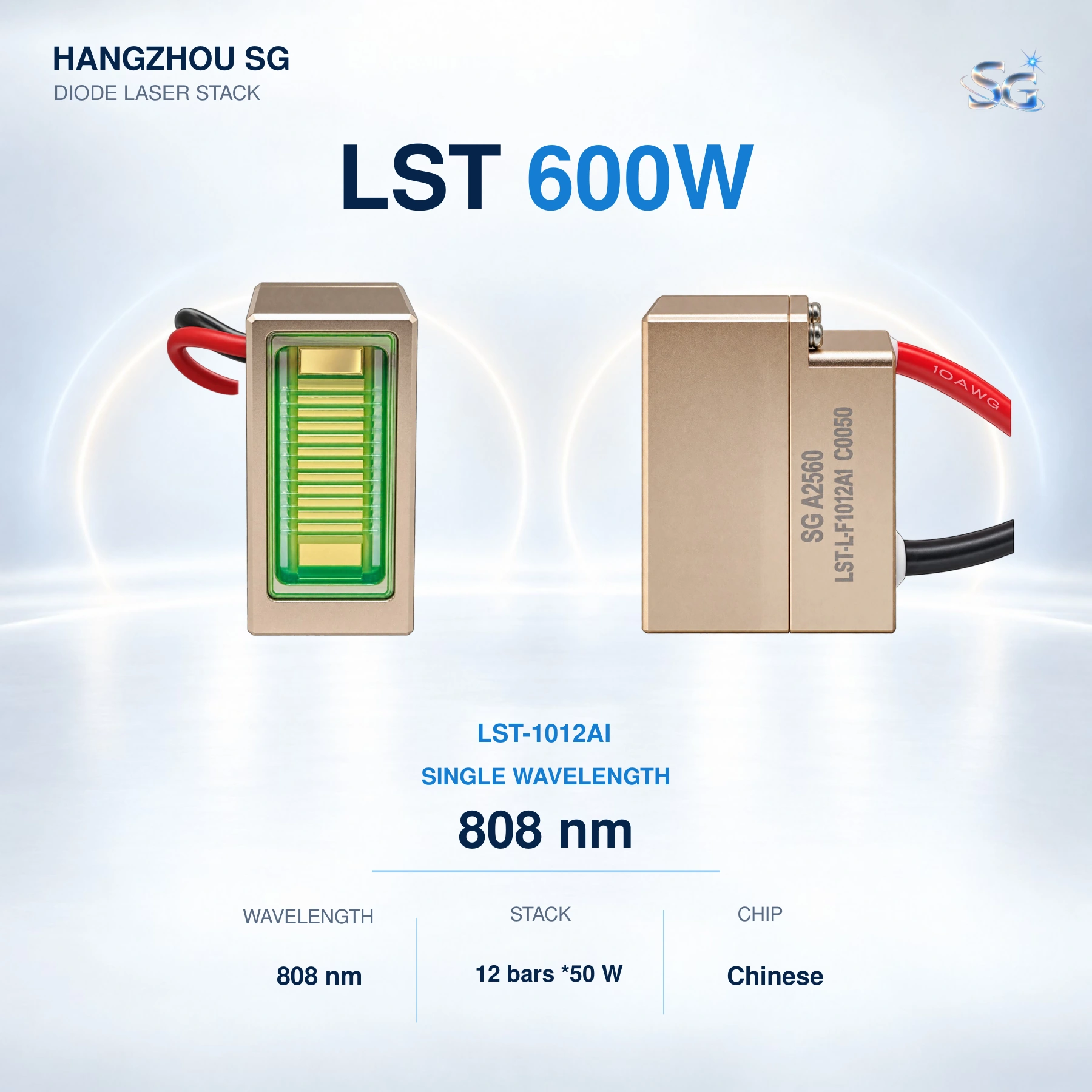

LST-1012AI
Catalog page 7
- Wavelength / bars
- 808 nm
- Stack
- 12 bars × 50 W
- Chip
- Chinese

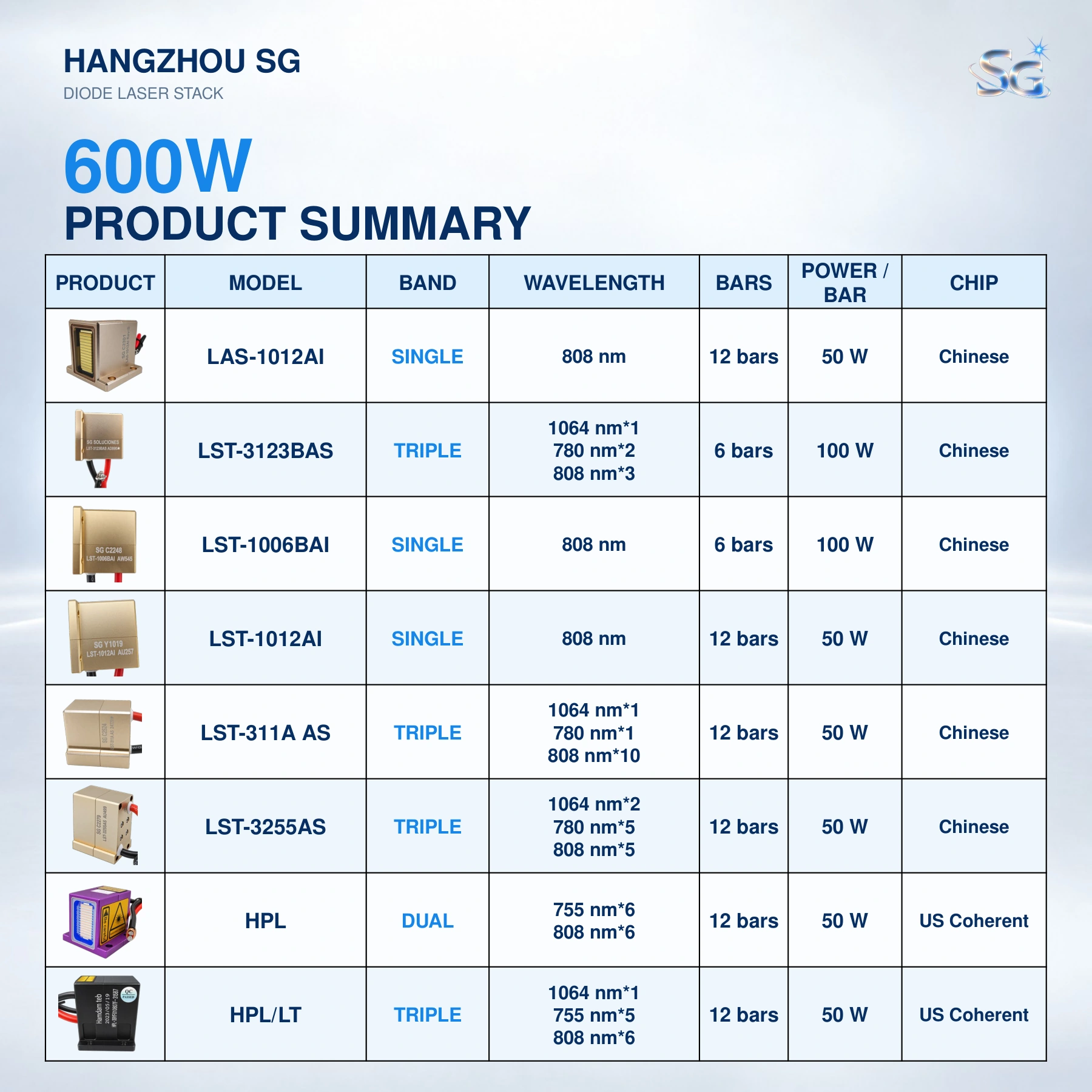

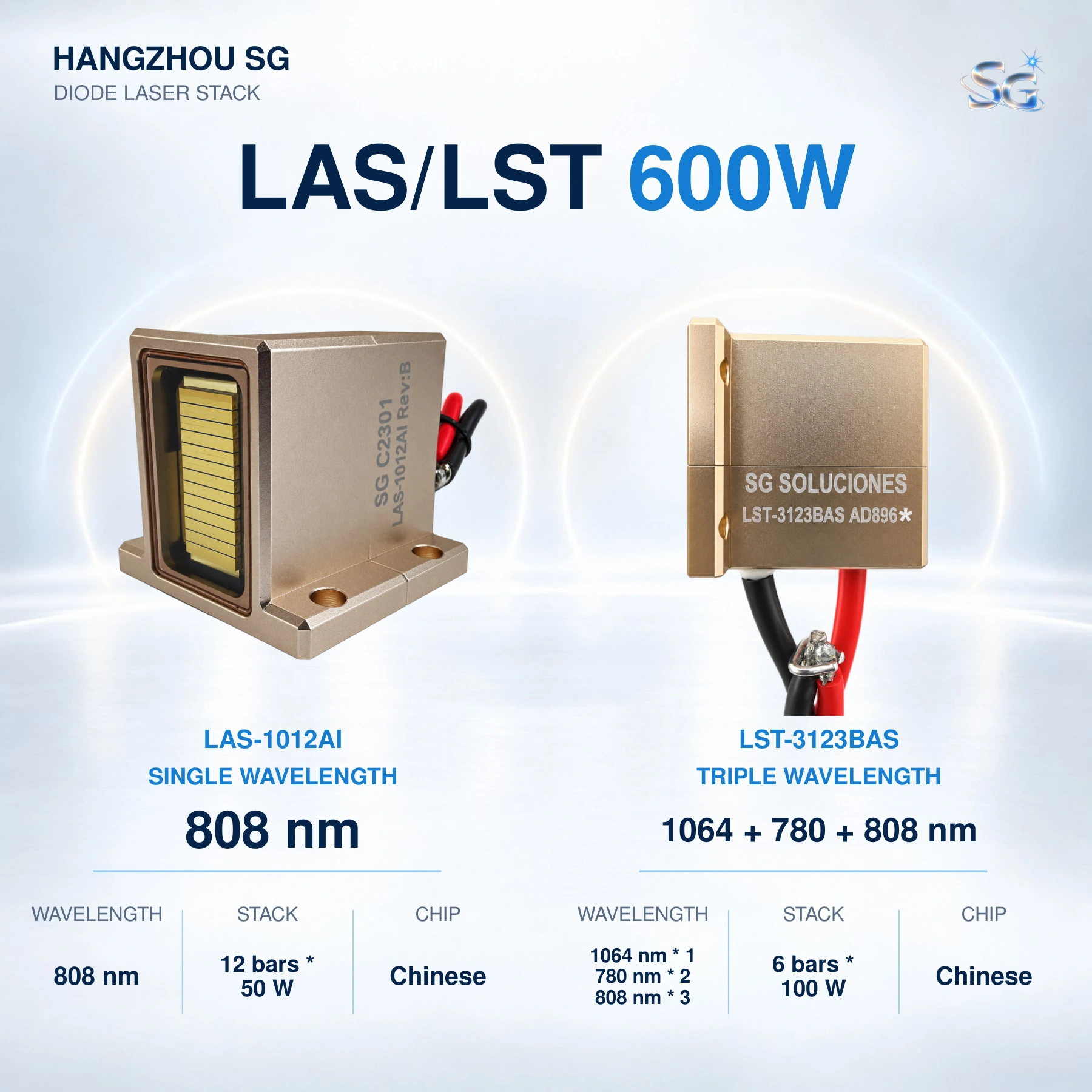

LAS-1012AI
Catalog page 9
- Wavelength / bars
- 808 nm
- Stack
- 12 bars × 50 W
- Chip
- Chinese
LST-3123BAS
Catalog page 9
- Wavelength / bars
- 1064 nm × 1 780 nm × 2 808 nm × 3
- Stack
- 6 bars × 100 W
- Chip
- Chinese

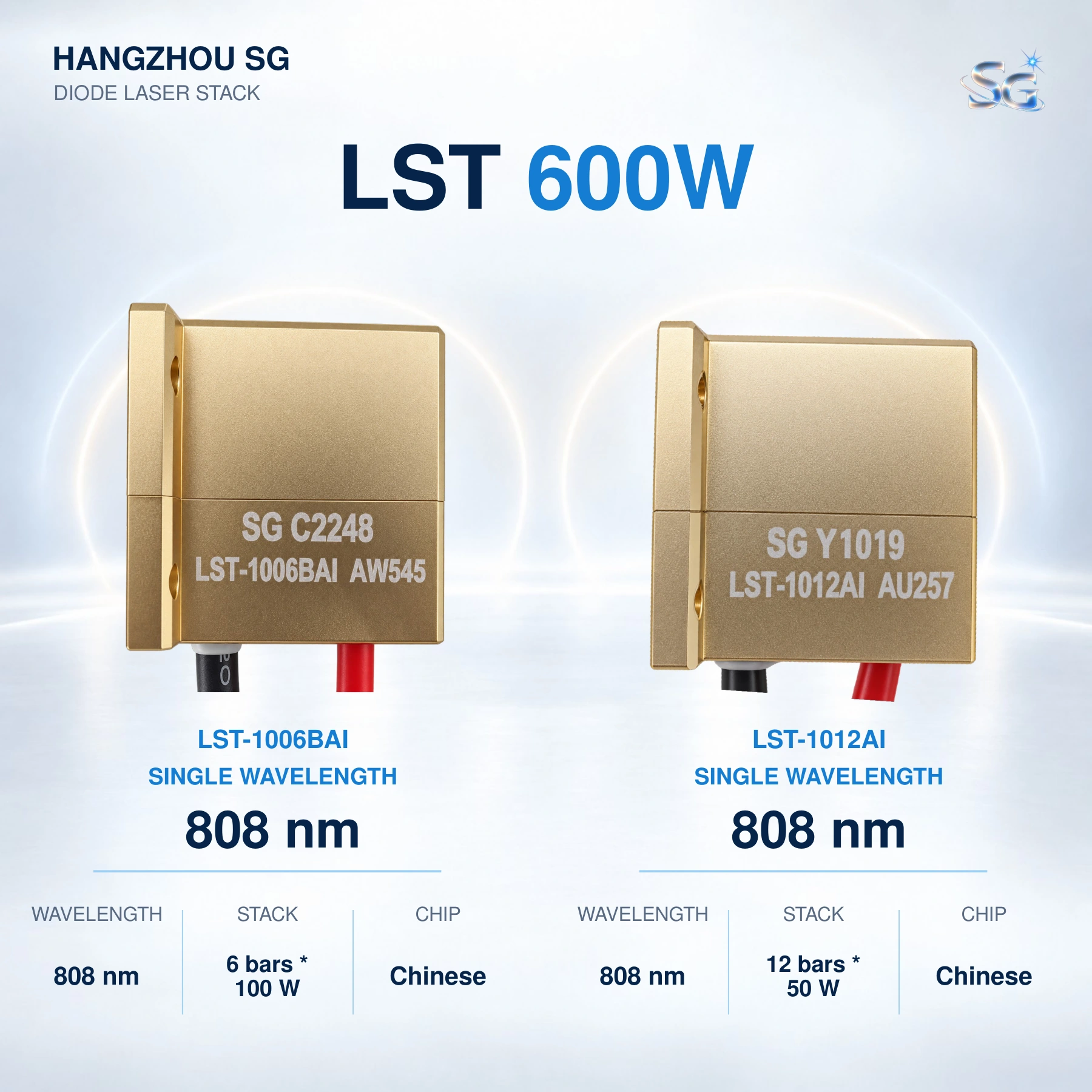

LST-1006BAI
Catalog page 10
- Wavelength / bars
- 808 nm
- Stack
- 6 bars × 100 W
- Chip
- Chinese
LST-1012AI
Catalog page 10
- Wavelength / bars
- 808 nm
- Stack
- 12 bars × 50 W
- Chip
- Chinese

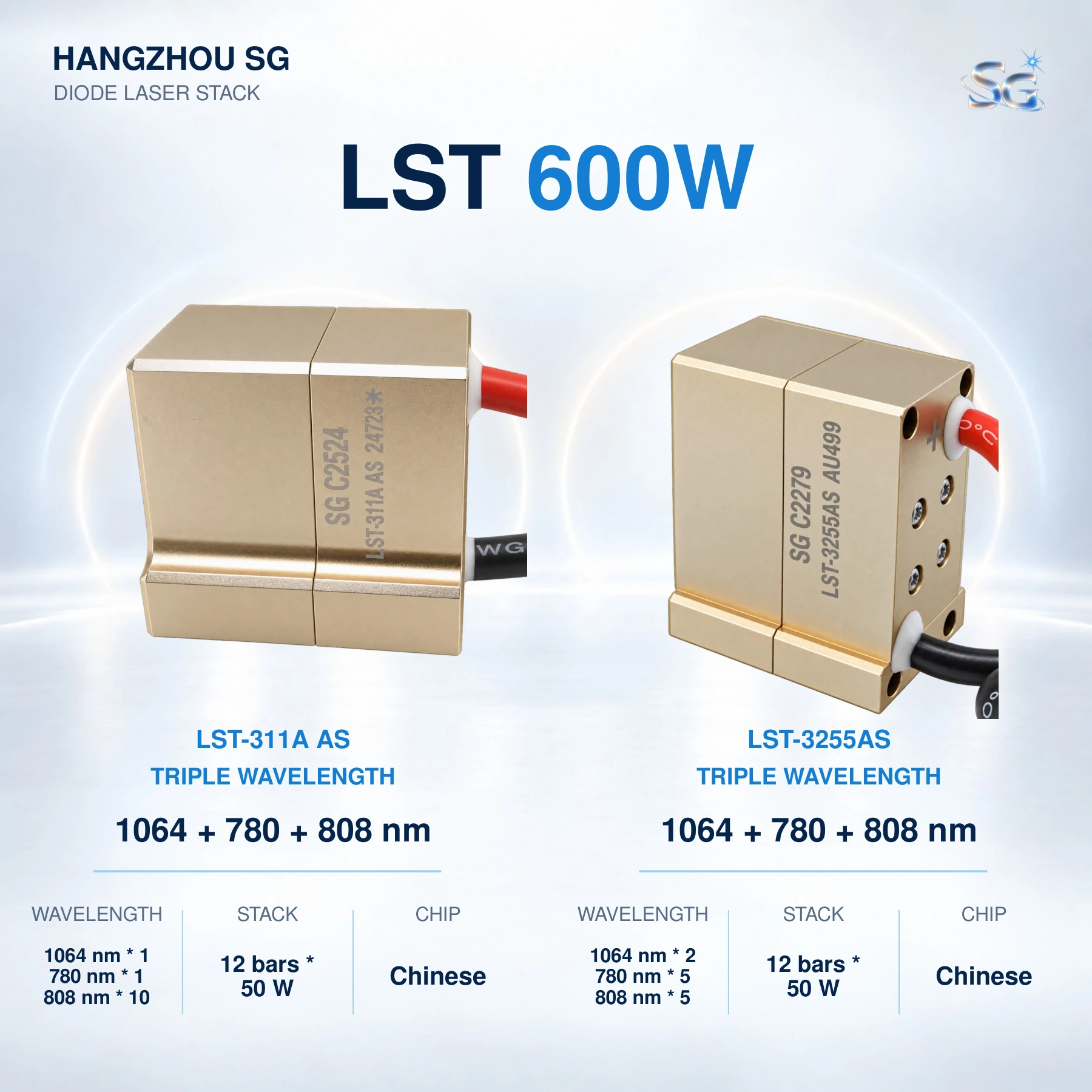

LST-311A AS
Catalog page 11
- Wavelength / bars
- 1064 nm × 1 780 nm × 1 808 nm × 10
- Stack
- 12 bars × 50 W
- Chip
- Chinese
LST-3255AS
Catalog page 11
- Wavelength / bars
- 1064 nm × 2 780 nm × 5 808 nm × 5
- Stack
- 12 bars × 50 W
- Chip
- Chinese

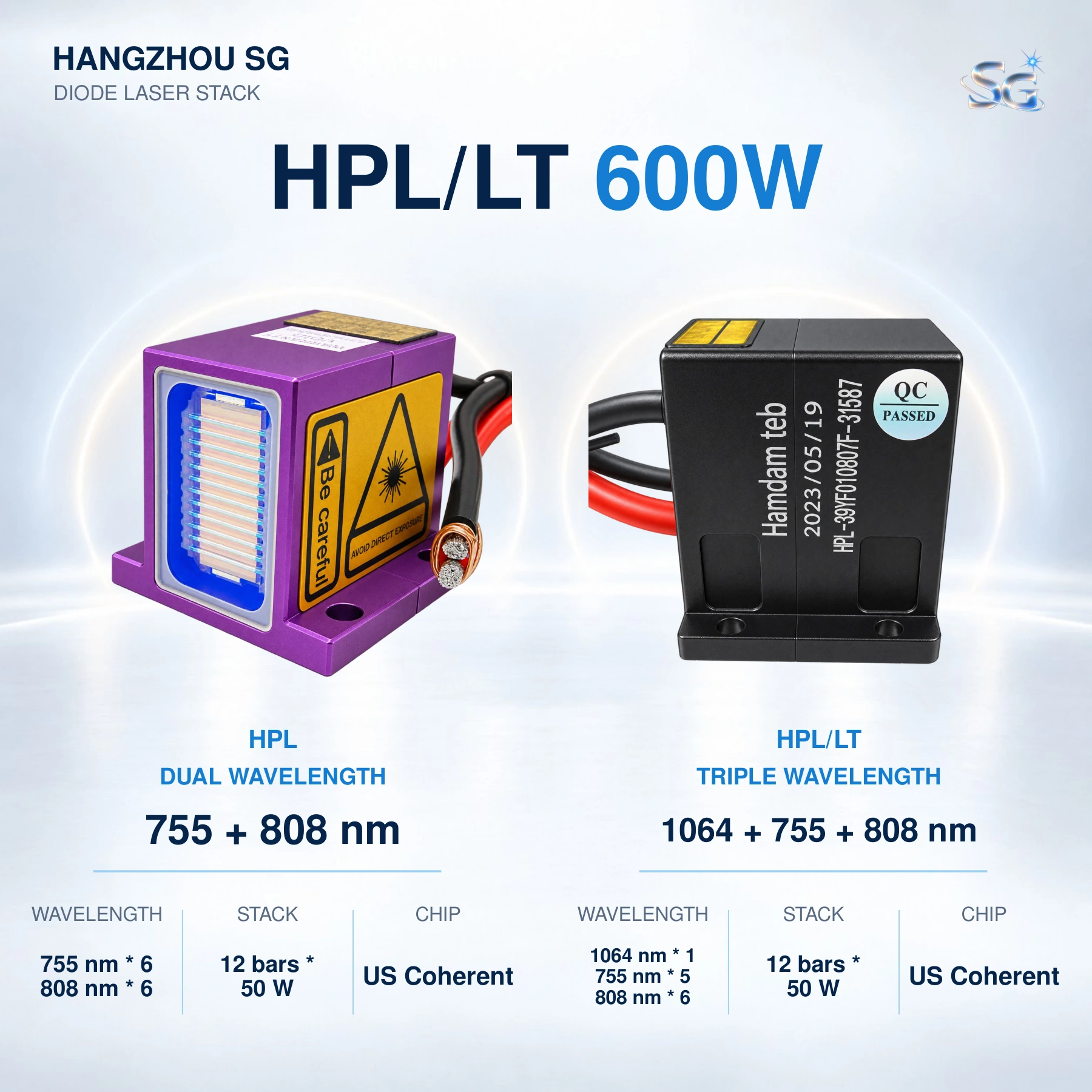

HPL
Catalog page 12
- Wavelength / bars
- 755 nm × 6 808 nm × 6
- Stack
- 12 bars × 50 W
- Chip
- US Coherent
HPL/LT
Catalog page 12
- Wavelength / bars
- 1064 nm × 1 755 nm × 5 808 nm × 6
- Stack
- 12 bars × 50 W
- Chip
- US Coherent

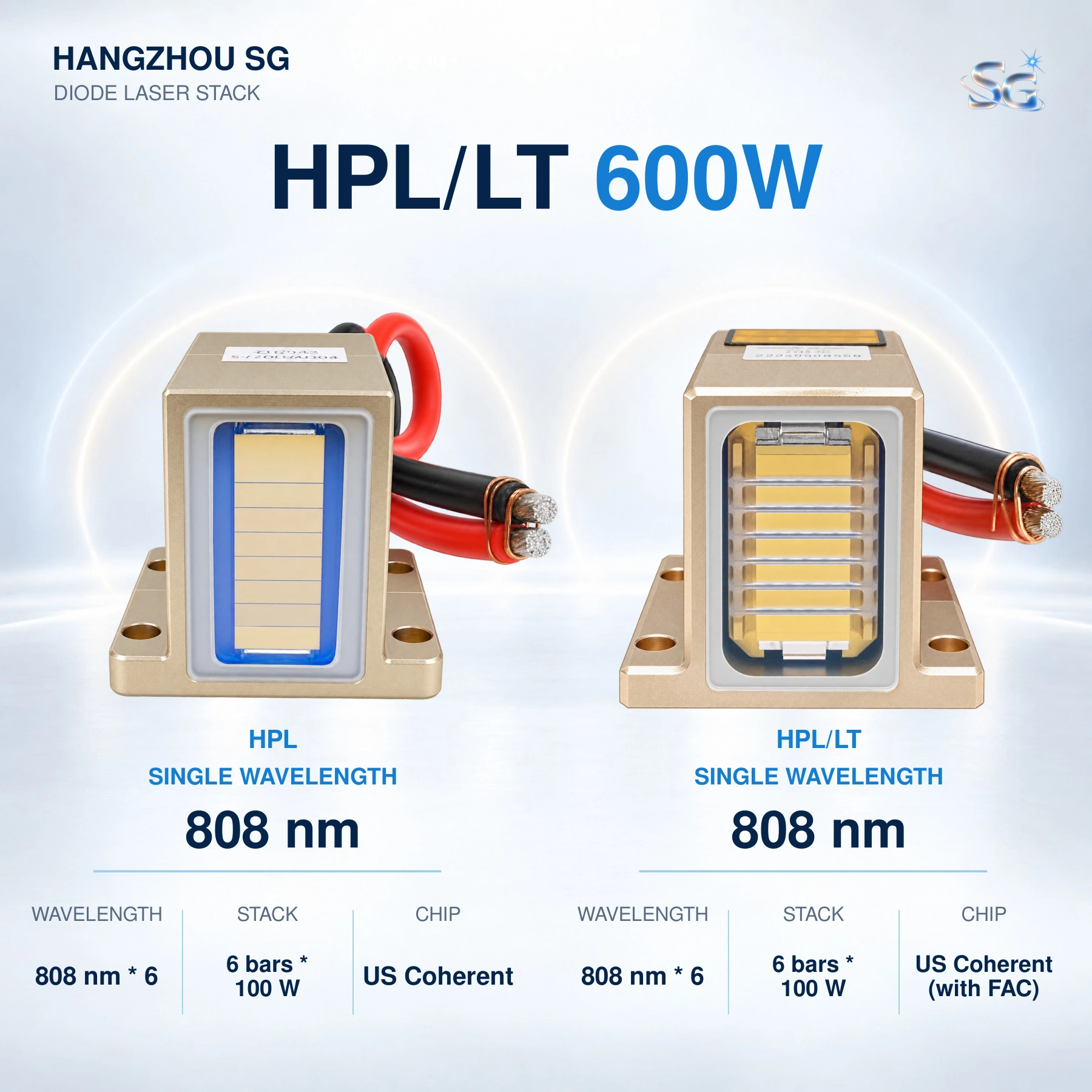

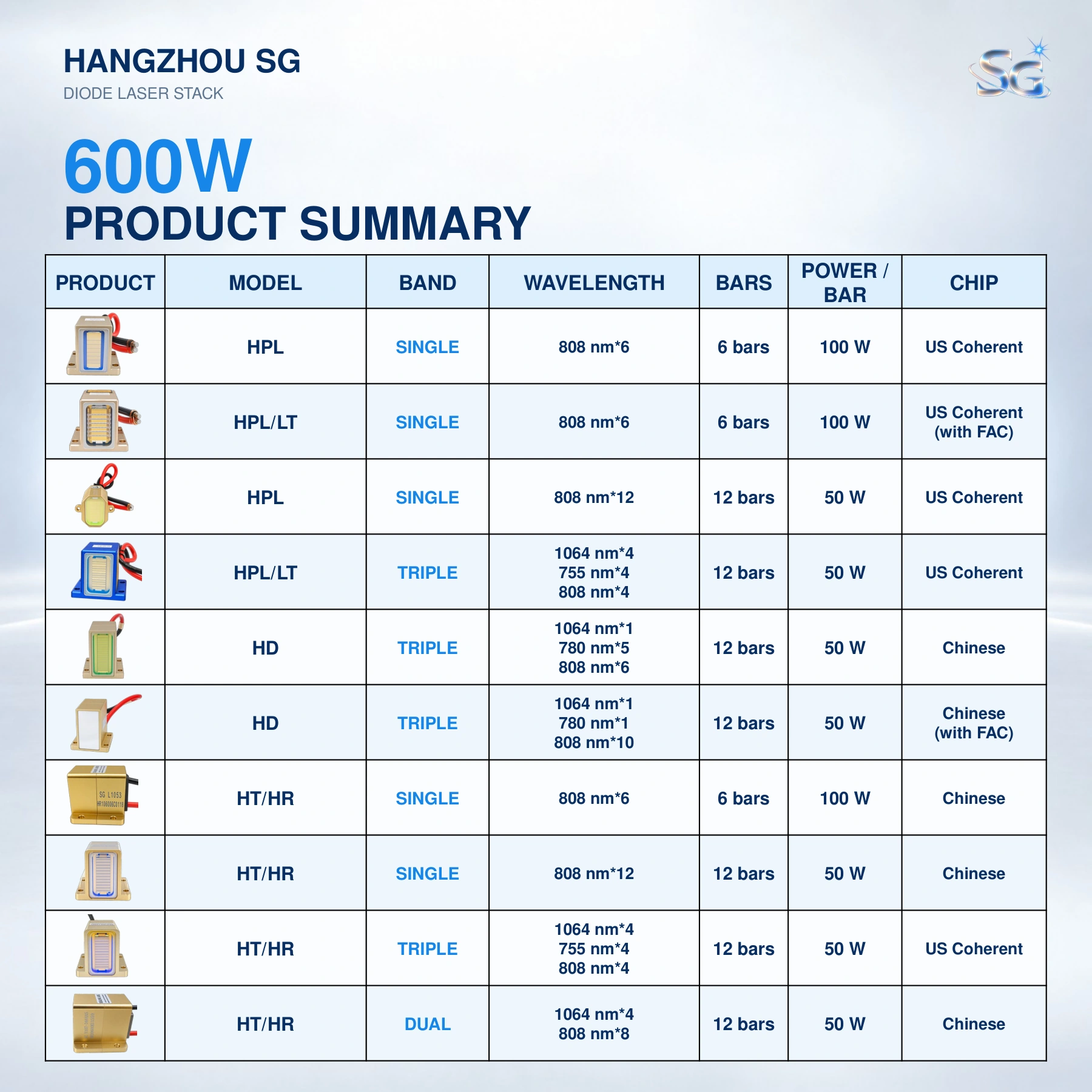

HPL
Catalog page 14
- Wavelength / bars
- 808 nm × 6
- Stack
- 6 bars × 100 W
- Chip
- US Coherent
HPL/LT
Catalog page 14
- Wavelength / bars
- 808 nm × 6
- Stack
- 6 bars × 100 W
- Chip
- US Coherent (with FAC)

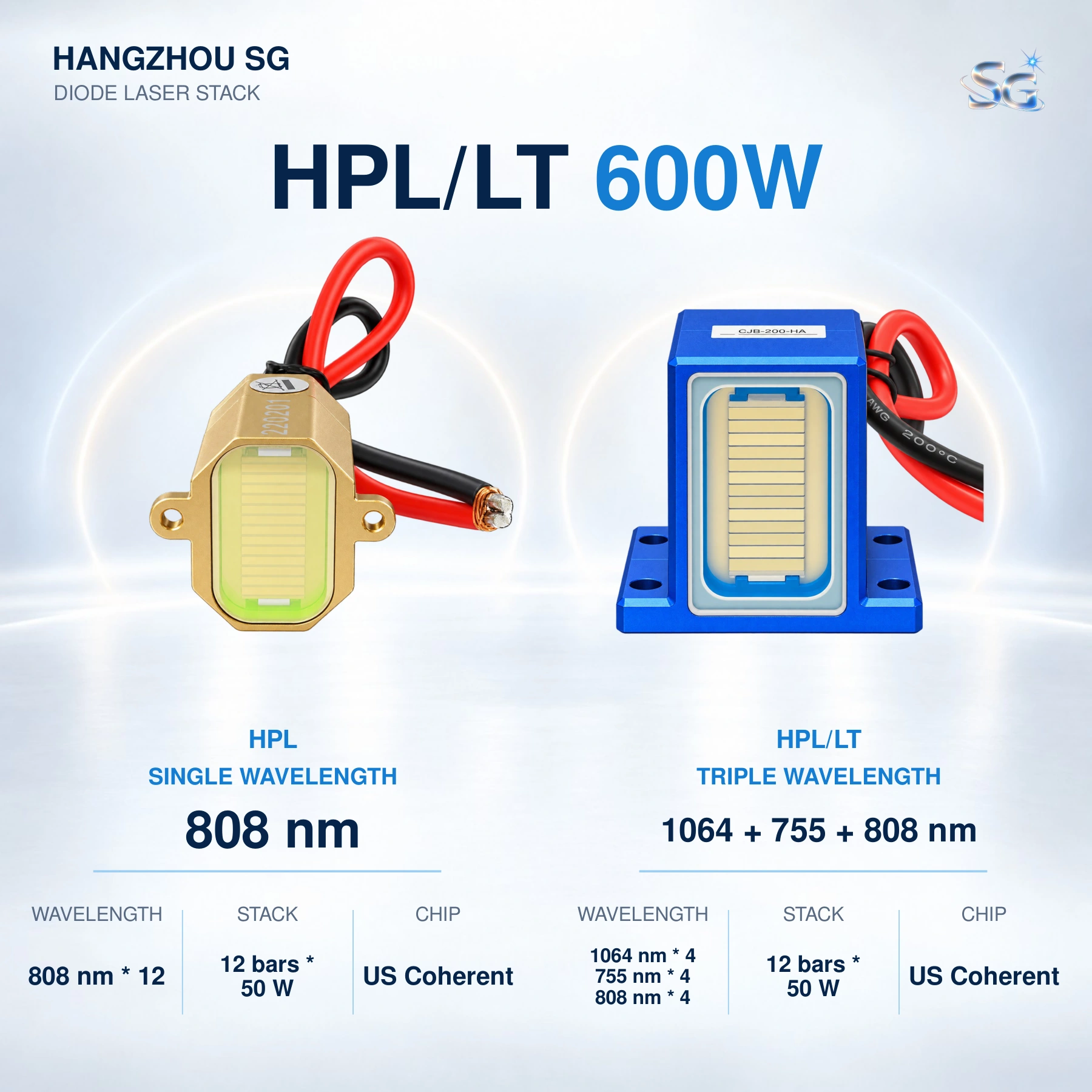

HPL
Catalog page 15
- Wavelength / bars
- 808 nm × 12
- Stack
- 12 bars × 50 W
- Chip
- US Coherent
HPL/LT
Catalog page 15
- Wavelength / bars
- 1064 nm × 4 755 nm × 4 808 nm × 4
- Stack
- 12 bars × 50 W
- Chip
- US Coherent

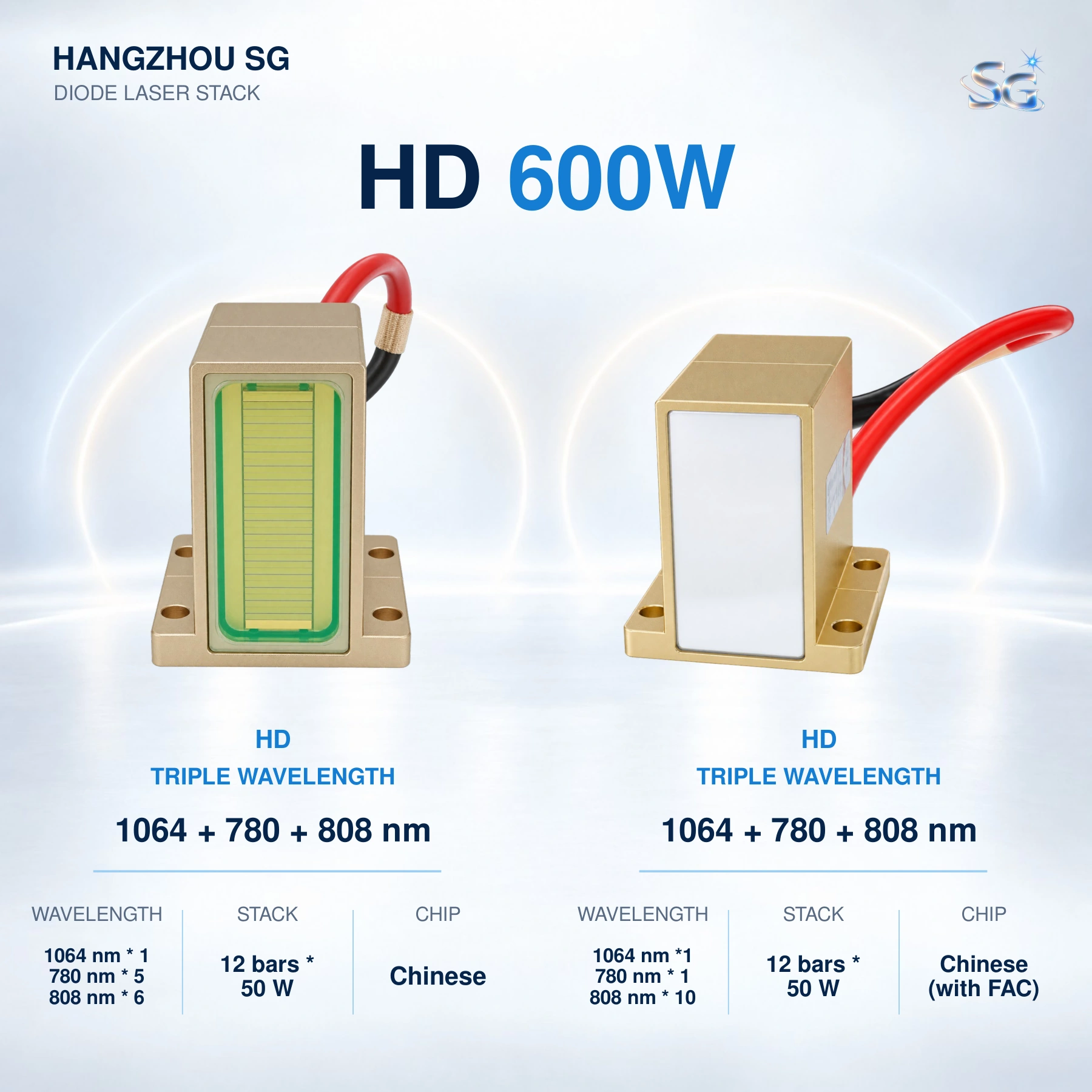

HD
Catalog page 16
- Wavelength / bars
- 1064 nm × 1 780 nm × 5 808 nm × 6
- Stack
- 12 bars × 50 W
- Chip
- Chinese
HD
Catalog page 16
- Wavelength / bars
- 1064 nm × 1 780 nm × 1 808 nm × 10
- Stack
- 12 bars × 50 W
- Chip
- Chinese (with FAC)

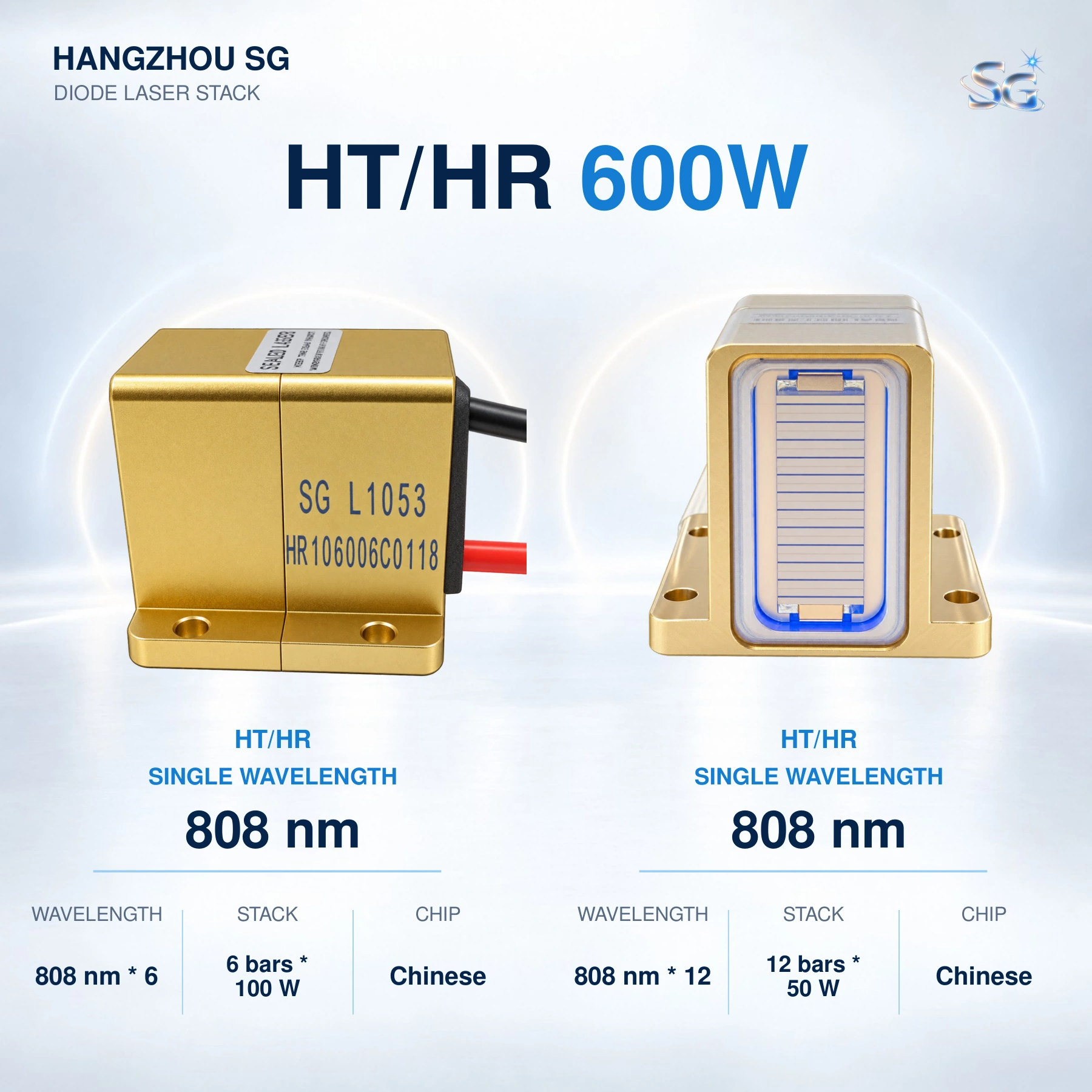

HT/HR
Catalog page 17
- Wavelength / bars
- 808 nm × 6
- Stack
- 6 bars × 100 W
- Chip
- Chinese
HT/HR
Catalog page 17
- Wavelength / bars
- 808 nm × 12
- Stack
- 12 bars × 50 W
- Chip
- Chinese

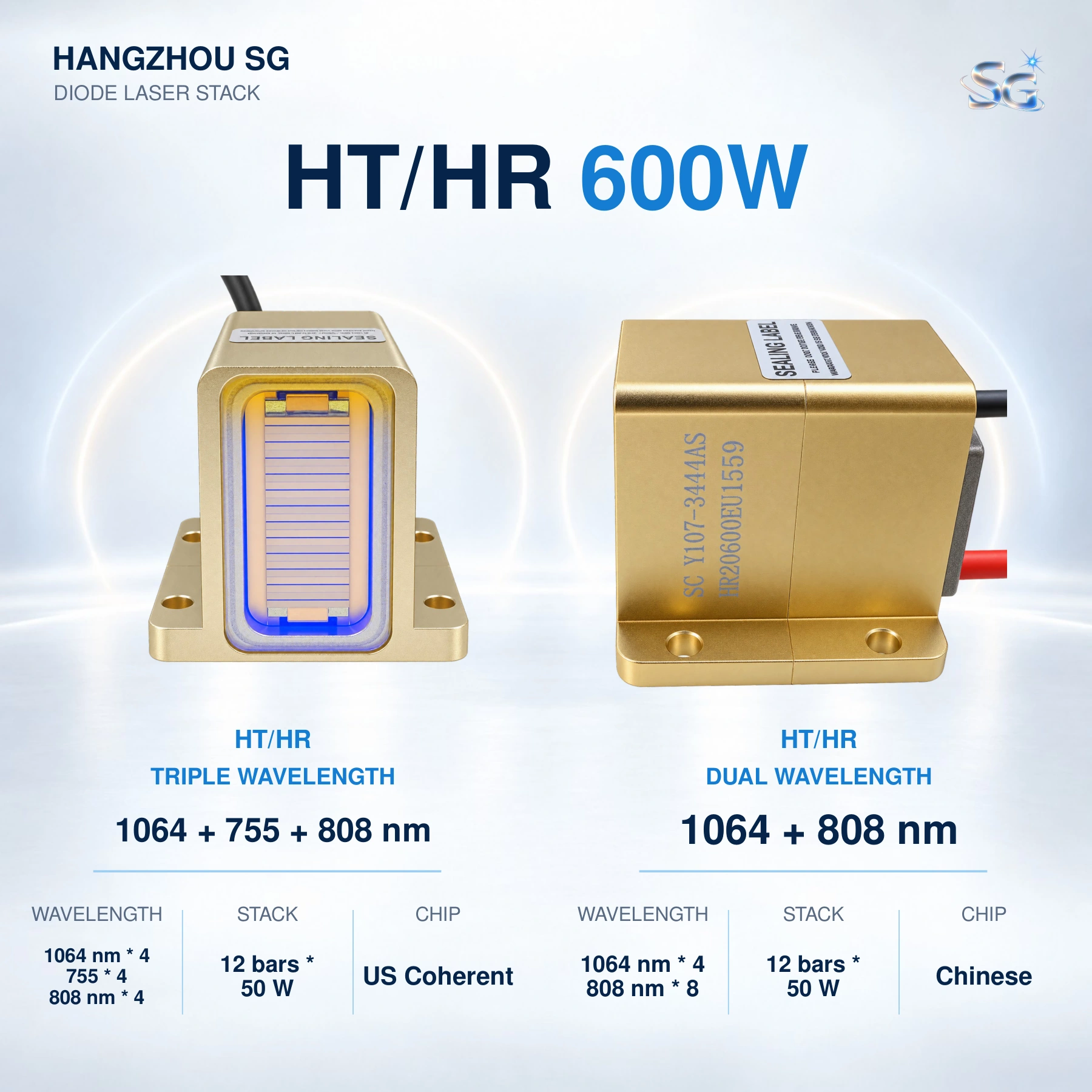

HT/HR
Catalog page 18
- Wavelength / bars
- 1064 nm × 4 755 nm × 4 808 nm × 4
- Stack
- 12 bars × 50 W
- Chip
- US Coherent
HT/HR
Catalog page 18
- Wavelength / bars
- 1064 nm × 4 808 nm × 8
- Stack
- 12 bars × 50 W
- Chip
- Chinese
Specifications reproduce the catalog values. Confirm the exact configuration before ordering. Any listed prices are catalog reference quotations; current validity, taxes and shipping require confirmation.
